10 | EPS 708 | Overview of EPS 708en

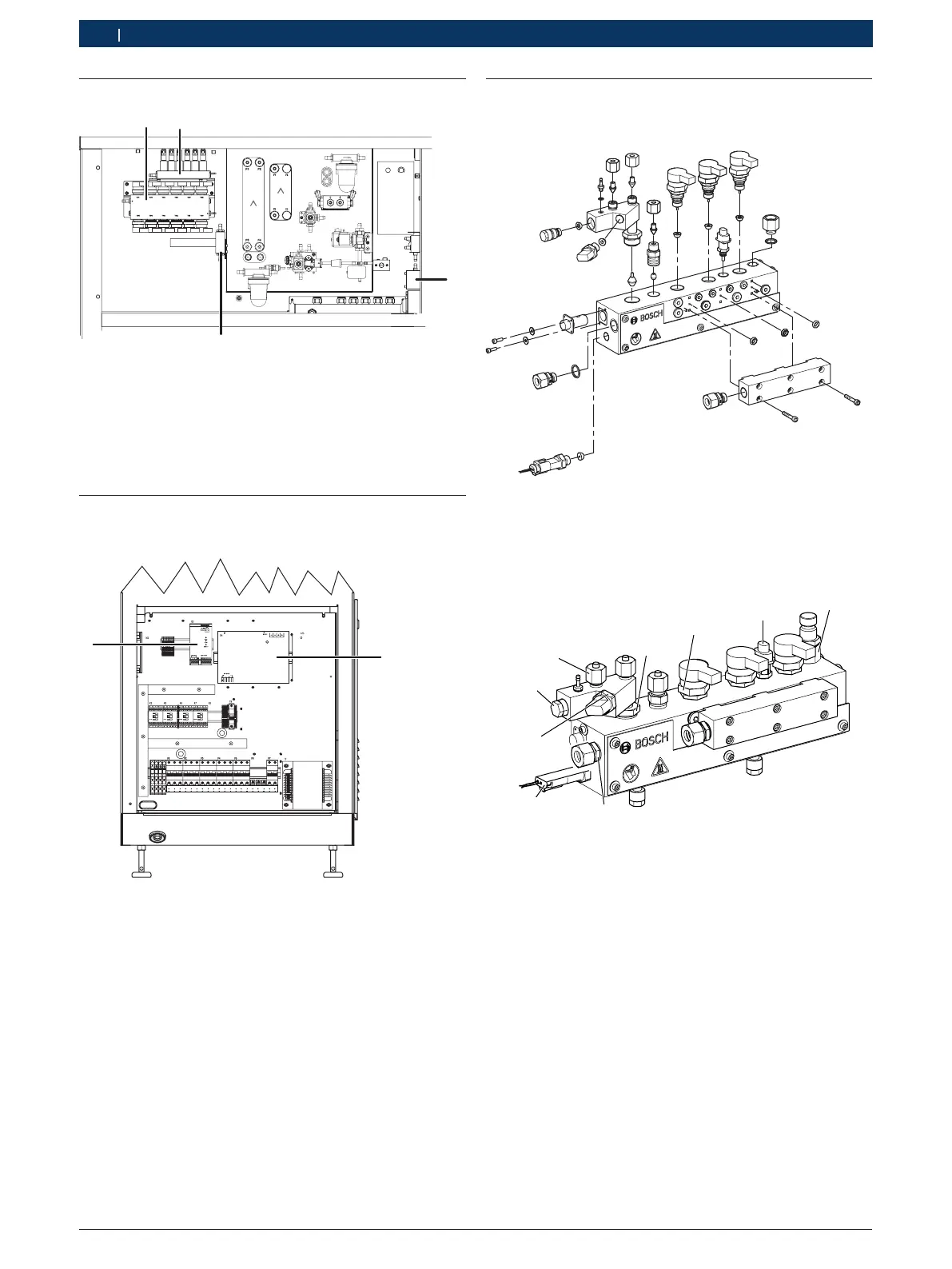

4.4 Overview of hydraulics chamber
458863-08_Ri
1 2
3
4
Fig. 10: Overview of hydraulics chamber
1 Solenoid valve block for injector delivery quantity
2 Solenoid valve block for injected return quantity
3 Quantity meter 1 687 234 011
4 Flow meter 1 687 234 013
4.5 Overview of electrical compartment,
side
458863-14_Ri
1
2
Fig. 11: Overview of electrical compartment, side
1 G4 15V power pack 1,687,320,116
2 G3 24V power pack 1 687 320 117
4.6 Overview of high-pressure rail
4.6.1 Components
458863-28_Ri
Fig. 12: High-pressure rail components
4.6.2 Tightening torques
85 +5 Nm
135 ±5 Nm
30 ±5 Nm
100 ±5 Nm
25 ±5 Nm
85 +5 Nm
85 +5 Nm
105 ±5 Nm
85 +5 Nm
458863-27_Pal
Fig. 13: High-pressure rail tightening torques
