8 | EPS 708 | Overview of EPS 708en
4. Overview of EPS 708
4.1 Test bench
3
4
5
7
10
12
13
1
458846-01_
Pal
X22
USB
6
11
2
9
X21
230V/m
ax.
200W
8

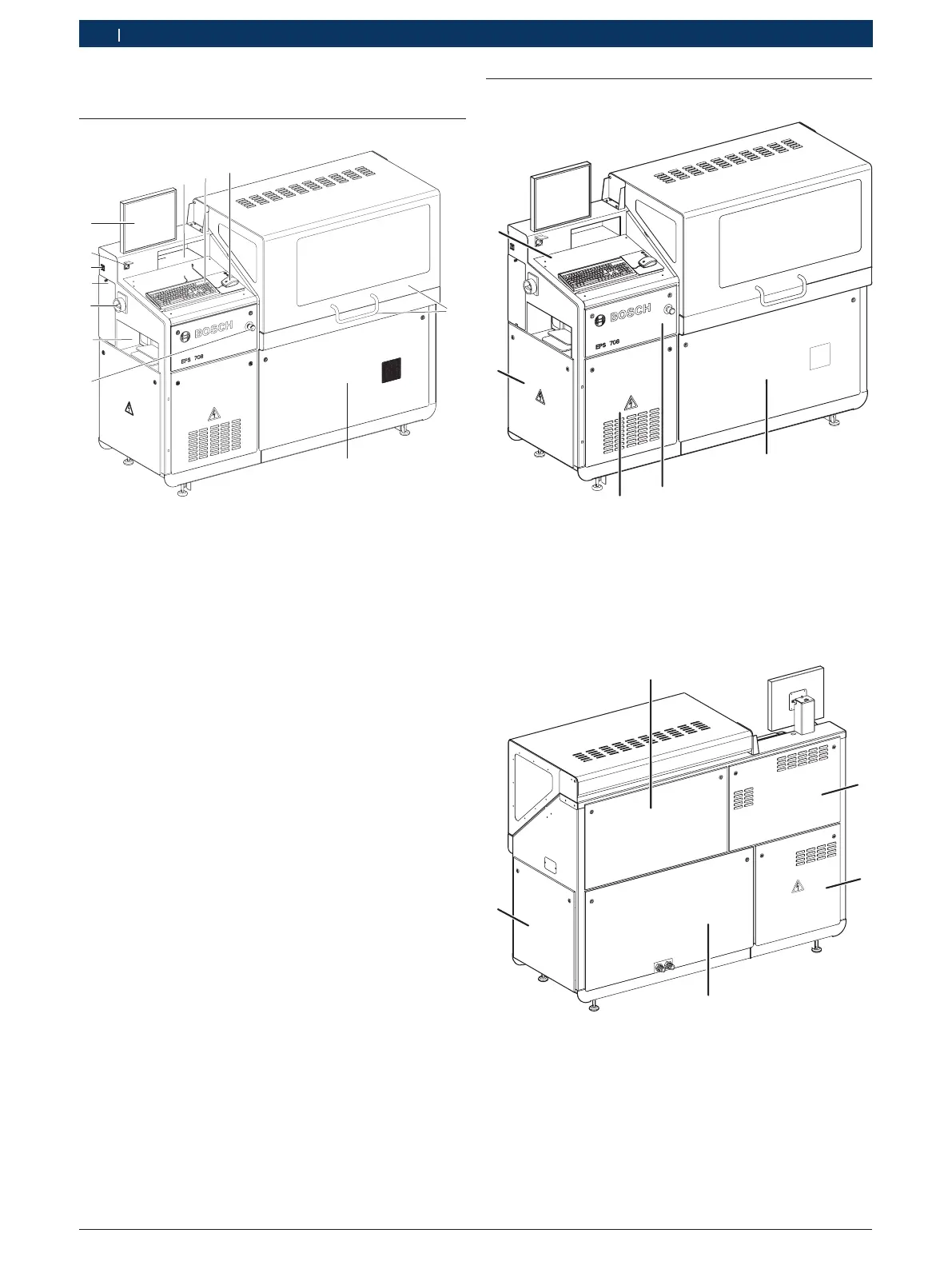

Fig. 5: Overview of EPS 708
1 Protective hood with handle
2 Cover of calibrating oil chamber
3 Emergency stop switch
4 Compartment for printer (special accessory)
5 Master switch
6 PC cover
7 Network connection X20 (LAN)
8 Electrical safety socket X21 (till FD 2012-12)
9 Screen
10 USB port
11 Storage compartment
12 Keyboard (special accessory)
13 Mouse
4.2 Covers
458863
-02
_Ri
1
X22
USB
X21
230V
/m
ax.
200
W
2
3
4
5
Fig. 6: Covers on front
1 Front cover of calibrating oil chamber
2 Front cover of electric motor compartment
3 Front cover of electrical compartment
4 Side cover of electrical compartment
5 Top cover of electric motor compartment
458863-01_Ri
1
2
3
4
5
Fig. 7: Covers on rear
1 Cover of hydraulics chamber
2 Cover of electronics compartment
3 Rear cover of electrical compartment
4 Rear cover of calibrating oil chamber
5 Side cover of calibrating oil chamber
