4.7 Overview of lubricating-oil supply unit
1
4
5
6
8
9
3
458859-1
7
2

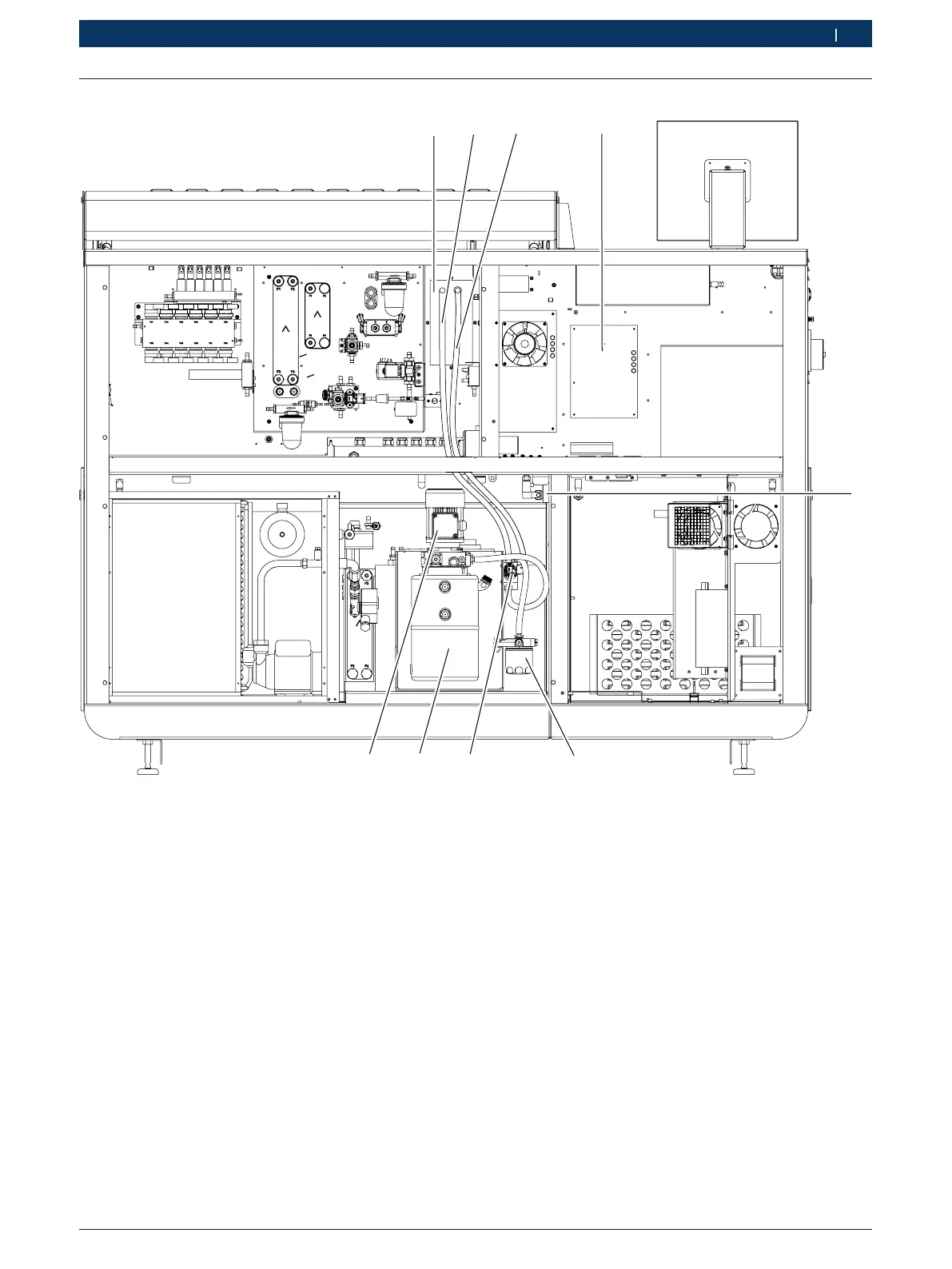

Fig. 14: EPS708 rear view
1 Cover plate
2 Lubricating oil intake pressure hose (700 mm)
3 Lubricating oil return pressure hose (850 mm)
4 Circuit board 1 688 400 453
5 Sealing gasket
6 Oil filter
7 Pressure and temperature sensor B19
8 Oil metering unit
9 Three-phase motor M11
