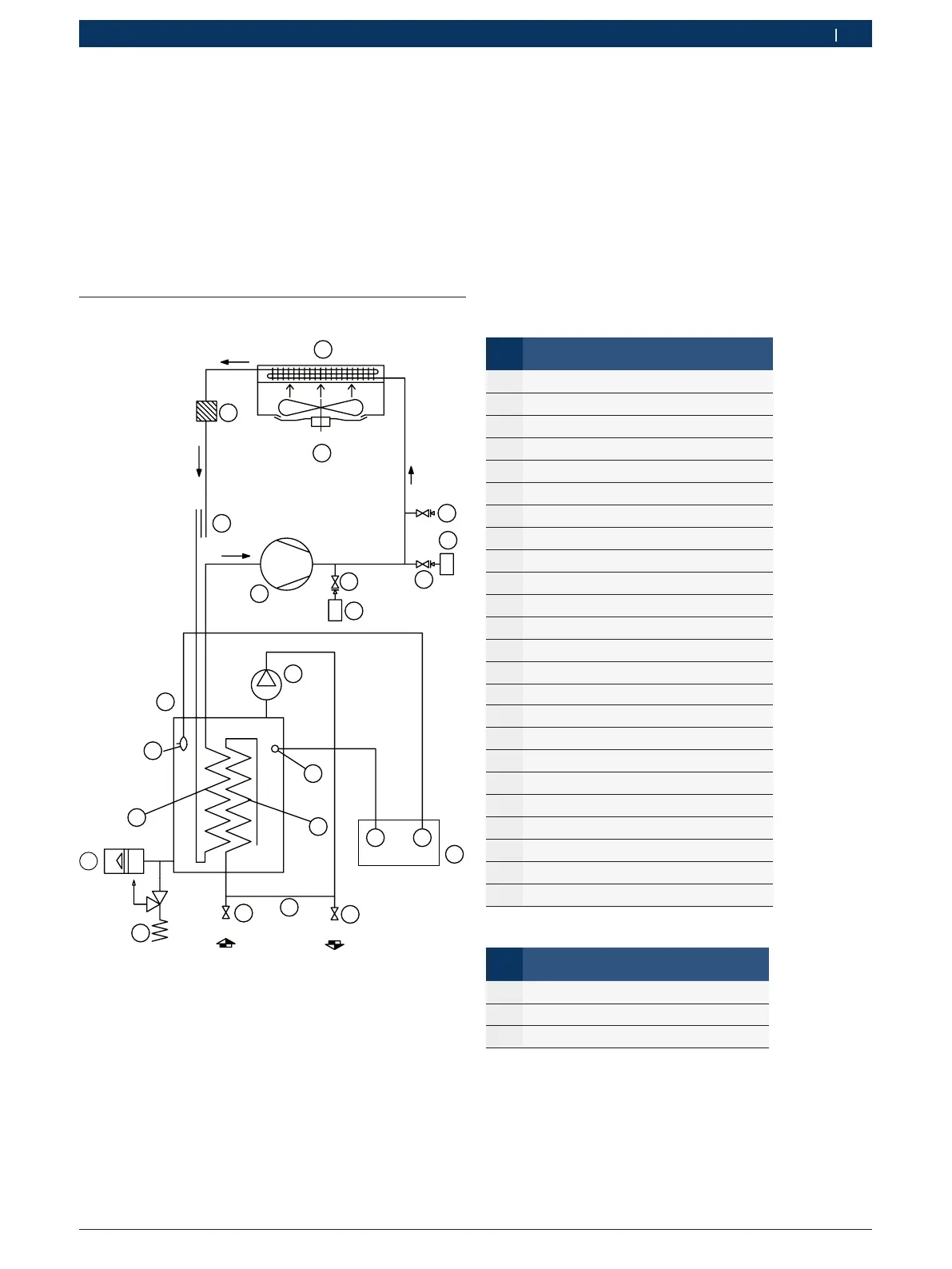

12.1 Overview of chiller
458863-29_Pal
10
11
12
13
14
18
20
23
24
Ø A
Ø C
Ø B
2
3
4
5
PV1
6
7
HP1
8
1
Ø C
9
15
16
17
19
21
22
WA
TER INLE
T
WATER OUTLET
ELECTRONIC
CONTROL
Item Description
1 Refrigerant Filter
2 Refrigerant Condenser
3 Fan motor M2-EV1
4 Schrader Valve
5 Pressure switch for fan PV1
6 Schrader Valve
7 Schrader Valve
8 Safety pressure switch HP1
9 Compressor M1-MC1
10 Electronic Control
11 Water Level Sensor
12 Evaporator Temperature Sensor
13 Valve
14 By-Pass
15 Valve
16 Safety Valve
17 Expansion Tank
18 Heat Exchanger
19 Evaporator
20 Evaporator temperature sensor B2
21 Water Level Sensor
22 Water Tank
23 Water pump
24 Expansion Capillary
Item Piping Diameter
Ø A 12 mm
Ø B 10 mm
Ø C 10 mm
