6.26 Replacing the solenoid valve block

6.26.1 Removing the solenoid valve block

i Get a cloth ready for catching and mopping up

calibrating oil.

i To ensure sufficient working space when removing

and installing the solenoid valve, we recommend

also removing the neighboring solenoids.

458863-41_Ri

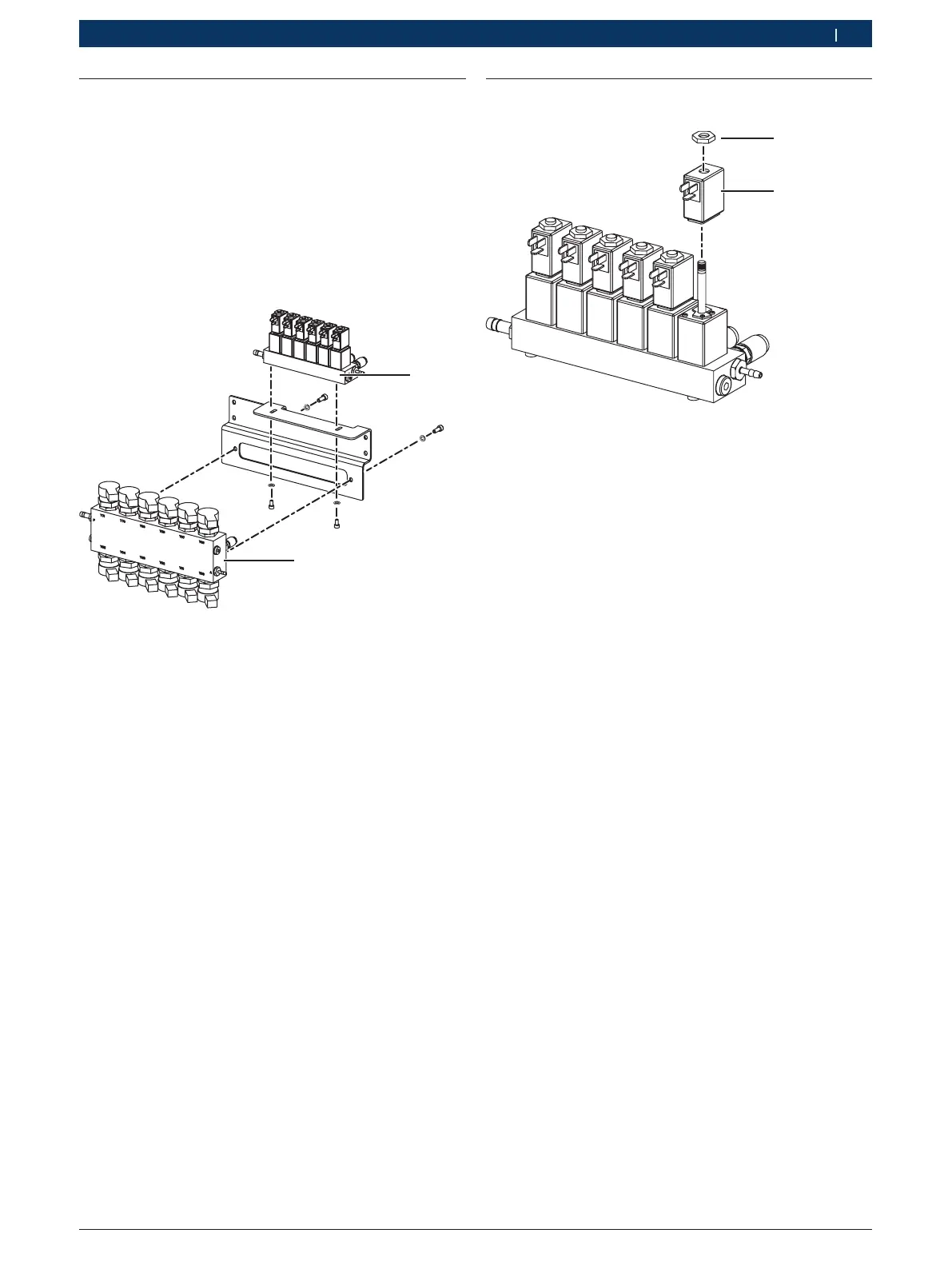

Fig. 95: Pressure control valve block and solenoid valve block

1. Remove the valve support (see section 6.22.1).

2. Remove the solenoid valve block (item 1) from the

valve support.

6.26.2 Installing the solenoid valve block

¶ Install the solenoid valve block in the reverse order.

Tightening torque: 15 Nm.

6.27 Replacing a solenoid of the solenoid

valve block

4588

63-44_Ri

Fig. 96: Solenoid valve block

1. Remove the solenoid valve block from the EPS 708

(see section 6.26.1). Then proceed as described in

this section.

2. Remove the hexagon nut (item 1).

3. Remove the solenoid (item 2).

4. Install a new solenoid.

5. Install the solenoid valve block in the EPS 708 in the

reverse order.
