Modular Fire Panel Installation | en 139
Bosch Sicherheitssysteme GmbH System Information 09.2017 | 11.3 | F.01U.028.089
FMR-5000
FPA-5000
FPP-5000
FMR-5000
24V (2,8 A) ⇒ DC2
24V (2,8 A) ⇒ DC1
-AC FAULT ⇒ IN2
-BAT FAULT ⇒ IN1
MAIN POWER
MAIN POWER
TROUBLE
TROUBLE
TROUBLE
BATTERY 1
BATTER
Y 2
BCM-0000-B
24V (2,8 A) ⇒ DC2
24V (2,8 A) ⇒ DC1
MAIN POWER
MAIN POWER
TROUBLE
TROUBLE
TROUBLE
BATTERY 1
BATTERY 2
BCM-0000-B
1
2
1
2

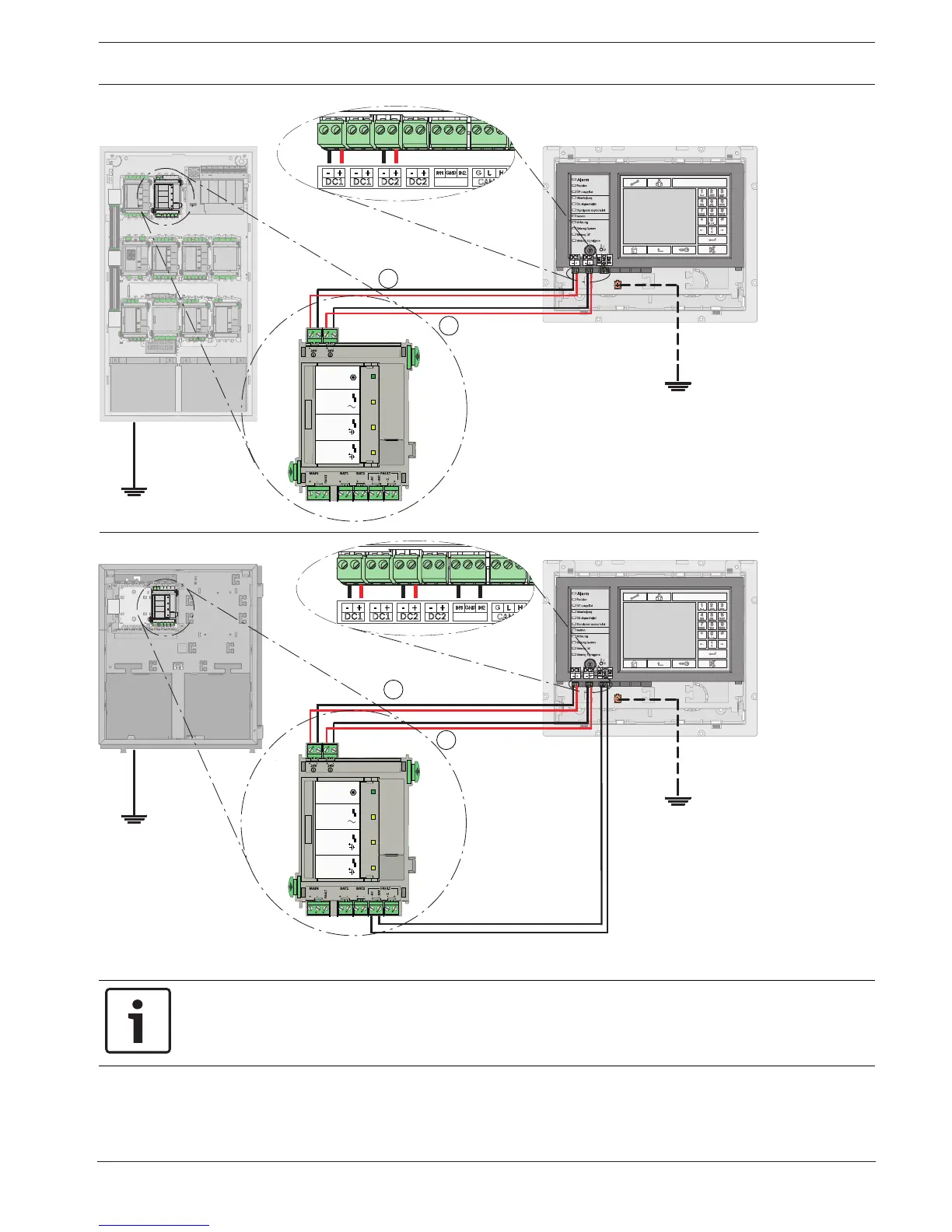

Figure4.93: Remote Keypad wiring with BCM-0000-B
Notice!
The value 2.8A must be set in the configuration window of the BCM‑0000‑B in the panel's
programming software.
