140 en | Installation Modular Fire Panel
09.2017 | 11.3 | F.01U.028.089 System Information Bosch Sicherheitssysteme GmbH
Addressing and Configuration in the Network
The remote keypads are identified in the network by a unique address. This address is set on
the rotary switches and is known as the rotary switch number (RSN) (see the figures in the
circle on the circuit diagrams).
Note the address on the sign above the rotary switches (see , step 2).
Configure the remote keypad using the DIP switches. Mark the selected setting on the sign
below the DIP switches (see , step 4).
Addressing and Configuration of Remote Keypad
1 -- 240
3.
RESET
123456
3
1
2
4

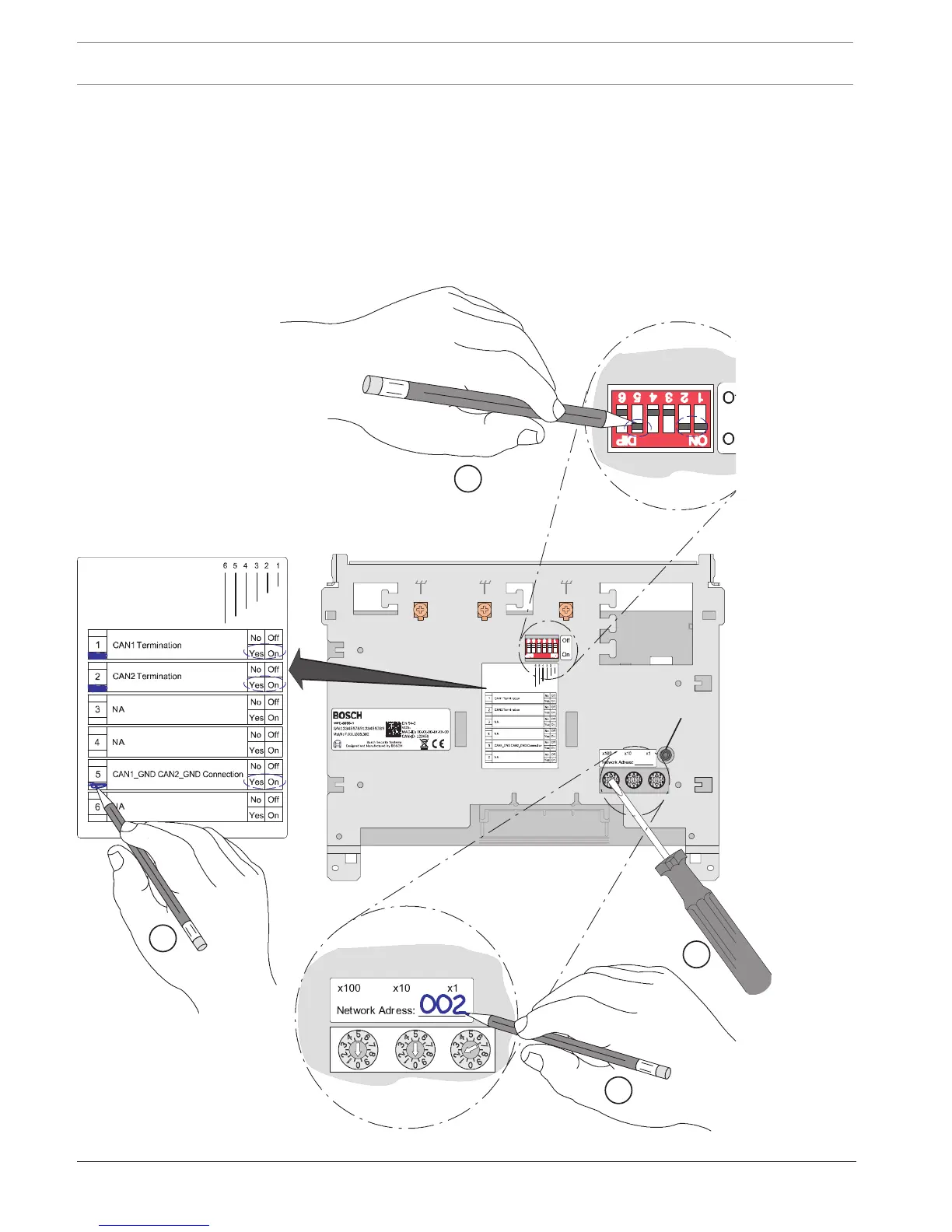

Figure4.94: Addressing and Configuration
