Loading Labels
For optimum performance, use authentic Brady labels. Labels can be loaded with the power on or off.
Before inserting labels, be sure to remove the protective tape covering the leading end of the labels.

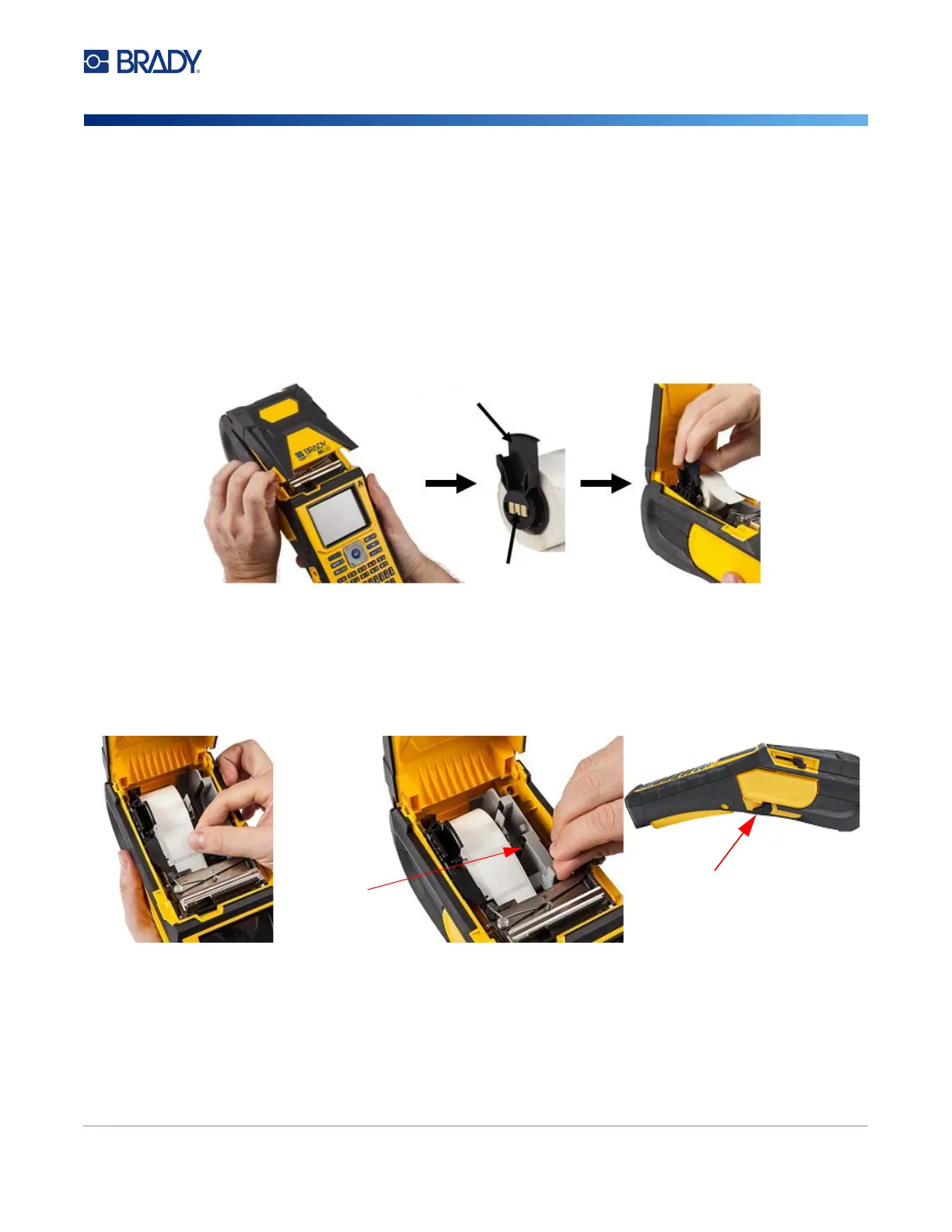

Loading
1. To open the printer cover, place your thumb under
the tab and push up.
2. With labels coming over the top of the core, grasp
the smart cell handle and insert the labels straight
into the smart cell reader compartment, gently
pushing until it clicks into place.
3. If using anything but a 2-inch width label supply,
slide the media guide to the left until it fits snugly up
against the label roll and clicks into place.
4. Feed the leading edge of the label roll through the
guide slots until it stops.
IMPORTANT! Make sure the printhead is engaged by
flipping the printhead lock lever forward
(to the left) before inserting labels into
guides.
5. With the power on, press the Feed button once to feed label supply under the printhead.
6. Close the cover by pushing down on it until it snaps into place.
Smart Cell Handle
Smart Cell
Media Guide
Locking Lever
