System Overview
1
1- 8 SpaceStation, 2.0 gb
2.0
SpaceStation with SpaceCom
The SpaceCom provides further interfaces and connections, e.g.
for a barcode scanner. These interfaces are depicted in Abb.: 1 - 7.
The battery module (option) serves to maintain the functions of
the SpaceStation in case of a voltage failure. An independent cir-
cuit in the battery module monitors the battery cells and controls
their charge condition. The SpaceStation must be covered with a
SpaceCover comfort with inserted battery module to guarantee
function of the battery module in the SpaceStation with Space-
Com.

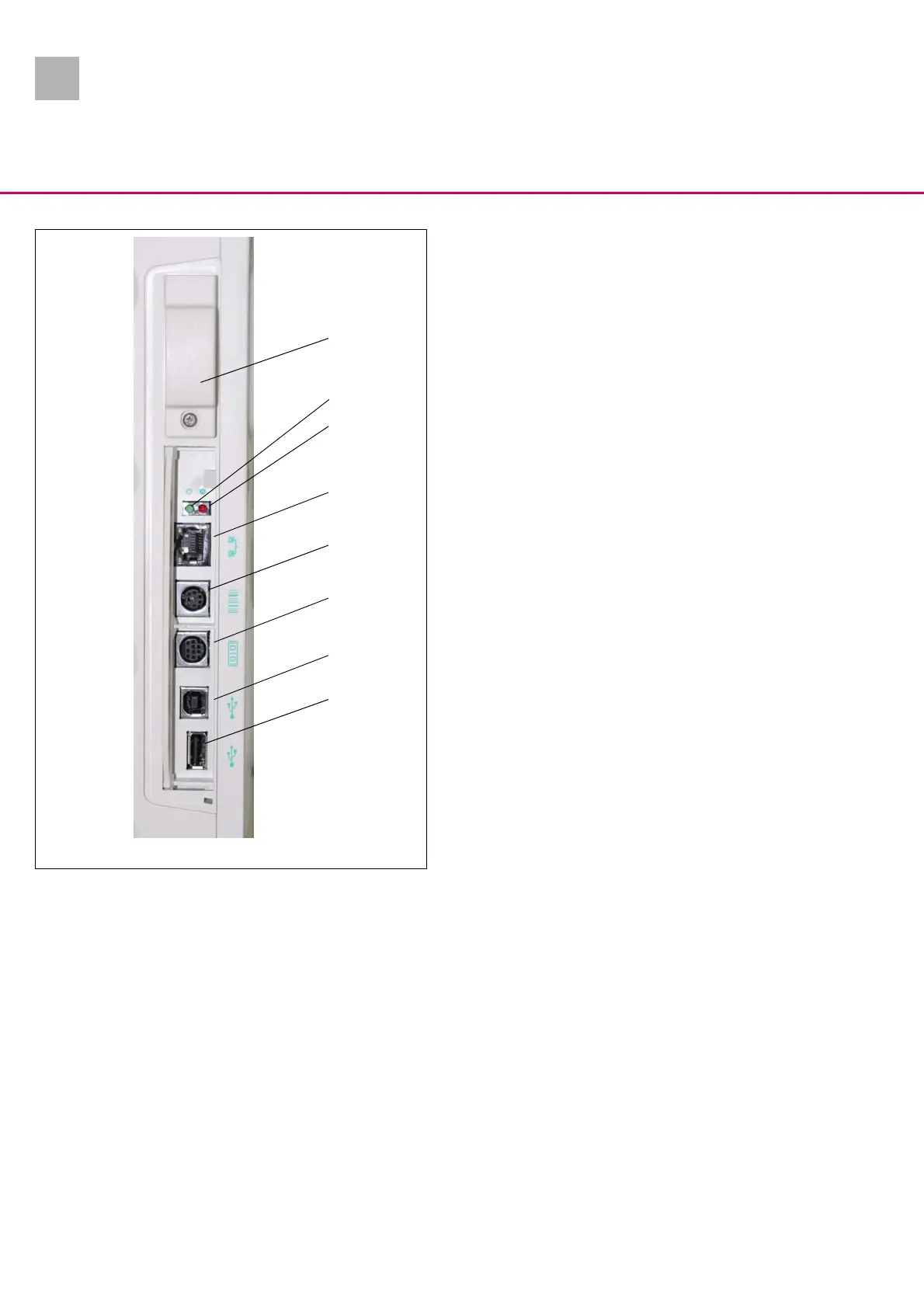

Abb.: 1 - 7
Legende zu Abb. 1 - 7:
ItemDesignation
1 W-LAN slot
2 Status indicator (green)
3 Alarm indicator (red)
4 Ethernet (RJ 45) connection
5 PS/2 connection for barcode reader
6 RS232 connection
7 USB connection (slave)
8 USB connection (master)
2
3
4
5
6
7
8
1
