5.6 Housing Back Panel
Designation Ord. No.
Housing back panel SPC . . . . . . . . . . . . . . . . . . . . . . . . 3452 1216
Connector board SPCS . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1240
(only for SpaceCover standard)
Screws
(see „Service Parts and Screw Kit“ ➨ S. 5 - 1)
Disassembly
1. Unscrew two screws (Abb.: 5 - 7 / Item 3) on the housing
back panel and remove screws together with the connector
board (Abb.: 5 - 7 / Item 1) (Abb.: 5 - 7 / Item 2).
Note
The connector board in the SpaceCover comfort is integrated in
the SpaceCover comfort processor PCB.
2. Take the housing back panel out of the housing bottom part.

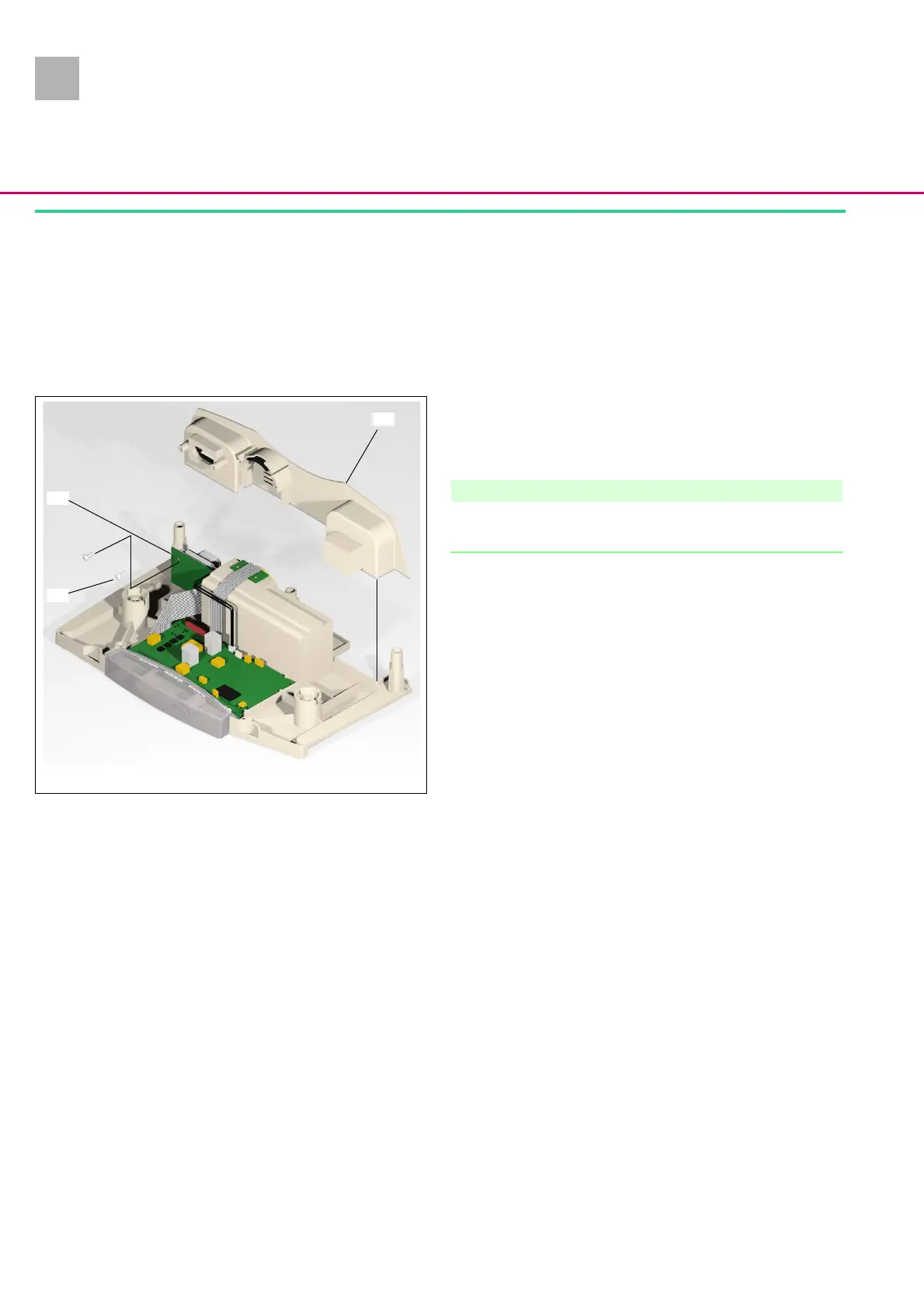

Abb.: 5 - 7
Legende zu Abb. 5 - 7:
ItemDesignation
1 Connector board
2 Housing back panel
3 Screw EJOT 30x9 WN 5452 TORX 10IP A2
1
2
3
