Disassembly / Assembly SpaceCom
4
4- 6 SpaceStation, 2.0 gb
2.0
4.5 Pole Clamp Guide
Designation Ord. No.
Pole clamp guide SPS. . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1135
Pole clamp lever
(see „Service Parts and Screw Kit“ ➨ S. 4 - 2)
Pole clamp spring
(see „Service Parts and Screw Kit“ ➨ S. 4 - 2)
Screws
(see „Service Parts and Screw Kit“ ➨ S. 4 - 2)
Disassembly
1. Loosen three screws (Abb.: 4 - 4 / Item 2) and remove screws
together with the pole clamp guide (Abb.: 4 - 4 / Item 1).
2. Remove pole clamp lever (Abb.: 4 - 4 / Item 4) and pole clamp
spring (Abb.: 4 - 4 / Item 3).

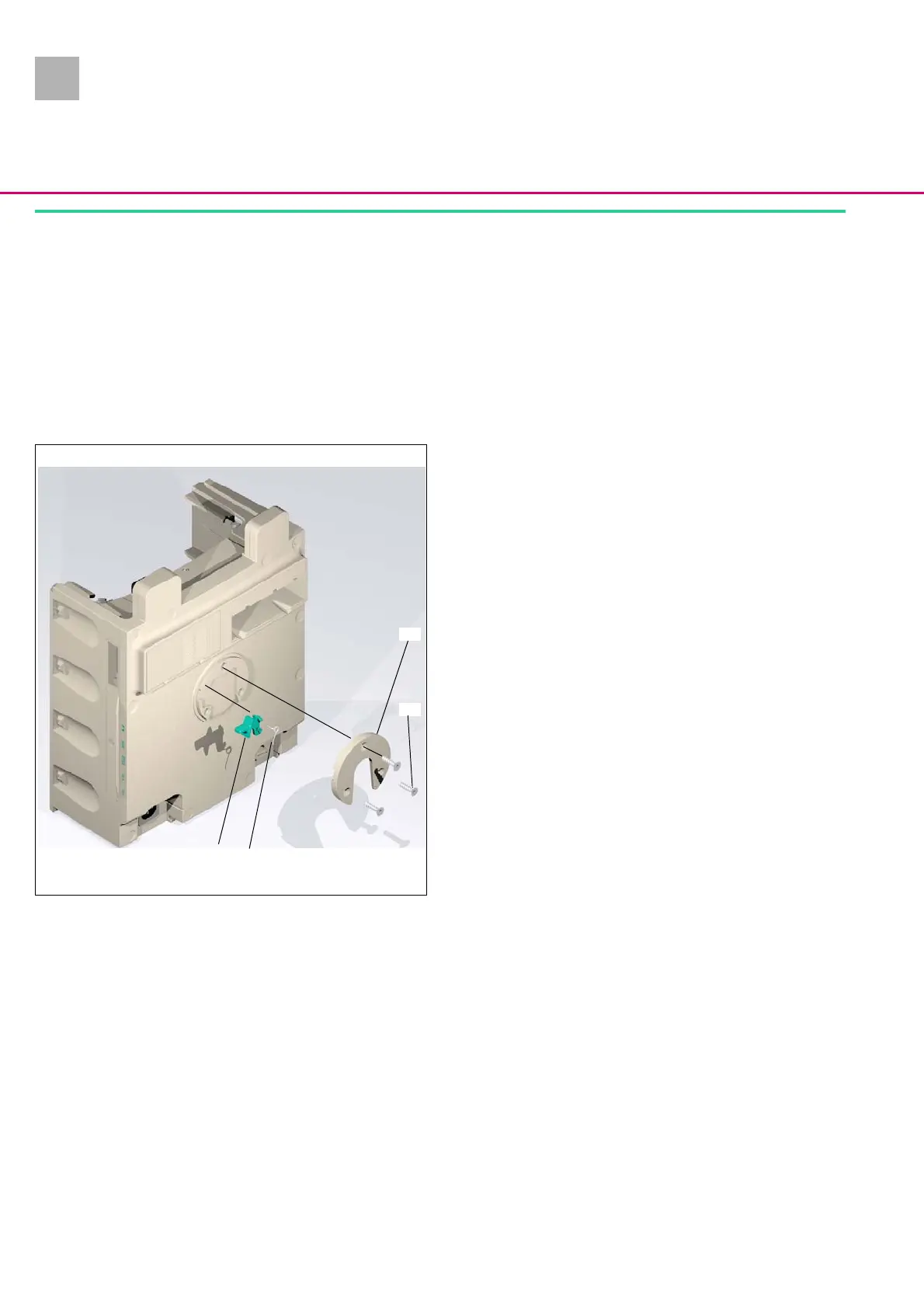

Abb.: 4 - 4
Legende zu Abb. 4 - 4:
ItemDesignation
1 Pole clamp guide
2 Countersunk screw M5x12 TORX 25
3 Pole clamp spring
4 Pole clamp lever
1
2
34
