Braun SpaceStation - W-LAN Module Removal and Installation

Disassembly / Assembly SpaceCom
4
4- 4 SpaceStation, 2.0 gb
4.3 W-LAN Module
Designation Ord. No.
W_LAN module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . on request
W-LAN cover SPCO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1049
(with symbol)
W-LAN cover SPCO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1050
(without symbol)
Cover cap and screw
(see „Service Parts and Screw Kit“ ➨ S. 4 - 2)
Disassembly
1. Pierce cover cap (Abb.: 4 - 2 / Item 4) with a screwdriver and
pull cap out.
2. Unscrew screw (Abb.: 4 - 2 / Item 3) and remove screw to-
gether with the W-LAN cover (Abb.: 4 - 2 / Item 1).
3. Pull W-LAN module (Abb.: 4 - 2 / Item 2) out of the holder.

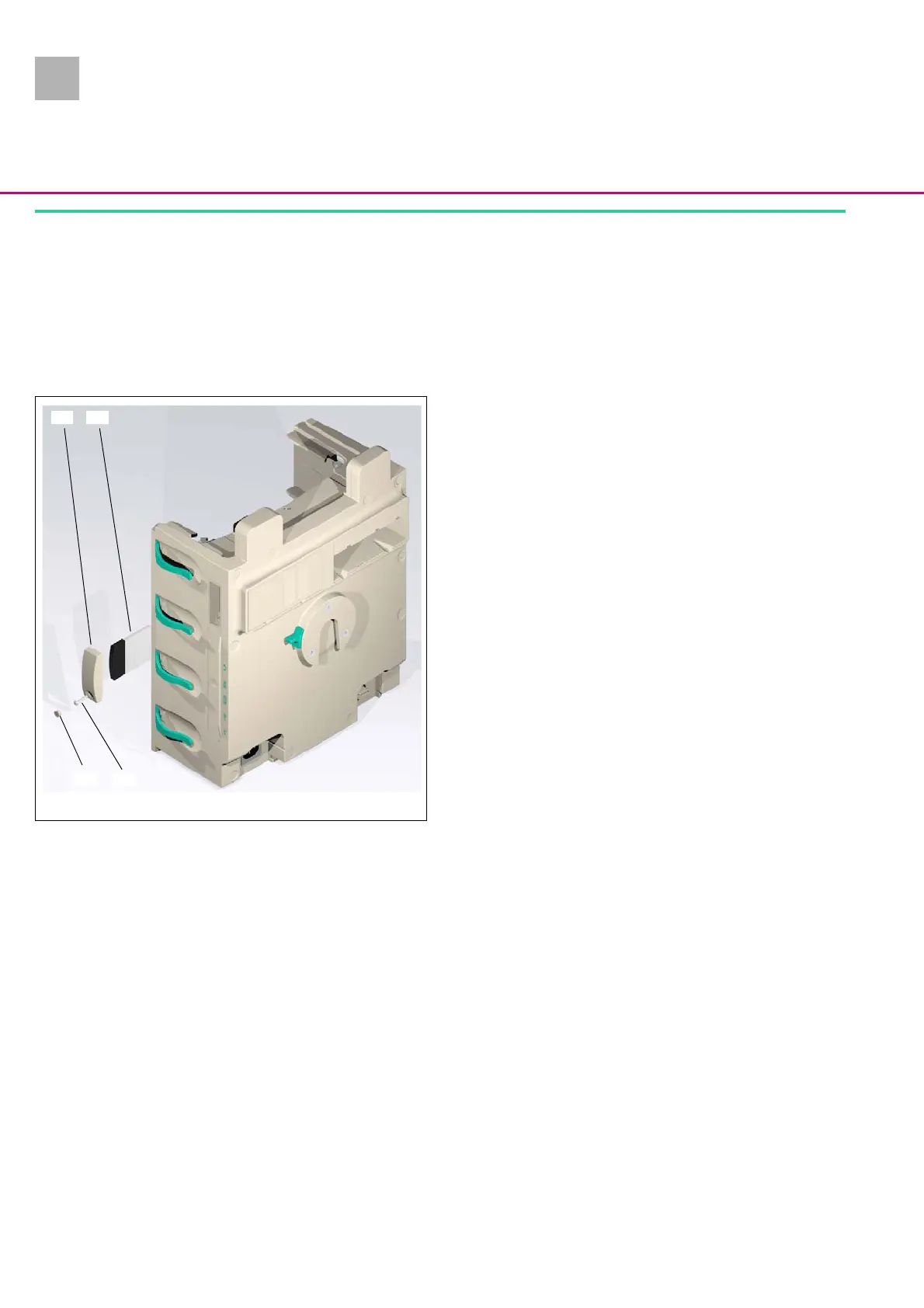

Abb.: 4 - 2
Legende zu Abb. 4 - 2:
ItemDesignation
1 W-LAN cover
2 W-LAN module
3 Screw EJOT 30x12 WN 5452 TORX 10IP A2
4Cover cap
1 2
4
3
2.0
