Disassembly / Assembly SpaceStation
3
SpaceStation, 1.0 gb 3- 5
1.0
3.4 Housing Back Panel
Designation Ord. No.
Housing back panel SPS . . . . . . . . . . . . . . . . . . . . . . . . 3452 1089
Cover cap and screws
(see „Service Parts and Screw Kit“ ➨ S. 3 - 2)
Disassembly
1. Pierce ten cover caps (Abb.: 3 - 3 / Item 3) with a screwdriver
and pull caps out.
2. Loosen nine screws (Abb.: 3 - 3 / Item 2) and remove screws
carefully together with the back panel (Abb.: 3 - 3 / Item 4)
from the housing.
Note
Lift the housing back panel carefully at the bottom over the seat
of the pole clamp guide and push the back panel over the housing
notch (Abb.: 3 - 3 / Item 1).

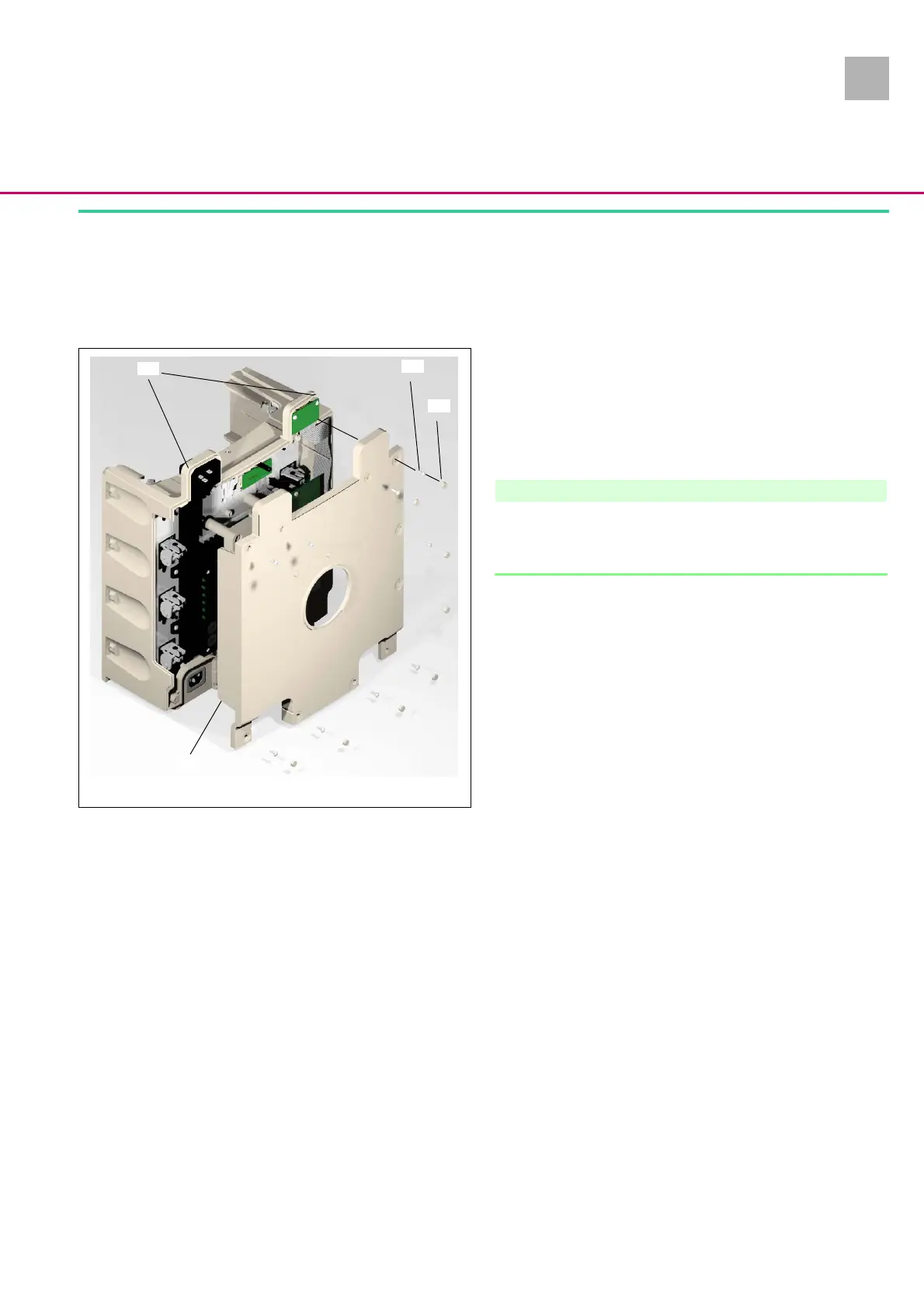

Abb.: 3 - 3
Legende zu Abb. 3 - 3:
ItemDesignation
1 Housing notch
2 Screw EJOT 30x9 WN 5452 TORX 10IP A2
3Cover cap
4 Housing back panel
3
2
4
1
