Disassembly / Assembly SpaceStation

3- 20 SpaceStation, 1.0 gb

1.0

3.9 Housing

Designation Ord. No.

Housing SPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1070

incl. mains seal F1B

Screws, seals and housing foot SPS

(see „Service Parts and Screw Kit“ ➨ S. 3 - 2)

Disassembly

1. Pull two housing feet (Abb.: 3 - 22 / Item 1) out of the hous-

ing.

2. Remove four release seals (Abb.: 3 - 22 / Item 2) from the

housing.

Note

The seals are self-adhesive. Remove any adhesive residues after

disassembly.

3. Remove mains seal F1B (Abb.: 3 - 22 / Item 3) out of the

housing.

Note

The housing must not be disassembled further. The seals behind

the corner profiles on the right and left side can only be inserted

correctly by means of special tools.

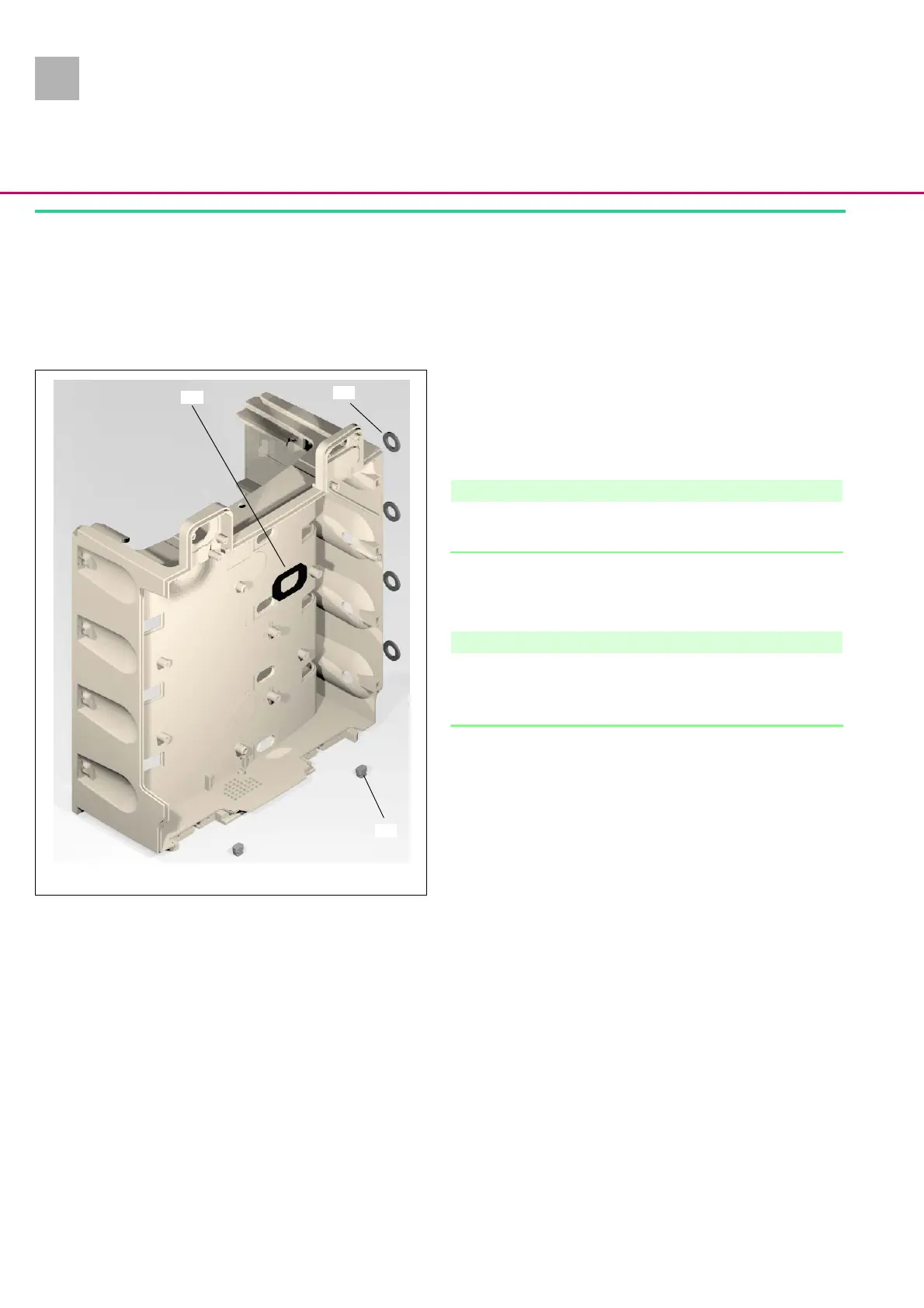

Abb.: 3 - 22

Legende zu Abb. 3 - 22:

ItemDesignation

1 Housing foot SPS

2 Release seal

3 Mains sealF1B
