Disassembly / Assembly SpaceStation
3
SpaceStation, 1.0 gb 3- 19
1.0
3. Press the connector board lockings (Abb.: 3 - 21 / Item 3)
F2A, F2B, F2C, and F2D carefully aside, push the connectors
downwards, pull them out of the module lock (Abb.: 3 - 21 /
Item 1) and remove them with the interface board (Abb.: 3 -
21 / Item 2) from the module lock.
Note
The connectors F2A, F2B, F2C, and F2D are connected to each oth-
er and integrated in the interface board.

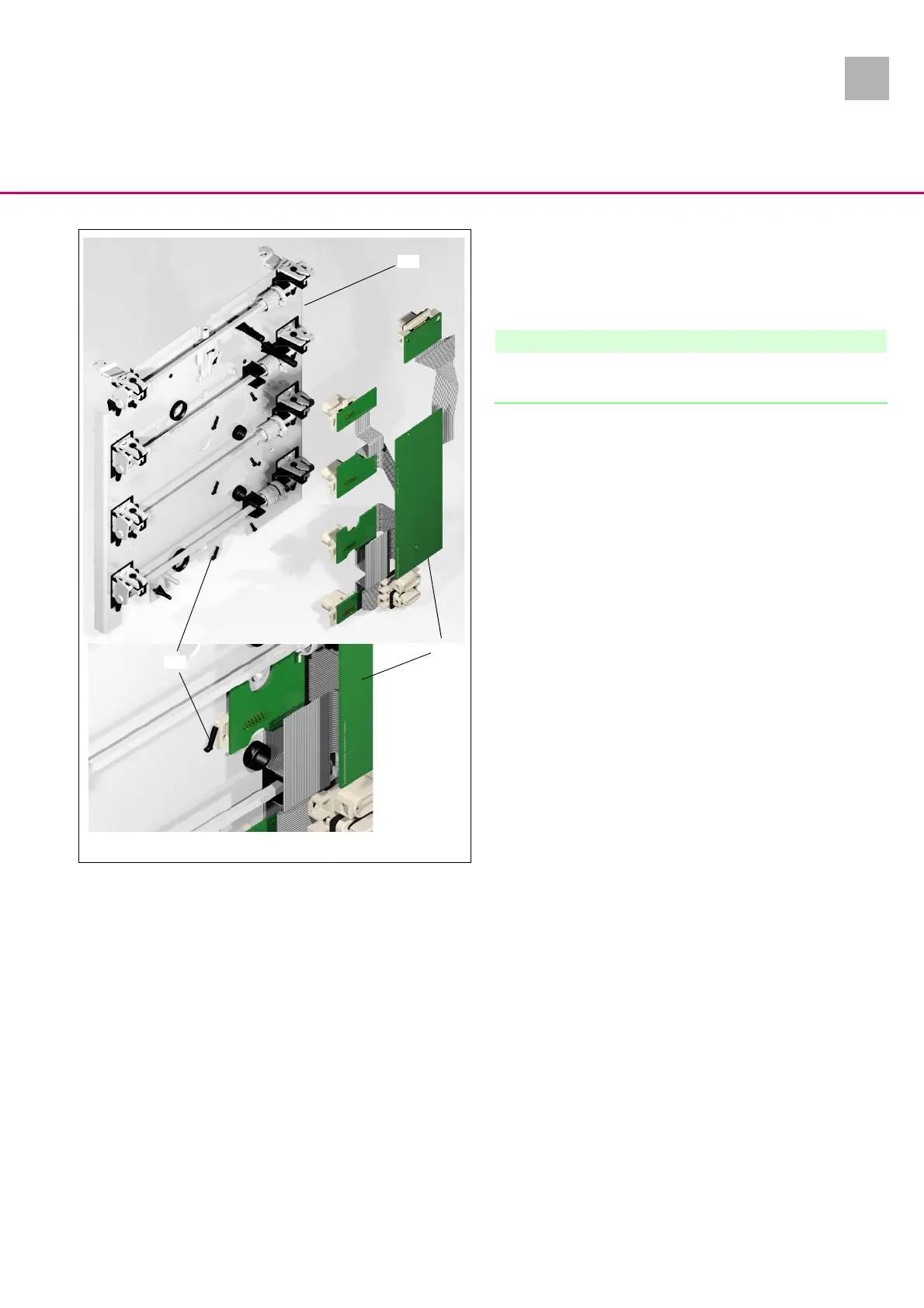

Abb.: 3 - 21
Legende zu Abb. 3 - 21:
ItemDesignation
1 Module lock
2 Connector board
3 Connector board lockings
1
2
3
