SpaceStation, 2.0 gb 4- 3
4.2 Battery Module
Designation Ord. No.
Battery pack SP (NIMH). . . . . . . . . . . . . . . . . . . . . . . . . 0871 3180
Battery compartment cover SPC. . . . . . . . . . . . . . . . . . 3452 1232
Disassembly
1. Rotate the lock (Abb.: 4 - 1 / Item 3) on the battery compart-
ment cover (Abb.: 4 - 1 / Item 2) and remove the battery
compartment cover.
2. Push the lock (Abb.: 4 - 1 / Item 4) on the battery module
downward and remove the battery module (Abb.: 4 - 1 /
Item 1) out of the battery compartment.

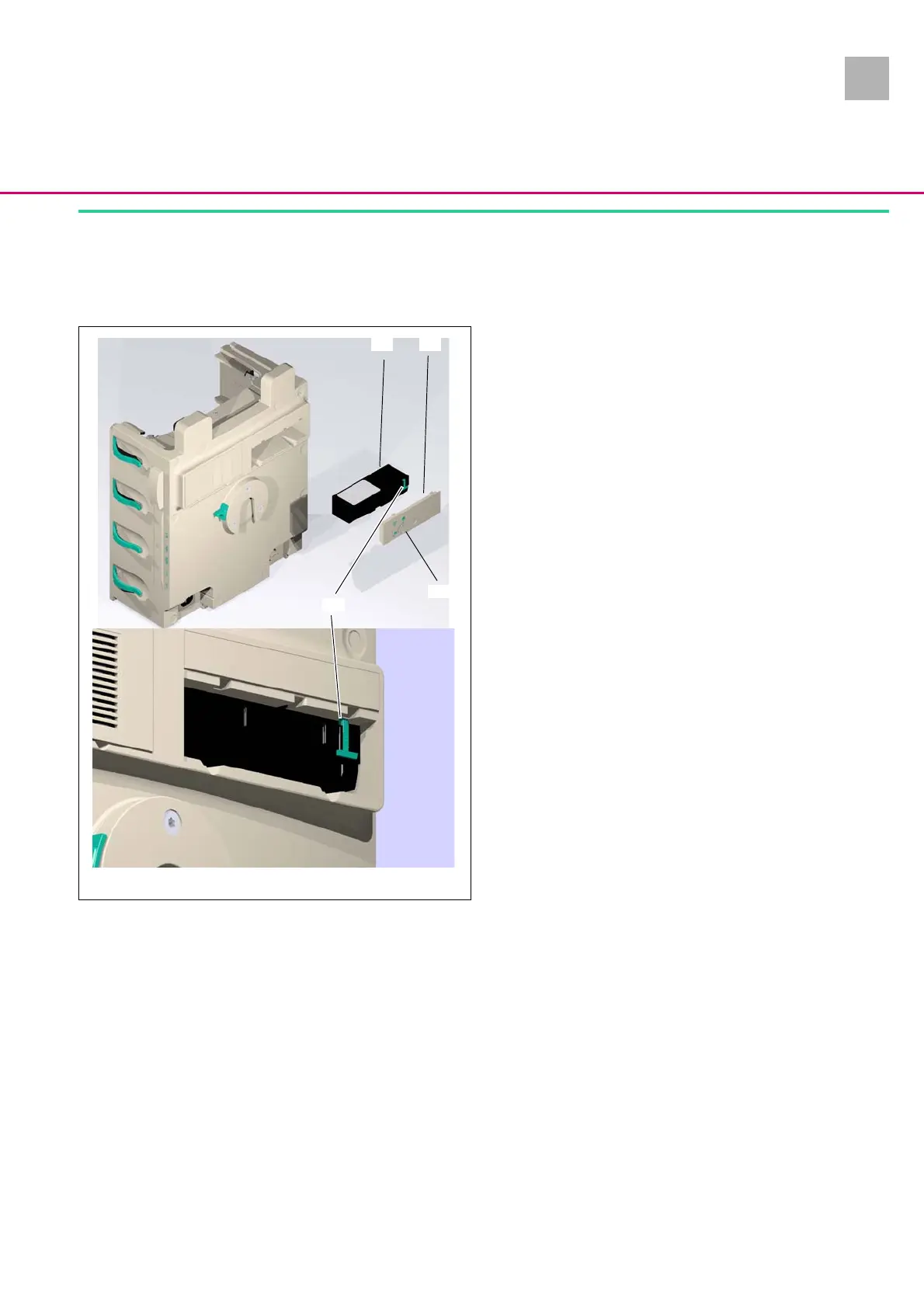

Abb.: 4 - 1
Legende zu Abb. 4 - 1:
ItemDesignation
1 Battery module
2 Battery compartment cover
3 Battery compartment cover lock
4 Battery module lock
1 2
3
4
