Disassembly / Assembly SpaceCover
5
SpaceStation, 1.0 gb 5- 3
5.2 Battery Compartment Cover
Designation Ord. No.
Battery compartment cover SPC. . . . . . . . . . . . . . . . . . 3452 1232
Disassembly
1. Rotate the lock (Abb.: 5 - 1 / Item 1) on the battery compart-
ment cover (Abb.: 5 - 2 / Item 1) and remove the battery
compartment cover.
CAUTION
The battery module which might be installed in the SpaceCover
comfort can drop out when the battery compartment cover is re-
moved.

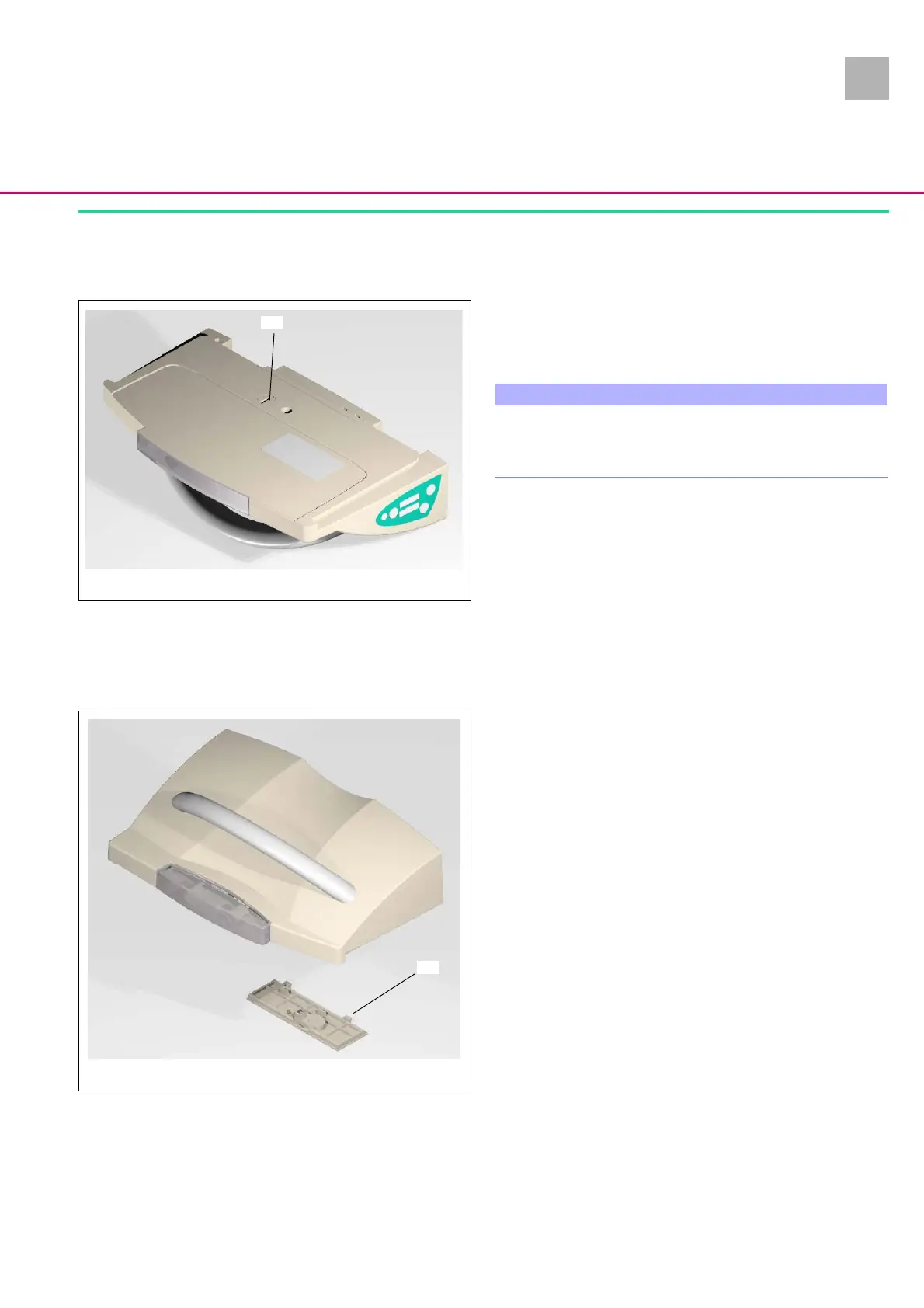

Abb.: 5 - 1
Legende zu Abb. 5 - 1:
ItemDesignation
1 Battery compartment cover lock
1
Abb.: 5 - 2
Legende zu Abb. 5 - 2:
ItemDesignation
1 Battery compartment cover
1
