Braun SpaceStation - Handle Removal and Installation

Disassembly / Assembly SpaceCover
5
SpaceStation, 2.0 gb 5- 5
2.0
5.4 Handle
Designation Ord. No.
Handle SPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3452 1224
Cover caps, screws and washers
(see „Service Parts and Screw Kit“ ➨ S. 5 - 1)
Disassembly
1. Pierce two cover caps (Abb.: 5 - 4 / Item 4) on the housing
bottom part with a screwdriver and pull caps out.
2. Unscrew two fillister-head screws (Abb.: 5 - 4 / Item 3) and
remove screws together with washers (Abb.: 5 - 4 / Item 2).
3. Pull the handle (Abb.: 5 - 4 / Item 1) upward and out the
housing upper part.

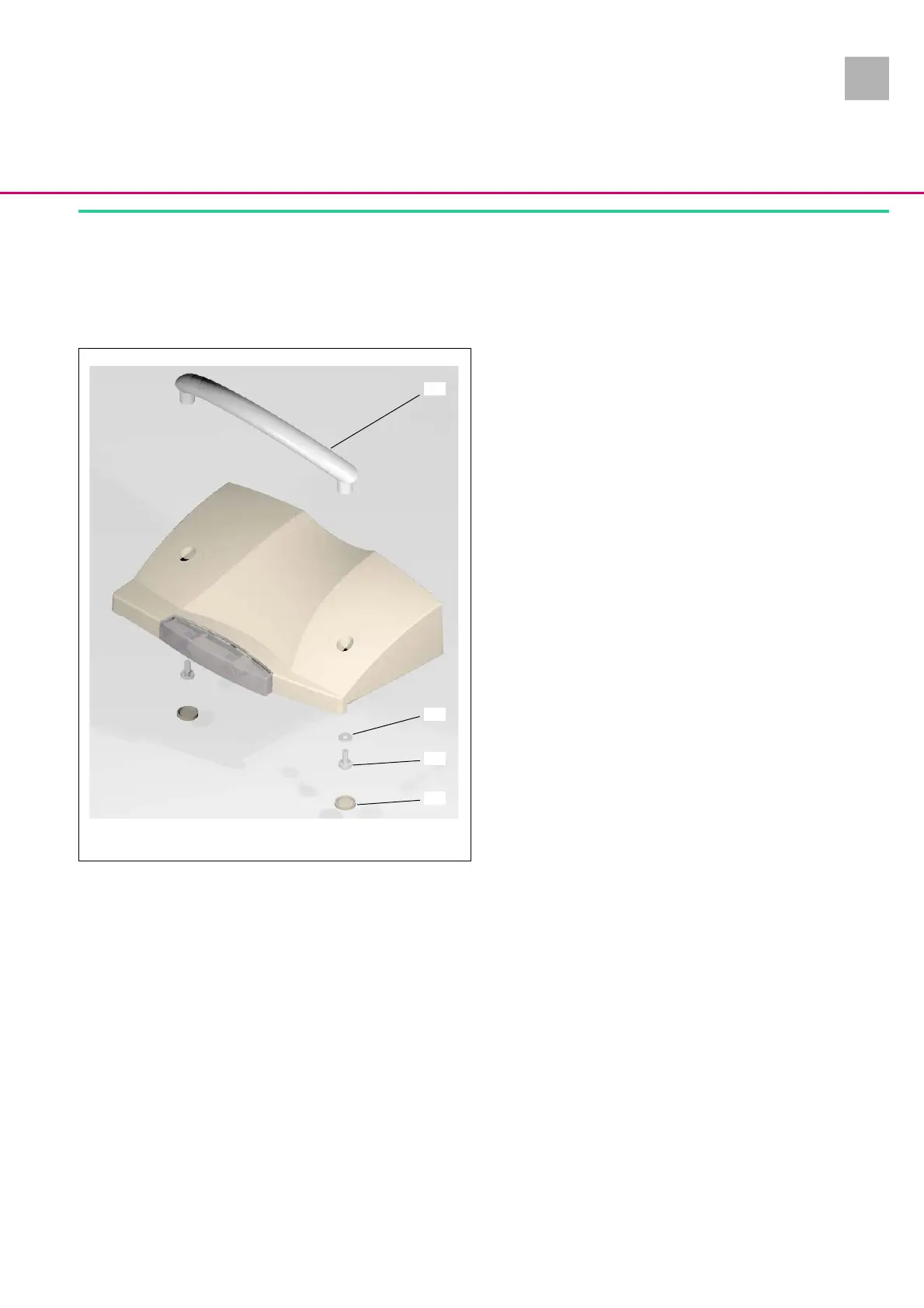

Abb.: 5 - 4
Legende zu Abb. 5 - 4:
ItemDesignation
1 Handle
2Washer M5
3 Fillister-head screw M5x12 TORX
4 Cover cap for handle
1
2
3
4
