5.5 Housing Upper Part
Designation Ord. No.
Housing upper part SPCS . . . . . . . . . . . . . . . . . . . . . . . 3452 1194
Housing upper part SPCC . . . . . . . . . . . . . . . . . . . . . . . 3452 1178
Cover caps, screws and release seal
(see „Service Parts and Screw Kit“ ➨ S. 5 - 1)
Disassembly
1. Pierce five cover caps (Abb.: 5 - 5 / Item 4) with a screwdriver
and pull caps out.
2. Unscrew five screws (Abb.: 5 - 5 / Item 3) and remove the
housing upper part (Abb.: 5 - 5 / Item 1) carefully.
Note
Pay attention to the length of the rubber cable between the op-
erator panel and the processor PCB SCc when dismounting the
housing upper part of the SpaceCover comfort.
Note
Do not remove the housing back panel together with the housing
upper part.

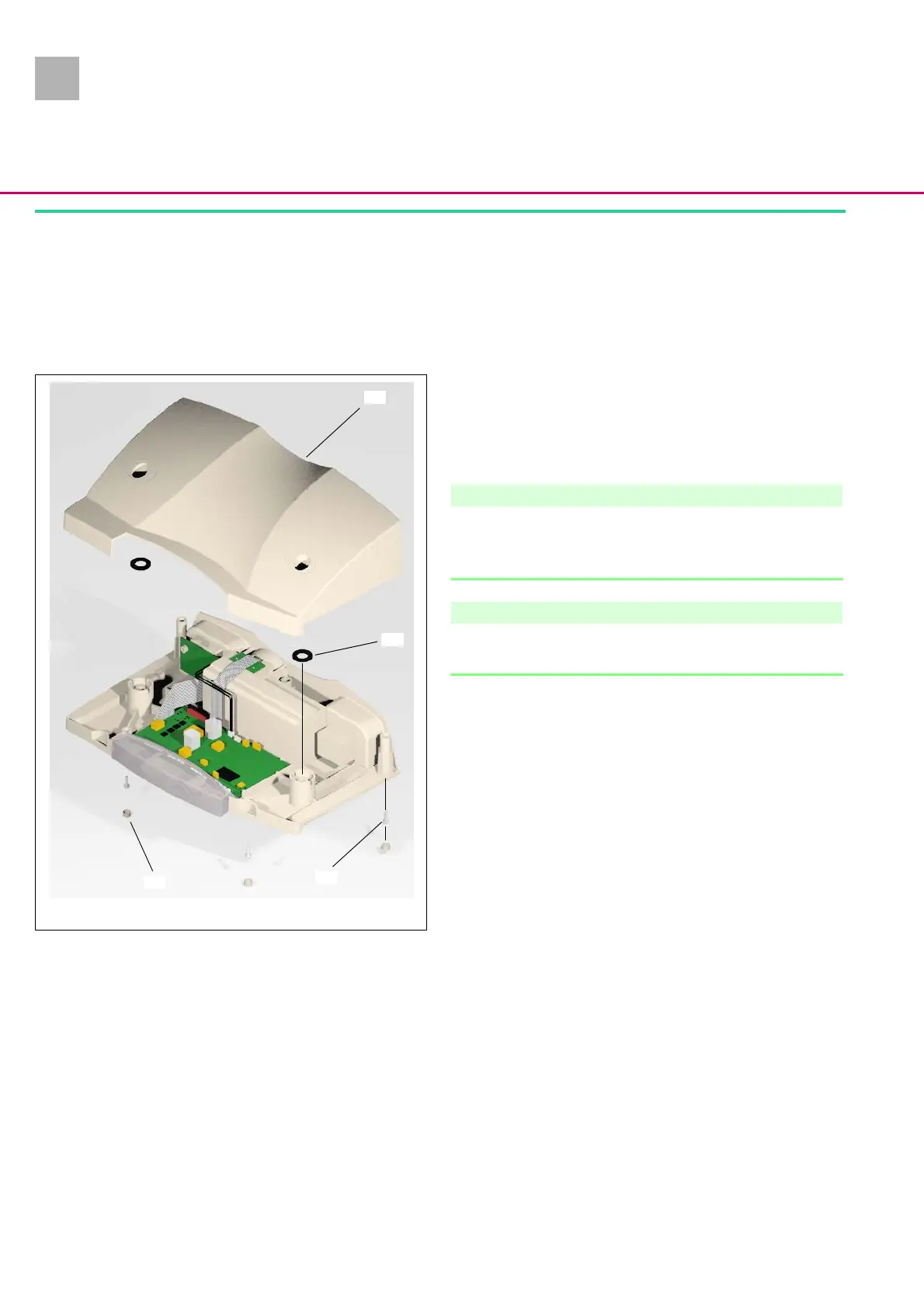

Abb.: 5 - 5
Legende zu Abb. 5 - 5:
ItemDesignation
1 Housing upper part
2Seal
3 Screw EJOT 30x9 WN 5452 TORX 10IP A2
4 Cover cap for housing
1
2
3
4
