Disassembly / Assembly SpaceStation
3
3- 8 SpaceStation, 2.0 gb
2.0
4. Loosen the nut (Abb.: 3 - 7 / Item 4) and remove nut together
with the serrated lock washer (Abb.: 3 - 7 / Item 3), washers
(Abb.: 3 - 7 / Item 1) and the protective conductor cable to
connector “F1A“ (Abb.: 3 - 7 / Item 2) from the grounding
bolt.
5. Carefully pull off the connector of the power supply wires
from the interface board.
Note
Note or mark the polarity.
6. Loosen two screws (Abb.: 3 - 8 / Item 1) and take them out of
the power supply housing (connector).

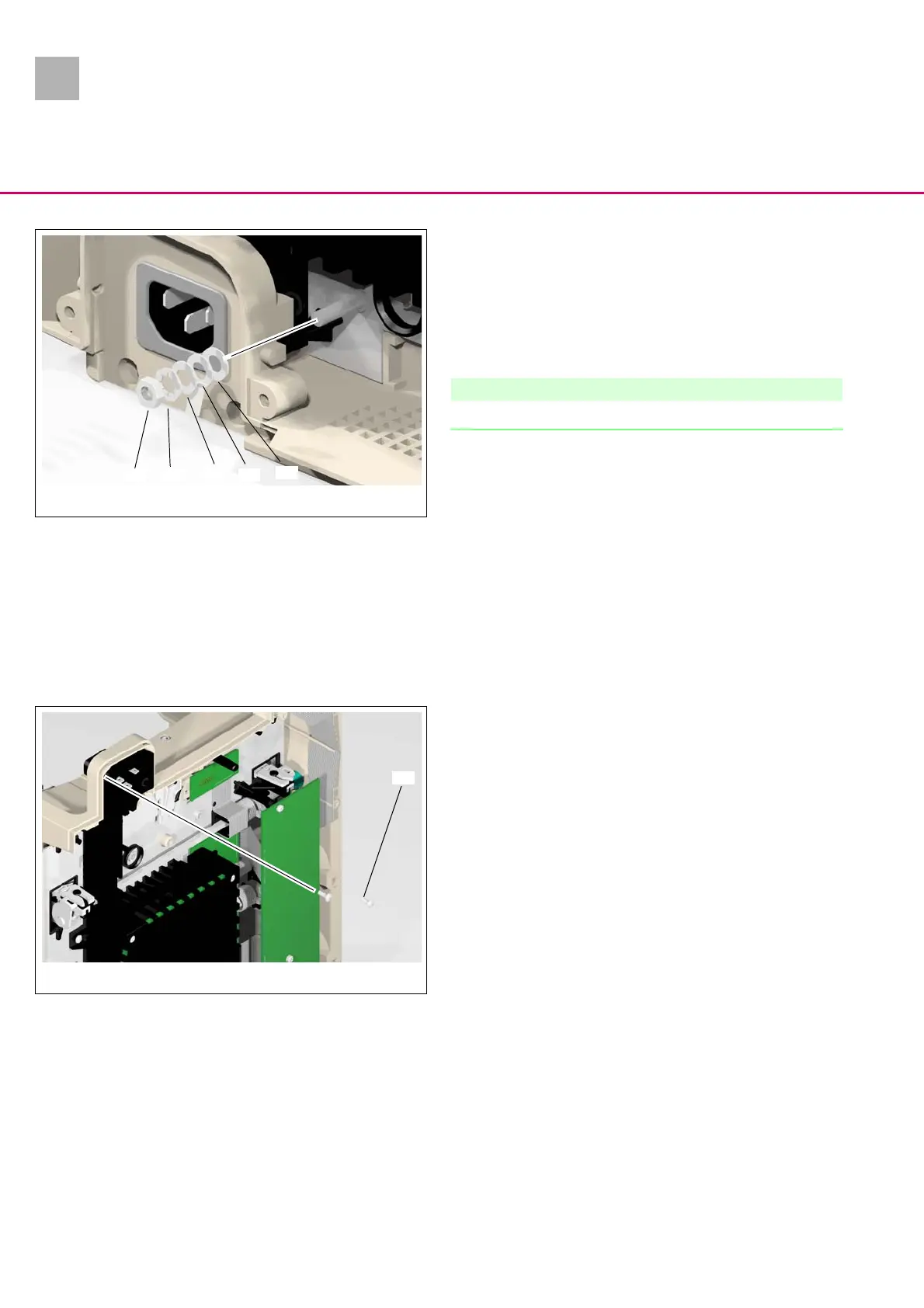

Abb.: 3 - 7
Legende zu Abb. 3 - 7:
ItemDesignation
1Washer M4
2 Cable lug for connection to connector “F1A“
3 Serrated lock washer M4
4Nut M4
4 3
1
2
1
Abb.: 3 - 8
Legende zu Abb. 3 - 8:
ItemDesignation
1 Screw EJOT 30x9 WN 5452 TORX 10IP A2
1
To Next Page
