Disassembly / Assembly SpaceCom
4
4- 12 SpaceStation, 2.0 gb
2.0
6. Remove the fastening sleeve (Abb.: 4 - 11 / Item 2) out of the
housing.
7. Remove the insulating piece (Abb.: 4 - 11 / Item 1) under the
connector board F2A.
4.9 Further Disassembly
Further disassembly of the SpaceStation is continued with the
power supply and corresponds to the disassembly of a SpaceSta-
tion with SpaceCom. This disassembly is described in Chapter „Po-
wer Supply“ (➨ S. 3 - 7) in more detail.

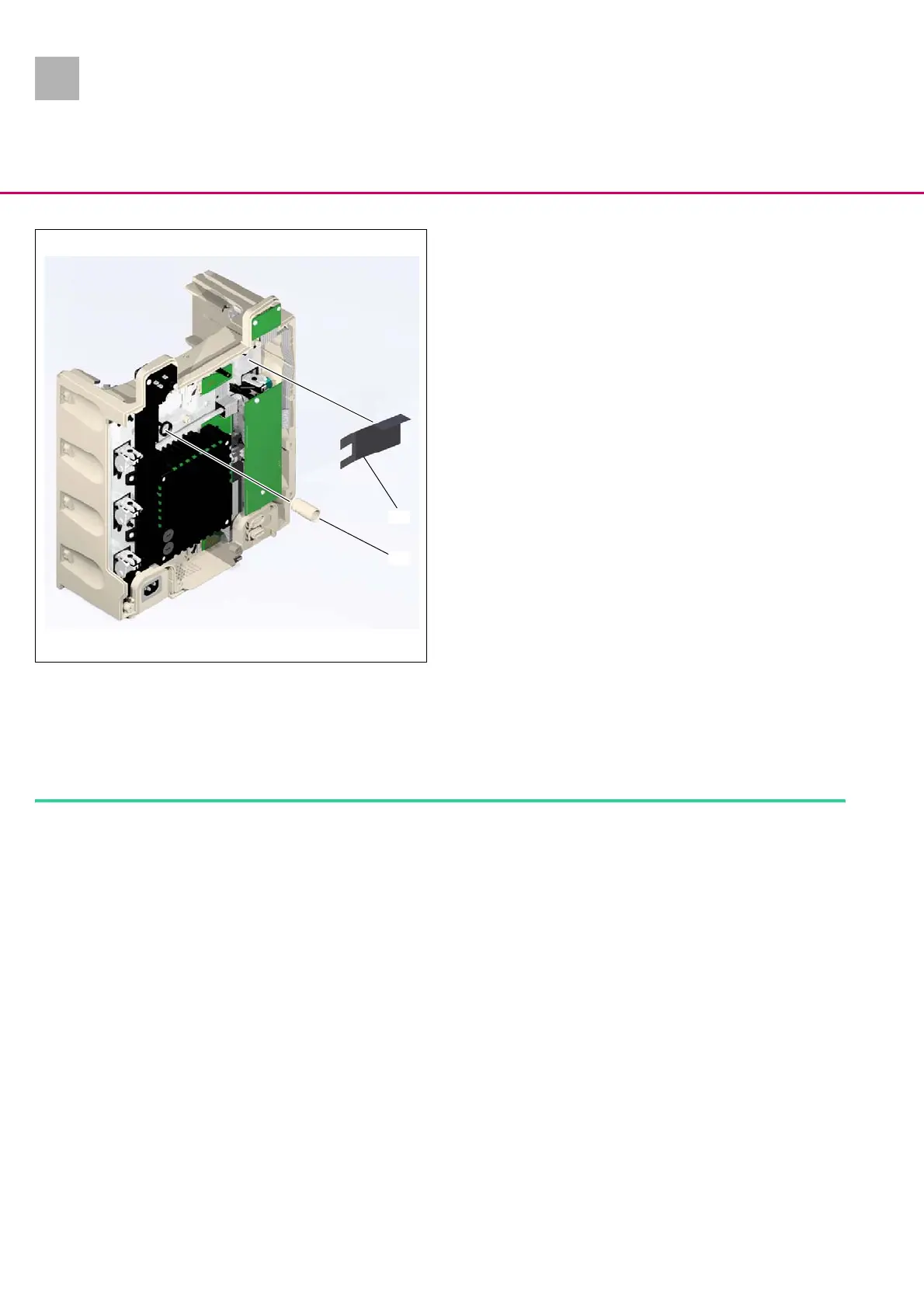

Abb.: 4 - 11
Legende zu Abb. 4 - 11:
ItemDesignation
1 SPCO insulating piece
2 SPCO fastening sleeve
