X7-8 Director Hardware Installation Guide
SX6 Blade Port Numbering and Trunking
The following figure shows how ports are numbered on the blade. Ports are labeled as 10GE, 40GbE, and FC on the
blade.

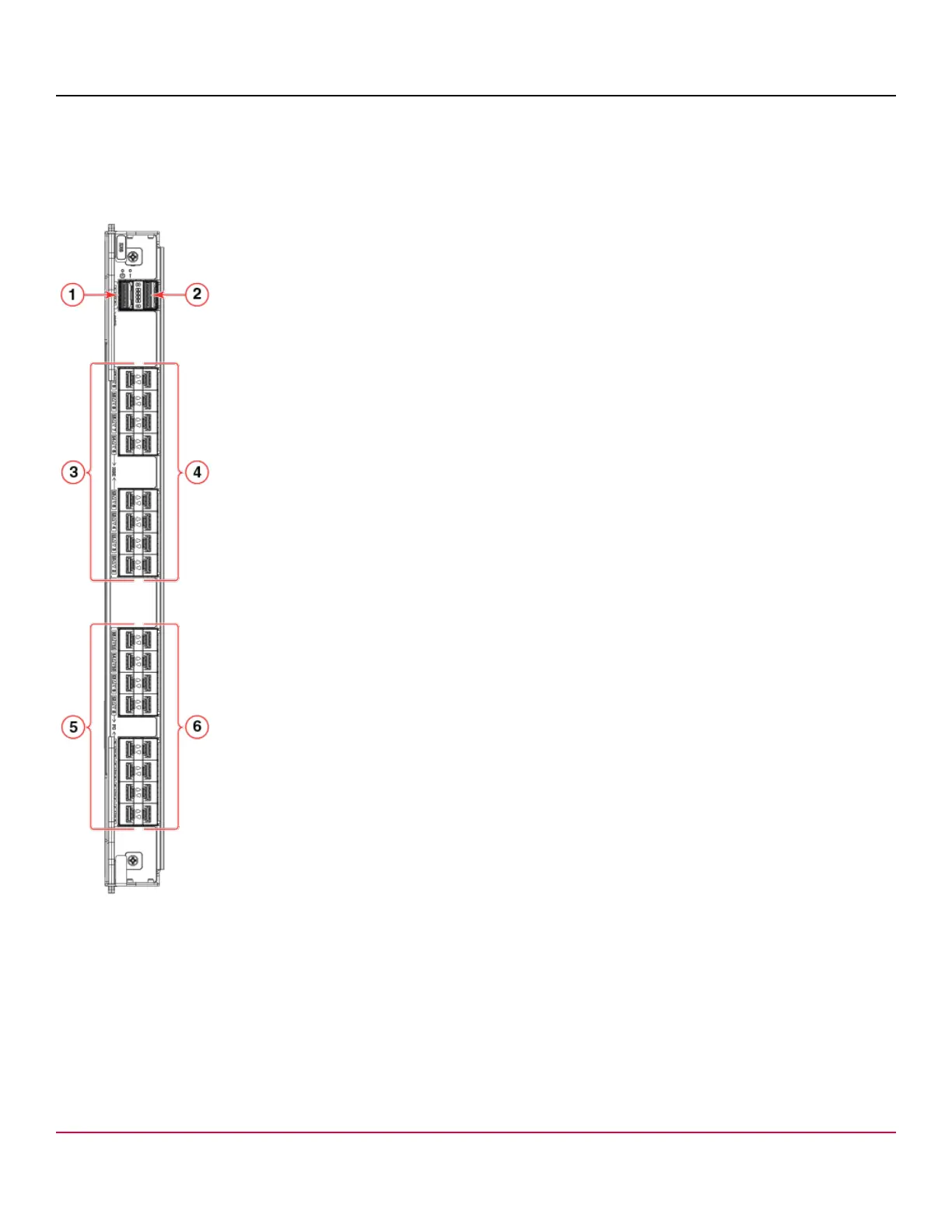

Figure 38: SX6 Extension Blade Port Numbering
1. 40GbE Port 0
2. 40GbE Port 1
3. 10/1GbE Ports 2–9 (bottom to top)
4. 10/1GbE Ports 10–17 (bottom to top)
5. FC Ports 0, 1, 2, 3, 8, 9, 10, 11 (bottom to top)
6. FC Ports 4, 5. 6, 7, 12, 13, 14, 15 (bottom to top)
Following are the eight-port Fibre Channel port groups for configuring trunk groups or "trunks":
X7-8-Install-IG100
118
