Broadcom Brocade X7-8 User Manual

X7-8-Install-IG100 Installation Guide Brocade
®
X7-8 Director Hardware Installation Guide
NOTE
If the airflow direction for a power supply assembly does not match the chassis airflow direction as stored on
WWN cards, the power supply will have a "fault" status. However, the LED operation for the power supply will
not indicate a fault.
Interpreting Fan Assembly LEDs
See the following figure and table to interpret the LED patterns on fan assemblies. The LED patterns may temporarily
change during POST and other diagnostic tests. The X7-8 Director has three fan assemblies.

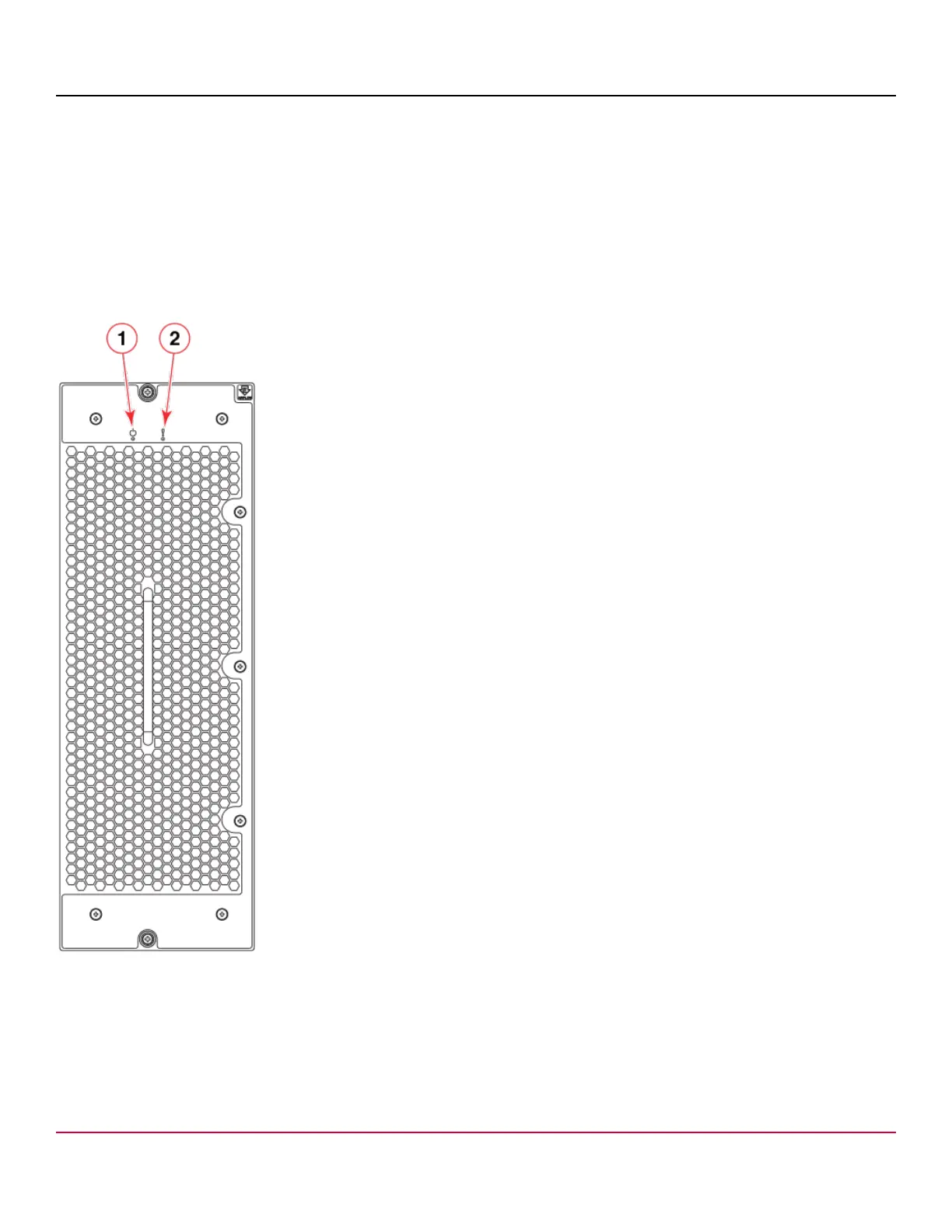

Figure 34: Fan Assembly LEDs
1. Power LED
2. Status LED
X7-8-Install-IG100
89
