X7-8-Install-IG100 Installation Guide
Brocade
®
X7-8 Director Hardware Installation Guide

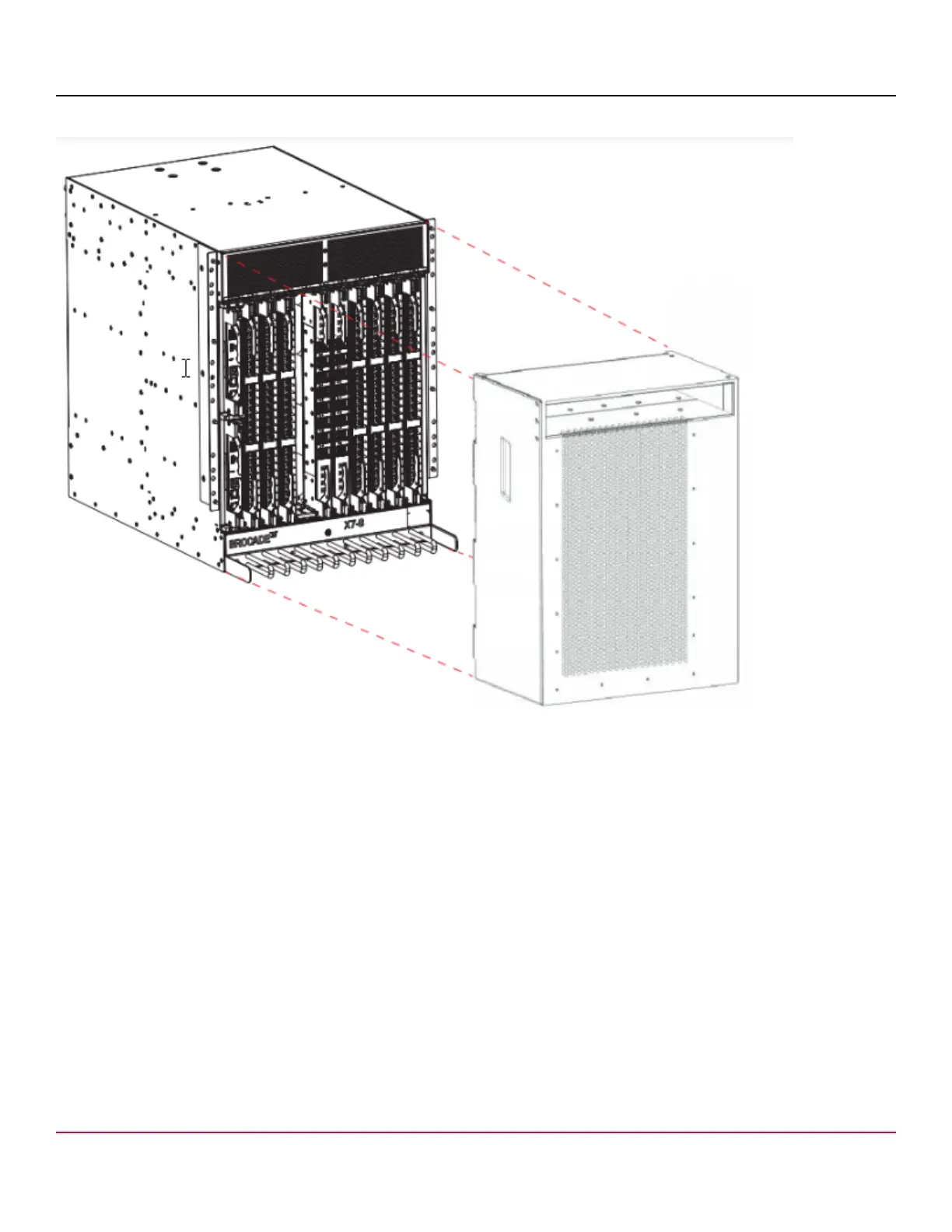

Figure 63: Removal and Replacement of the Chassis Door
Installing a Chassis Door
To install the door on the port side of the chassis, align the ball stud attachment holes located vertically on each side of the
rear of door with the ball studs on each chassis mounting ear. Push the door onto the chassis to snap it onto the studs.
X7-8-Install-IG100
185
