Monitoring the Device
Introduction
This device is engineered for high reliability, high availability, and enhanced serviceability (RAS) and requires no routine
operational steps or maintenance. This chapter provides information about determining the status of each component
using LEDs and CLI commands. Refer to the Brocade Fabric OS Web Tools Administration Guide and the Brocade Fabric
OS Administration Guide for additional information.
Interpreting FC32-X7-48 Port Blade LEDs
See the following figure and table to interpret the LED patterns for the FC32-X7-48 blade. The LED patterns temporarily
change during the POST and other diagnostic tests.

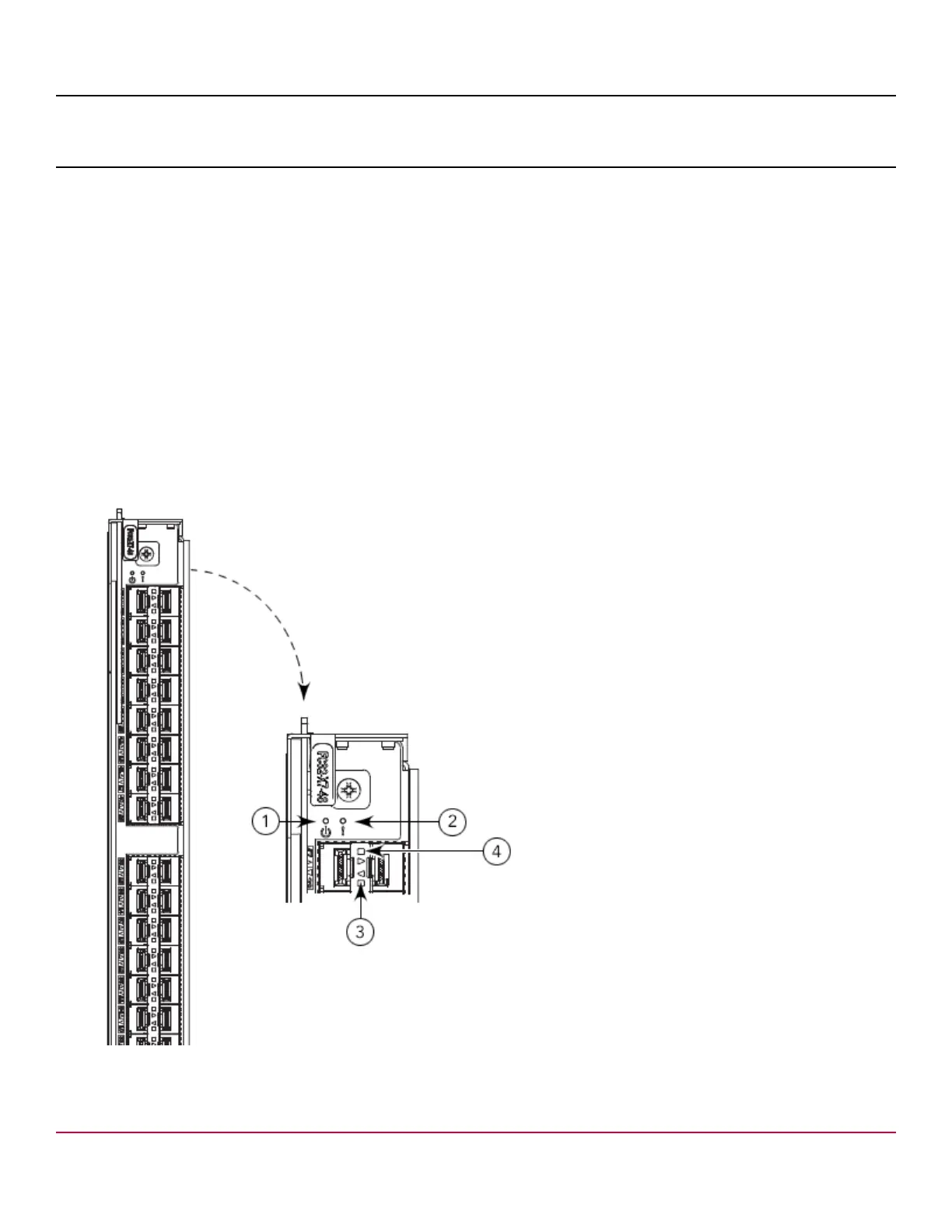

Figure 26: FC32-X7-48 Port Blade LEDs
1. Blade Power LED
2. Blade Status LED
