X7-8-Install-IG100 Installation Guide
Brocade
®
X7-8 Director Hardware Installation Guide

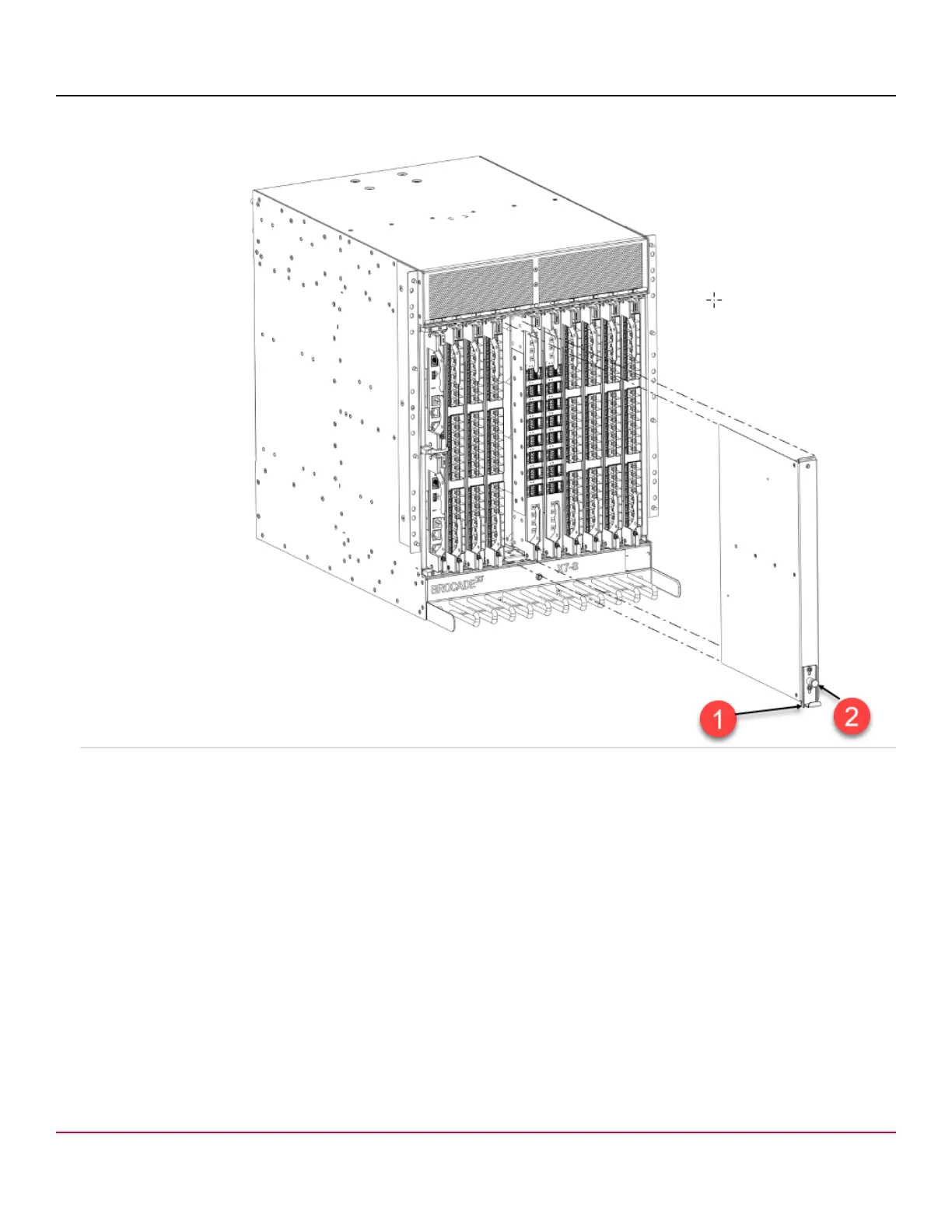

1. Latch Pull Tab
2. Latch Release
NOTE
Filler panels for Brocade DCX and Brocade DCX 8510 Directors are not interchangeable with filler panels for
X7 Directors.
Installing a Filler Panel
1. Pull out the spring-loaded latch release on the latch at each end of the cover using your thumb and forefinger and slide
the latches toward the center of the cover.
2. Orient the filler panel over the empty slot and slide it into the slot.
3. Pull out the spring-loaded latch release at each end it of the cover and slide each latch toward the end of the cover.
This action should slide the latches into the chassis and lock the panel in place. If not, the cover may not be seated
fully into the slot. Try unlatching both ends, pushing the cover firmly into the slot, and then latching both ends again.
X7-8-Install-IG100
180
Broadcom
