12. Continue pulling the blade from the slot by the blade edges. As you slide out the blade, place one hand under it for
support. Do not support the blade by the injector handles after removal.

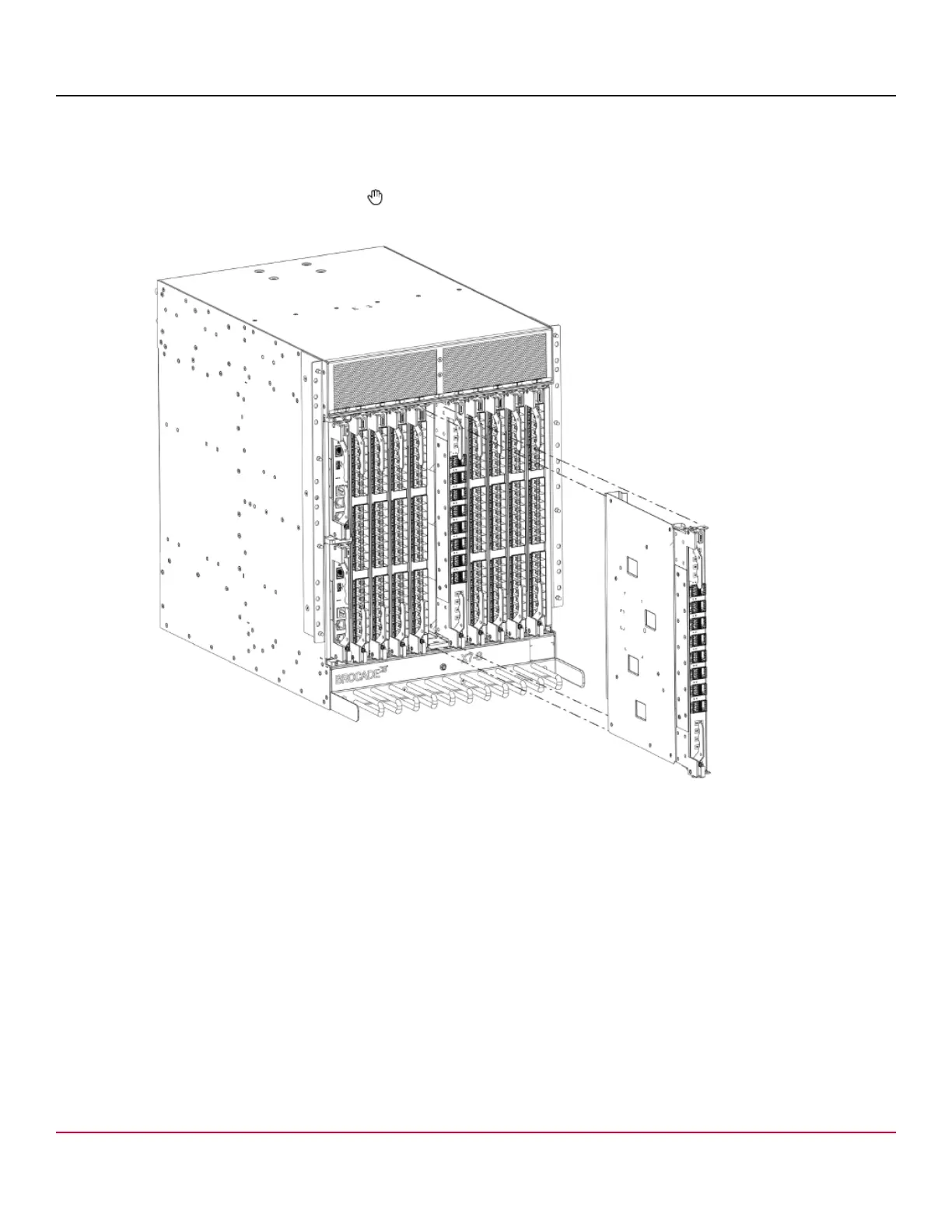

Figure 45: Removing and Installing a Core Routing Blade on an X7-8 Director
13. If the blade is not being replaced by another blade, install a filler panel and reinstall the chassis door. The filler panel is
required for proper chassis cooling. The door is required to meet EMI compliance.
Installing a Core Routing Blade
Complete the following steps to install a core routing blade into an empty slot.
