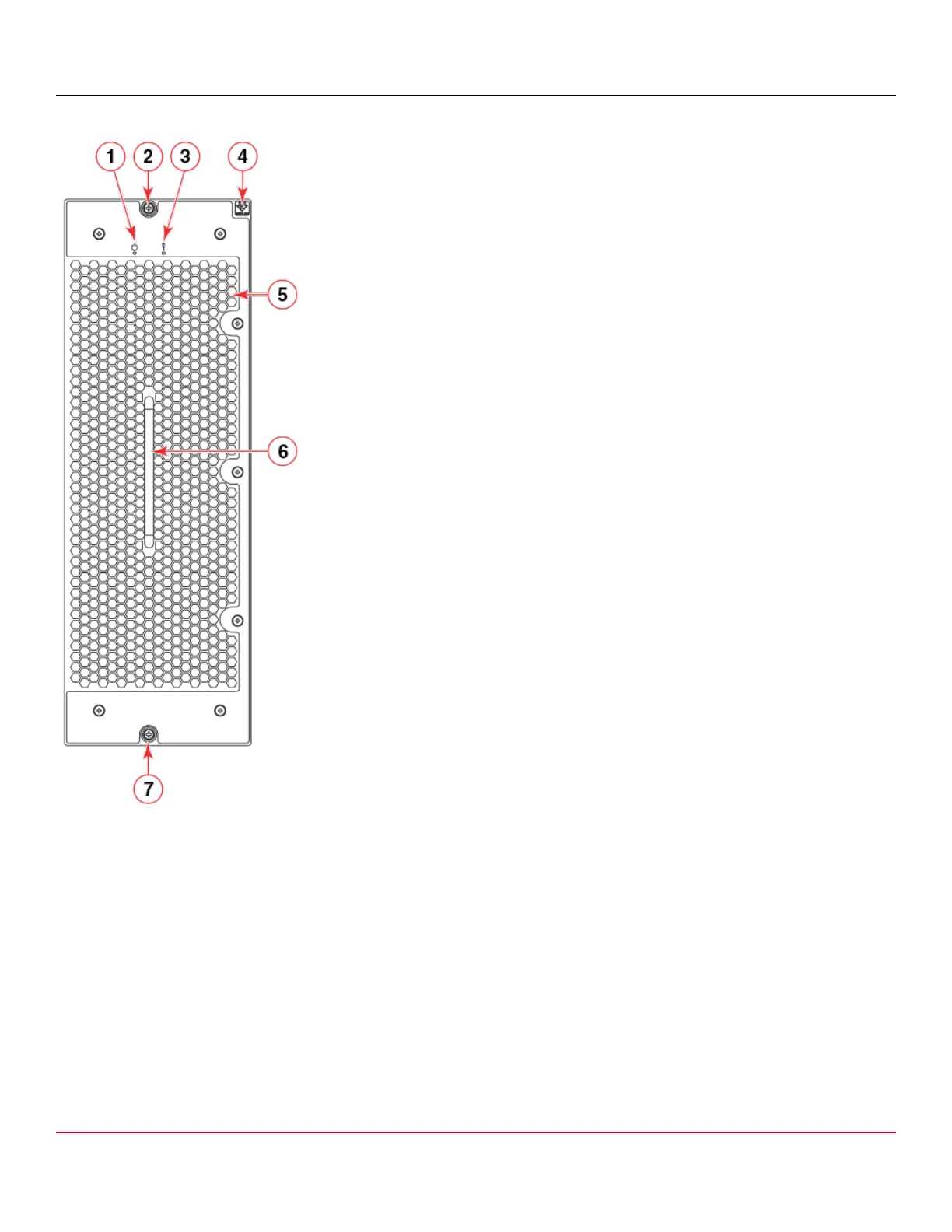

Figure 56: Fan Assembly
1. Power LED
2. Captive Screw
3. Status LED
4. Airflow Label
5. Air Vent
6. Handle
7. Captive Screw
Fan and Power Supply Airflow
All fans and power supply FRUs installed in this device must have either NPI (nonport-side intake) or NPE (nonport-
side exhaust) airflow. You must order a replacement FRU with the same part number (P/N) as the FRU being replaced
to provide the same airflow. The manufacturing P/N, located on the top of the FRU, contains either NPI or NPE. If a
mismatched power source or fan assembly is installed by mistake, a RASlog message occurs indicating that a mismatch
in fan or power supply airflow has occurred and the FRU is faulted.
