Removing the Cable Management Comb
Complete the following steps to remove the cable management comb:
1. Remove the cables from the cable management comb and rearrange the cables around the comb.
2. Unscrew and save the four (4) screws that hold the comb to the device. Support the comb to prevent it from falling.
3. Remove the cable management comb.

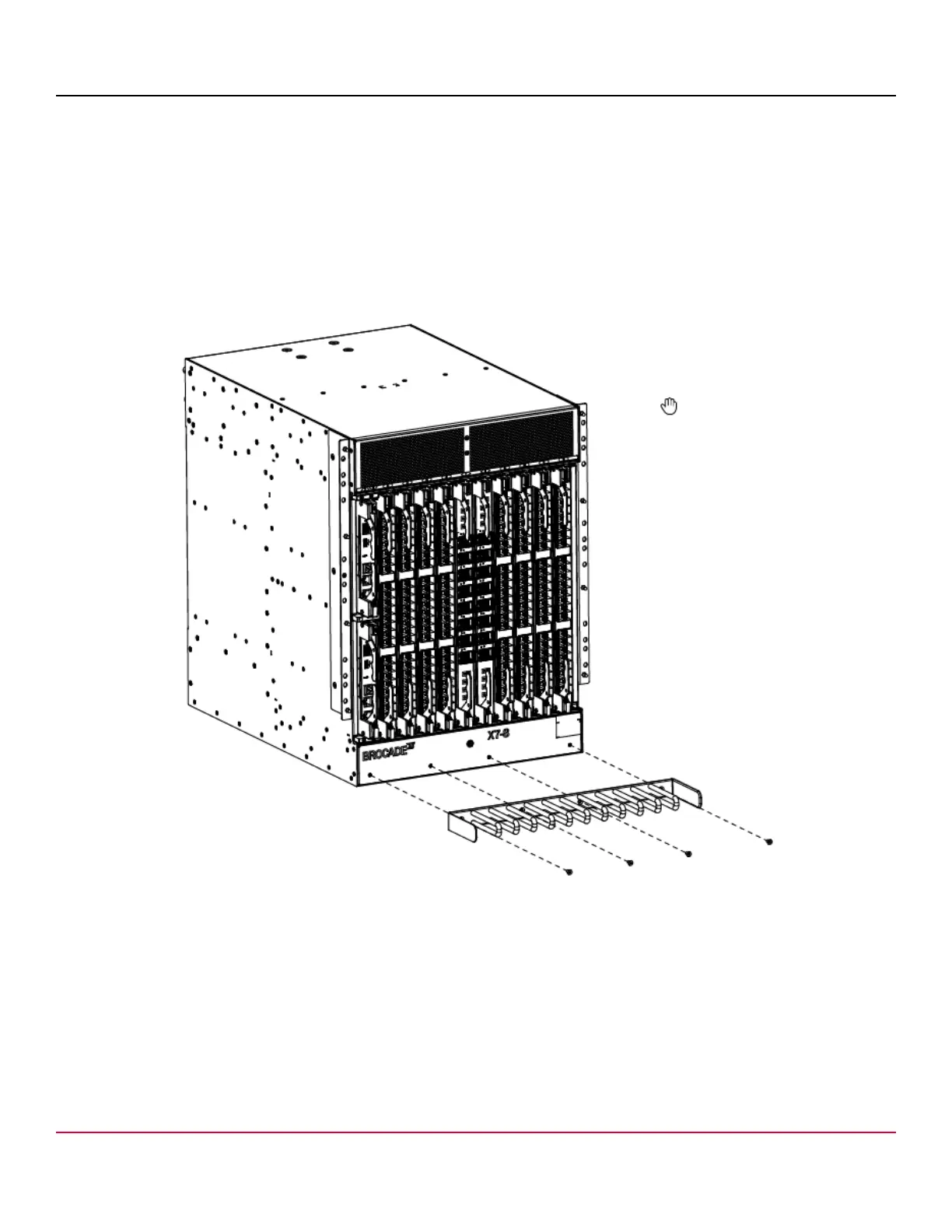

Figure 62: Removing or Installing the Cable Management Comb
Installing the Cable Management Comb
Complete the following steps to replace the cable management comb:
1. Position and tighten the four (4) screws to secure the cable management comb to the chassis.
2. Arrange the cables along with the cable management comb.
