X7-8-Install-IG100 Installation Guide Brocade
®
X7-8 Director Hardware Installation Guide

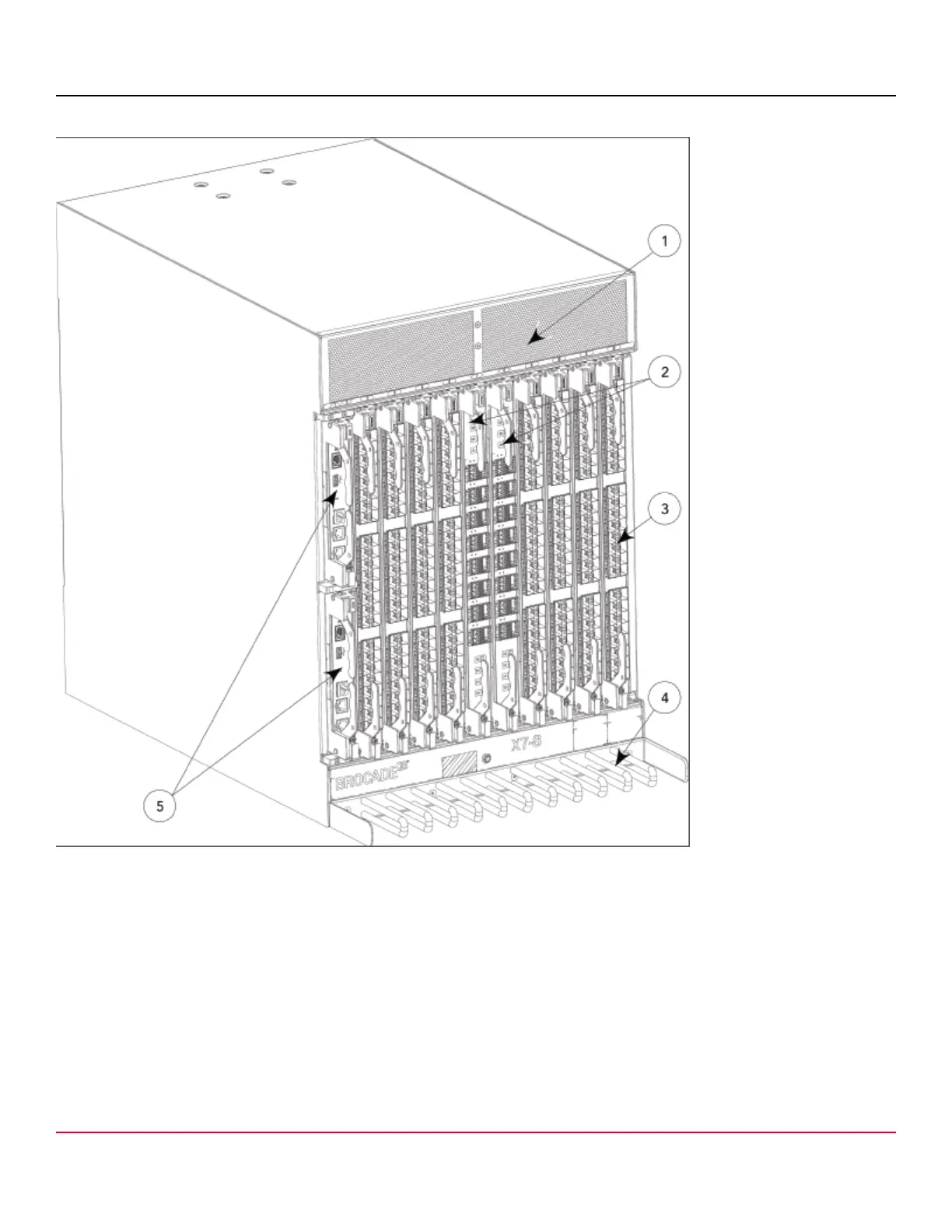

Figure 1: Port-Side View of X7-8 Director
1. Air Vent
2. Core Routing Blades (CR64-8)
3. Port Blades (FC64-48 or FC32-X7-48)
4. Cable Management Comb
5. Control Processor Blades (CPX7) – Slot 1 (upper), Slot 2 (lower)
NOTE
Depending on the fans and power supplies that are installed, airflow can be from the port side to the nonport
side of the chassis or from the nonport side to the port side of the chassis.
X7-8-Install-IG100
16
Broadcom
