X7-8 Director Hardware Installation Guide
NOTE
The equipment installation must meet NEC/CEC code requirements. Consult local authorities for regulations.
NOTE
Power is supplied to the device as soon as the first power supply is connected to a power source.
CAUTION
The maximum input voltage for connection to the HVAC/HVDC power supply should not exceed 305 VAC and
400 VDC .
1. If connecting to AC power, attach an AC power plug to the unterminated wires on the HVAC/HVDC power cord
that meets your facility and local code requirements. If connecting to DC power, verify how you will attach these
unterminated wires to your site's DC power terminal blocks. For more information on the HVAC/HVDC power cord
available for these power supplies, see Using HVAC/HVDC Power Cords.
2. Install all power supplies provided for your device if not already installed. See Installing a Power Supply for
procedures.
3. When installing the device in a rack, route power cables from power distribution units (PDUs) so they do not cover air
vents in chassis.
4. Before connecting the power cord to a power supply, first remove the cable restraint cover, if it is installed under the
power cord connector. Remove the cover by unscrewing the two torx head screws.
Save the retainer cover and screws for reinstallation after plugging in the power cord.
NOTE
When removing the metal cable restraint cover under the high voltage power supply inlet, remove the 2 Torx
head screws only.

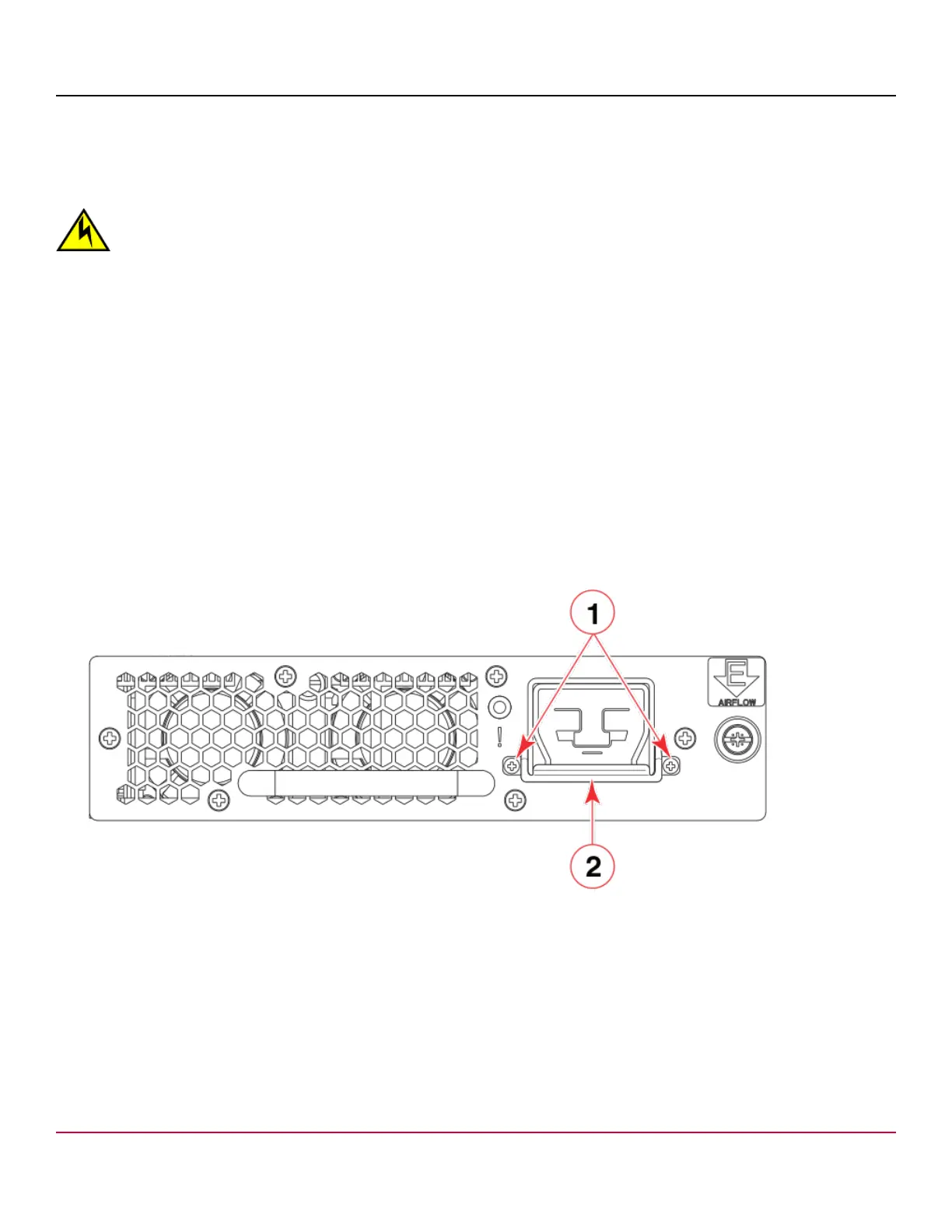

1. Torx head screws
2. Metal cable restraint cover
5. Connect power cords to installed power supplies.
The connector on the power cord is keyed so that it only fits one way into the power supply connector. Note that the
connector's latch should be positioned under the connector and will latch when the power cord connector is fully
inserted into the power supply.
