TT100 In-Line Viscometer Installation, Operation, Maintenance and Service Instructions
P/N M/97-520 B-1
Appendix B - Drawings

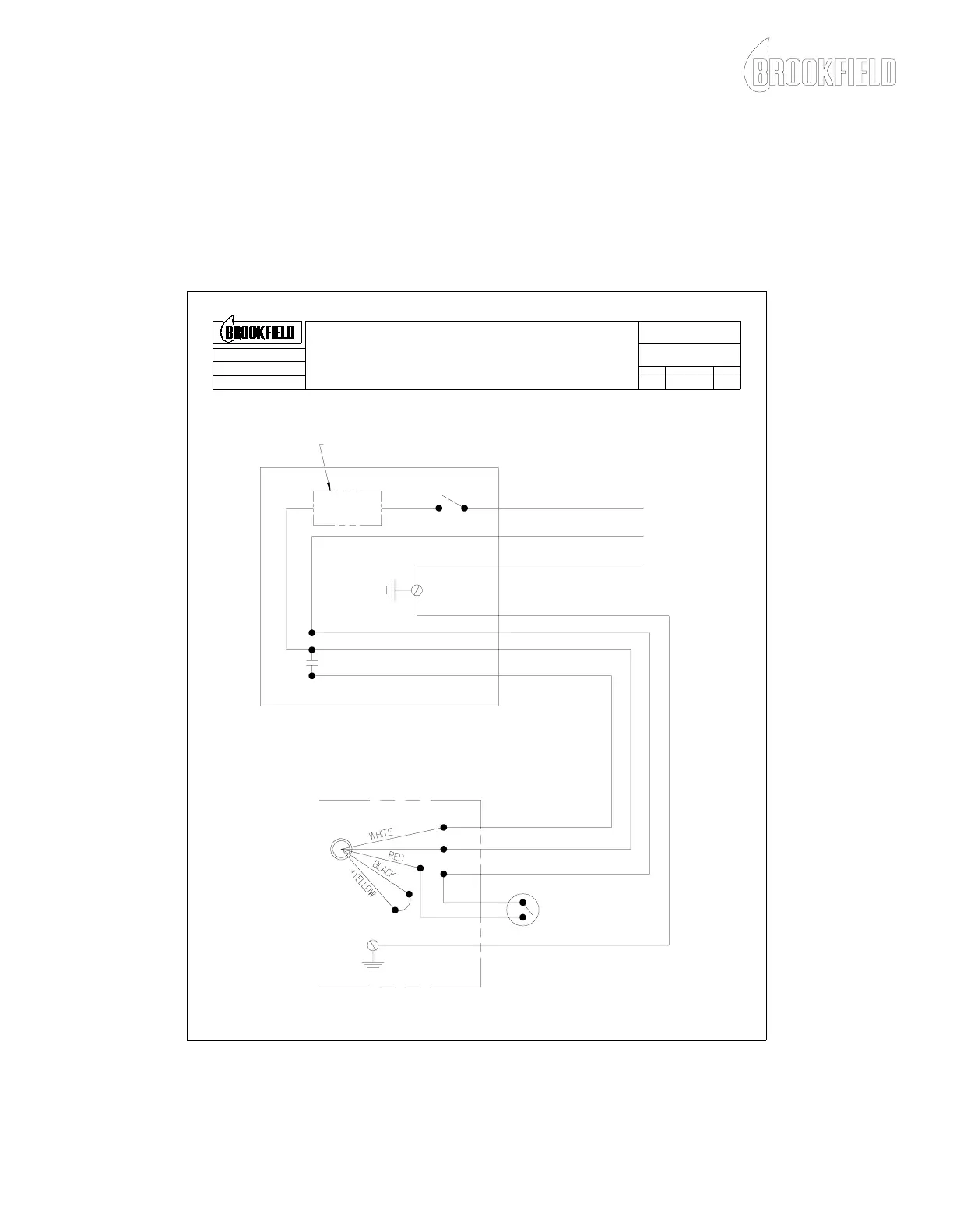

Figure B-1:NEMA 4 Oriental Motor Wiring Diagram
ON/OFF
SWITCH
BLACK LIVE
WHITE NEUTRAL
GREEN EARTH GROUND
*BLUE
WHITE
BLACK
RED
OPTIONAL
FENWAL
"SNAP DISC"
SWITCH
GREEN
115V/60HZ ORIENTAL MOTOR WIRING
C.C.W. ROTATION VIEWING FROM SHAFT END
* REVERSE BLUE & YELLOW WIRES
FOR OPPOSITE ROTATION.
RED
BLACK
WHITE
CAPACITOR 3 M.F.D.
115V/50HZ
OR
115V/60HZ
INPUT
OPTIONAL CIRCUIT BREAKER
SWITCH ASSEMBLY
DOCUMENT NO.
PAGE NO.
REV. NO.
TITLE
CREATED BY
APPROVED BY
DATE CHK. BY
DATE
WIRING DIAGRAM FOR NEMA 4
CA1-001
1 0F 1
11/12/91
ORIENTAL MOTOR
KFM
DAB
1 11/3/92
