Appendix B - Drawings
B-2 P/N M/97-520

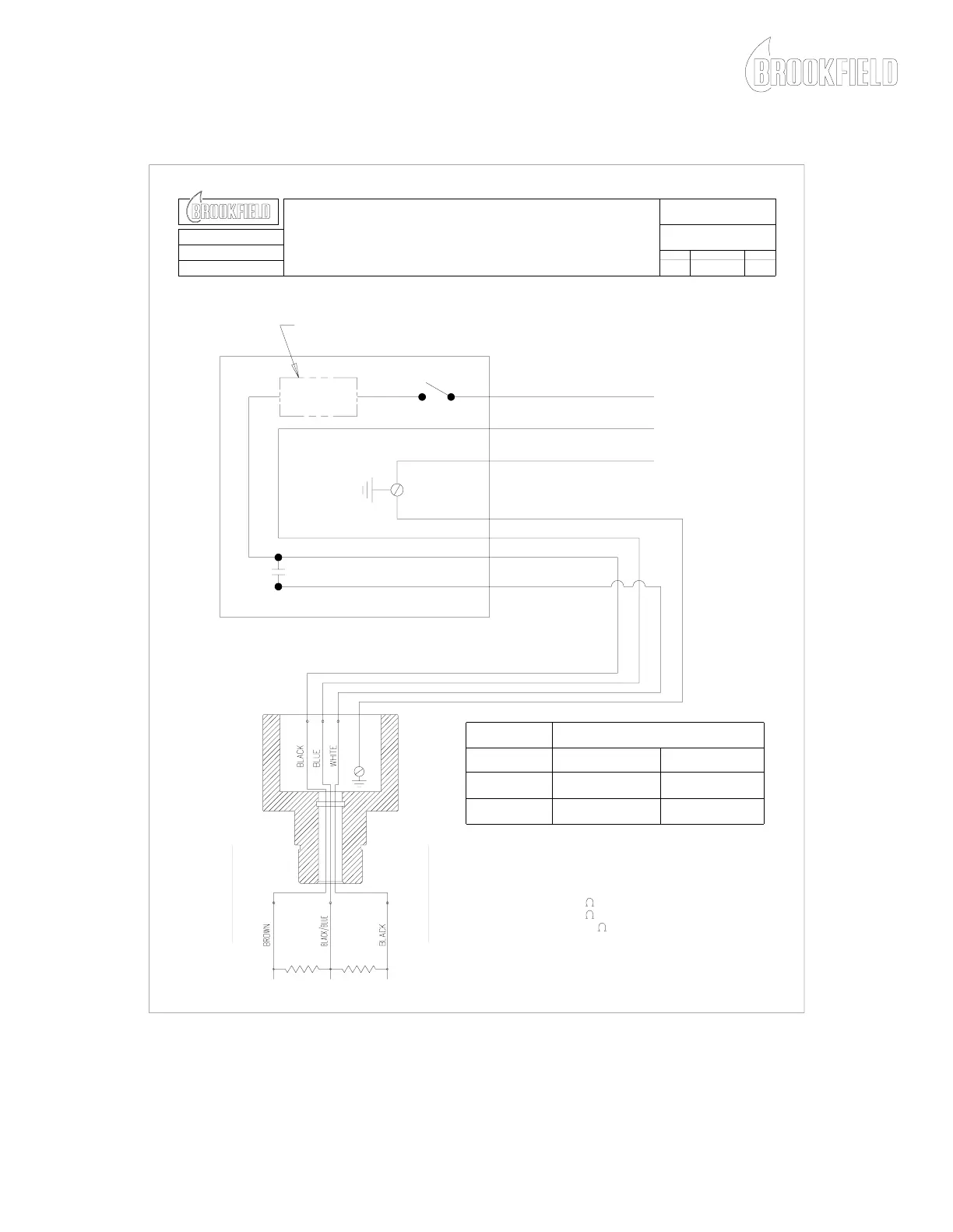

Figure B-2:Groschopp Motor Wiring Diagram (Factory Mutual Housing)
BLACK LIVE
WHITE NEUTRAL
GREEN
ON/OFF
SWITCH
OPTIONAL CIRCUIT BREAKER
SWITCH ASSEMBLY
115V/50/60HZ
INPUT
CAPACITOR (SEE TABLE)
NOTE: TO REVERSE MOTOR ROTATION, REVERSE THE LEADS
WHICH ATTACH TO THE BLACK & WHITE
EARTH GROUND
MOTOR
VOLT./FREQ.
R.P.M.
CAPACITOR
115/50/60
1500/1800 3000/3600
12 mfd. 20 mfd.
LEADS FROM THE MOTOR.
3 4/30/99
R
NOTE 1: VERIFY MOTOR WIRING CONFIGURATIONS
AS FOLLOWS.
BLACK TO BLUE = R
BLUE TO WHITE = R
BLACK TO WHITE = 2R
NOTE 1
DOCUMENT NO.
PAGE NO.
REV. NO.
TITLE
CREATED BY
APPROVED BY
DATE CHK. BY
DATE
MODEL TT100 & TT200 WIRING DIAGRAM
FOR 115 VAC GROSCHOPP MOTOR
FACTORY MUTUAL APPROVED (EXPLOSION PROOF)
CA1-035
1 OF 1
KFM
DJO
8/30/94
R
MOTOR
(TT-100-364) (TT-100-152)
TT100-383 TT100-384
