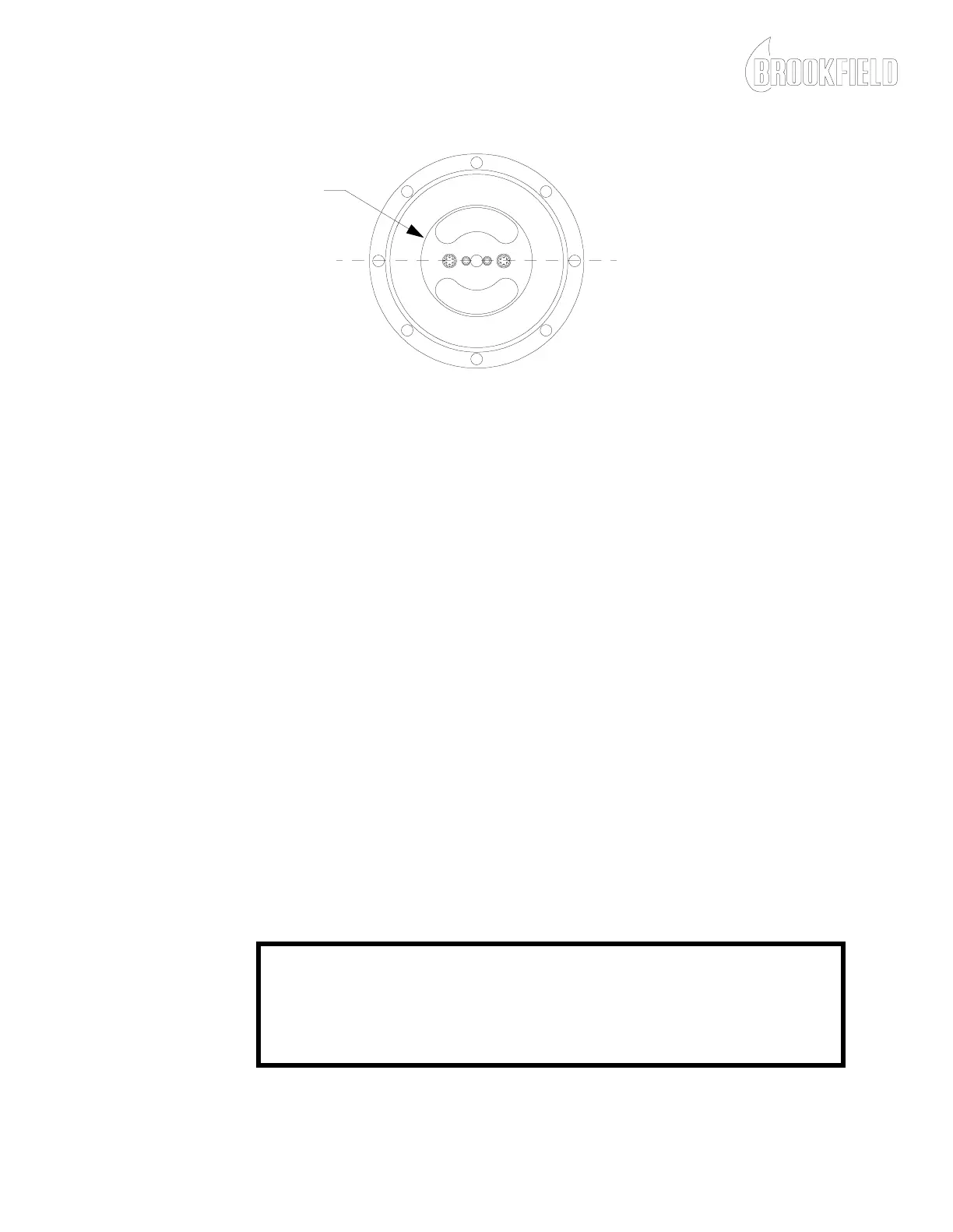

Figure 6-7:Torsion Element and Endcap Alignment
5. Insert the mounting screws and using a hex wrench, rotate the
screws into position but do not tighten them.
6. Place the insulator centering fixture (P/N TT-100-101TY) into the
insulator.
7. Repeat steps 4 - 6 for each insulator.
8. Using a hex wrench, tighten the mounting screws and remove the
centering fixture.
9. Place an O-ring on the Microsyn housing.
10. Place a second teflon gasket on the insulator.
11. Carefully slide the torsion element center wire through the sapphire
jewel in the Microsyn field coil until it contacts the insulator.
12. Insert the mounting screws into the holes and tighten them using a
hex wrench.
NOTE: Do not tighten the armature clamping nut in step 13.
13. Install the armature clamping nut on the armature assembly.
14. Carefully slide the armature assembly down the torsion element
center wire until it touches the sapphire jewel.
CAUTION
The sapphire jewel may be damaged if the height of the armature assembly
is not set properly. Non-repeatability of signal will result.
