TT100 In-Line Viscometer Installation, Operation, Maintenance and Service Instructions
P/N M/97-520 6-15
15. Set the height of the armature assembly as follows:
a. Place the armature wrench P/N TT100-1T, on the armature
hold the armature in place as shown in Figure 6-4.
b. Using a small ruler to measure, lift the armature assembly
1/16 of an inch.
c. Using a 9/32 inch wrench, tighten the armature clamping
nut.
16. Carefully install the stator and install the mounting screws but do
not tighten.
NOTE: The stop posts must be centered within the holes on the stator as
shown in Figure 6-8 to ensure proper calibration and operation of the
viscometer.

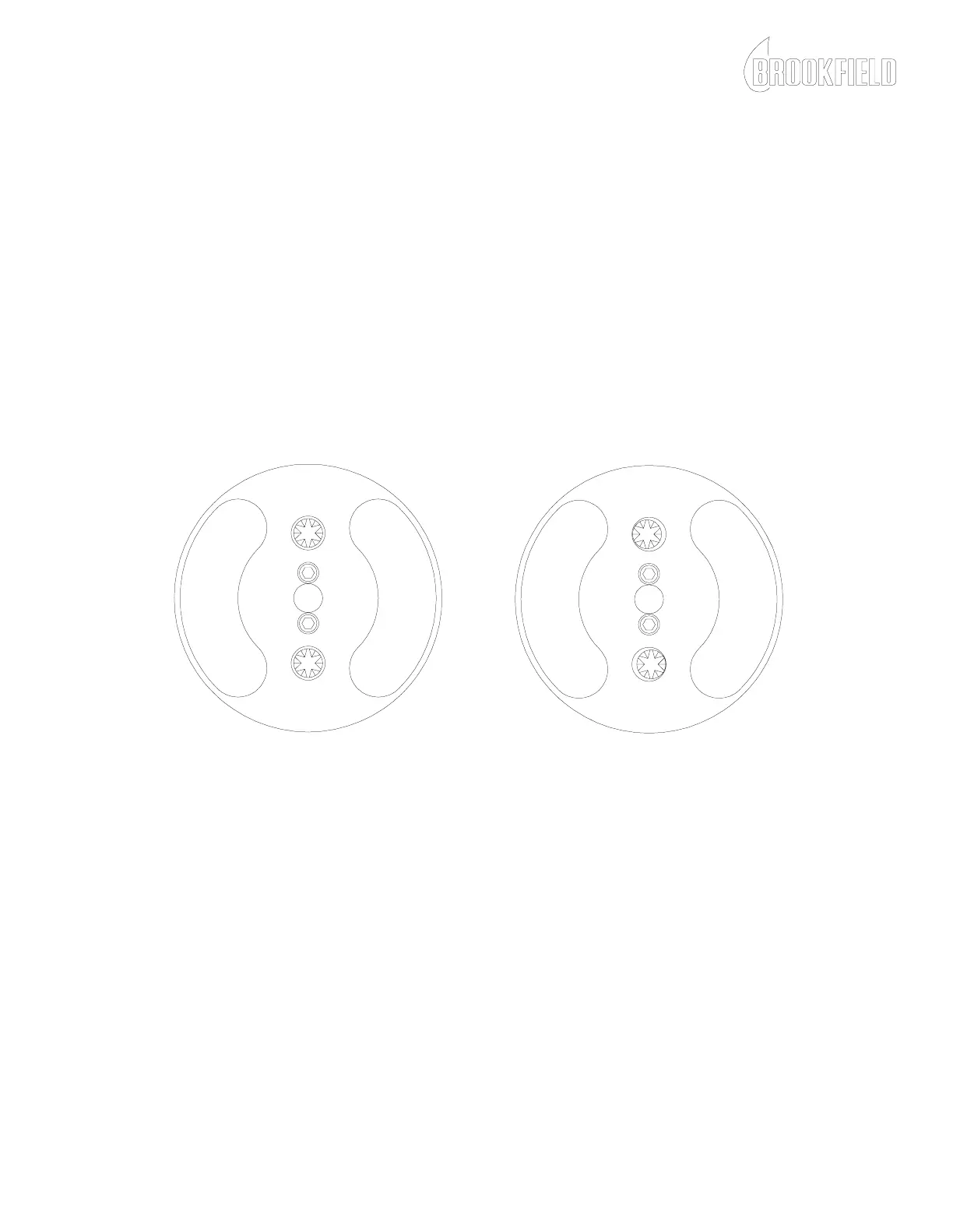

Figure 6-8: Stator Installation and Stop Post Centering
17. With the stator mounting screws loose, rotate the stator so the stop
posts are aligned in the center of the holes in the stator as shown in
Figure 6-8. Tighten the stator mounting screws and check the
alignment of the stop posts.
NOTE: If the stop posts will not align in the center of the stator holes,
remove the mounting screws and rotate the stator 180º. Install the screws
and repeat step 17. The stop posts may also be bent slightly to insure
correct alignment. Refer to Appendix A and contact Brookfield
Engineering Laboratories if the stop posts cannot be properly aligned.
18. Install the O-ring into the sensing endcap and turn the assembly
over.
CORRECT
INCORRECT
