42

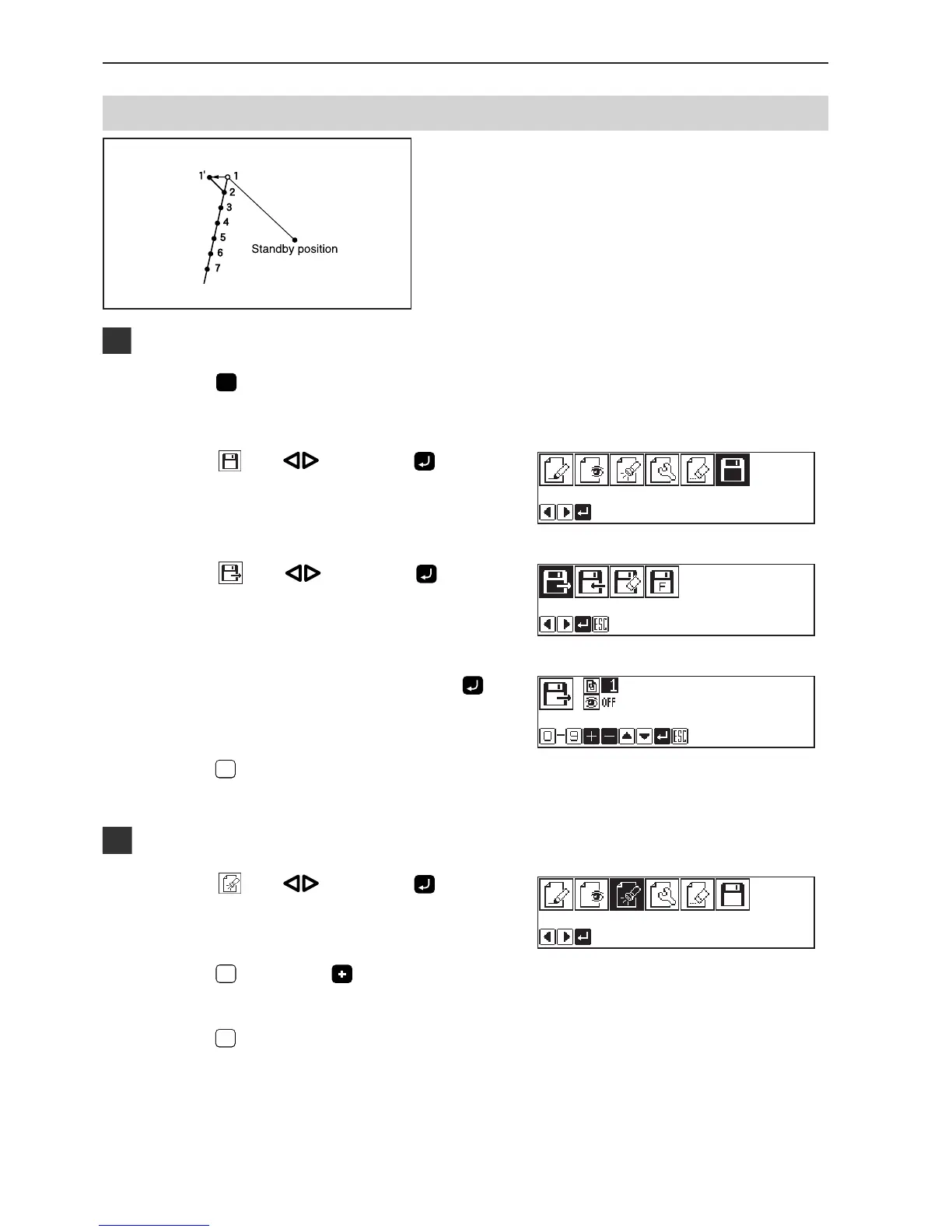

Chapter 2 Programming with Help Function
Changing the first stitch position
The position of the sewing start position is changed.
The example in the left is used for explanation of
moving the sewing start position from 1 to 1'.
1
Calling data
1.
Press
P
.
The work clamp comes down and the programmer screen is
displayed.
2.
Select
with
, then press
.
3.
Select
with
, then press
.
4.
Input the program number, then press
.
5.
Press
ESC
ESC
.
2
Moving to position 1
1.
Select
with
, then press
.
2.
Press
1
, then press
.
The needle moves to the start position.
3.
Press
ESC
ESC
.
42
44
