Brother DCP-L5652DN Service Manual

2-87
Confidential

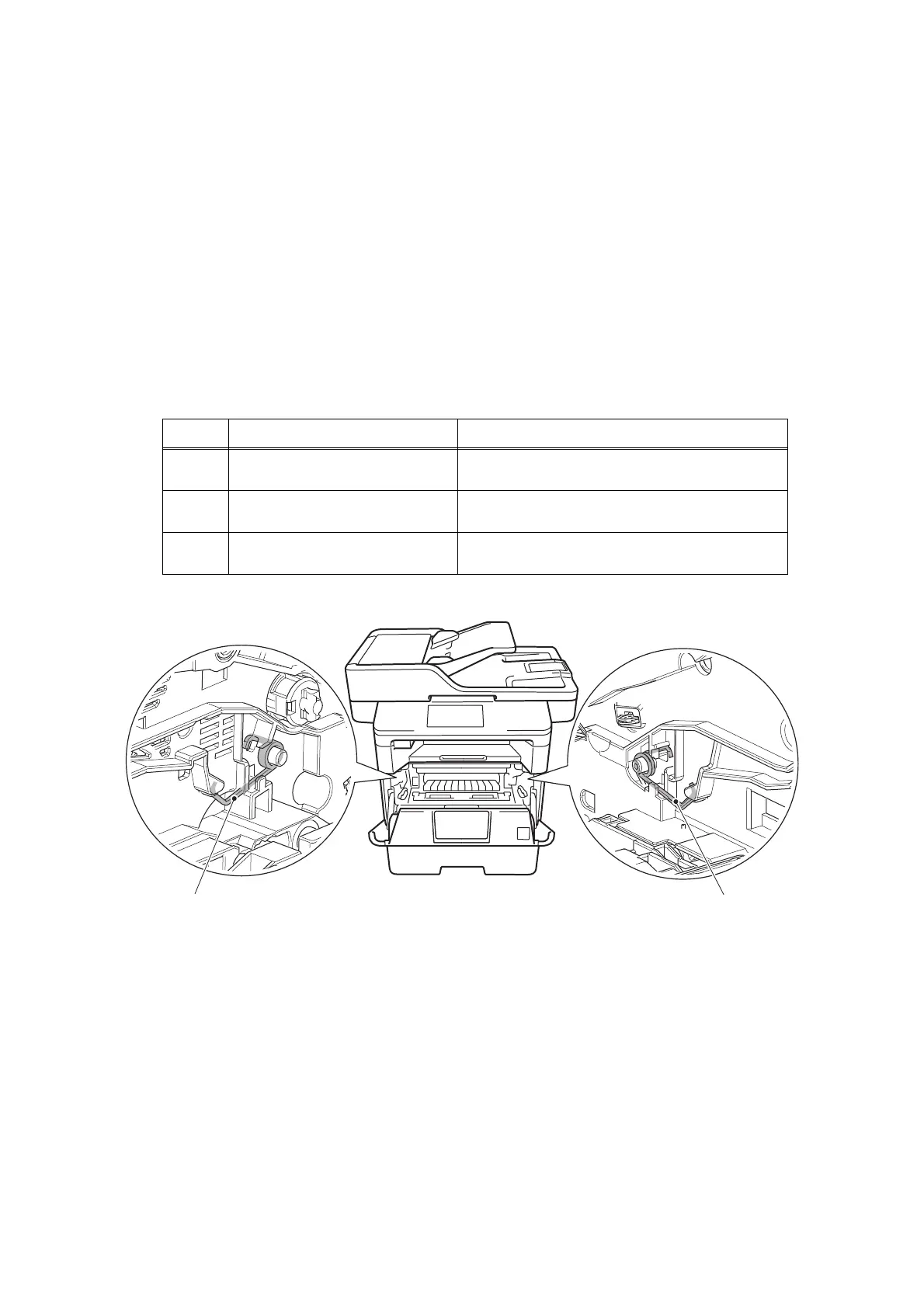

4.2.7 Paper is fed at an angle
Fig. 2-11
<User Check>
• Check that the paper is set in each paper tray correctly.
• Flip over the paper in each paper tray or rotate the paper 180°.
• Adjust each paper guide according to each paper size.
• Check that the thickness of the paper is 60 to 120 g/m
2
for paper tray 1 to 5,
and 60 to 200 g/m
2
for MP tray.
• Check that there is not too much paper set in each paper tray.
• Check that each type of paper is appropriate.
• Clean each paper pick up roller.
• Check that the green envelope lever is not lowered on only one side.
• Replace the drum unit.
• Replace the toner cartridge.
Step Cause Remedy
1
Tray guide coming off on the
machine side
Reattach the tray guide on the machine side.
Refer to the figure below.
2
One-side abrasion of the paper
pick up rollers
Replace the PF kit.
3
Damaged gears in the paper
feeding system
Replace the main frame L ASSY.
Tray guide
Tray guide

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
