Brother DCP-L5652DN Service Manual

3-115
Confidential
9.43 MP paper empty sensor PCB ASSY / MP paper empty
actuator 1 / MP paper empty actuator 2
(1) Remove the five taptite bind B M4x12 screws. Remove the main frame R from the paper
feed frame ASSY, and pull out the low-voltage power supply harness from the hole of the
main frame R.

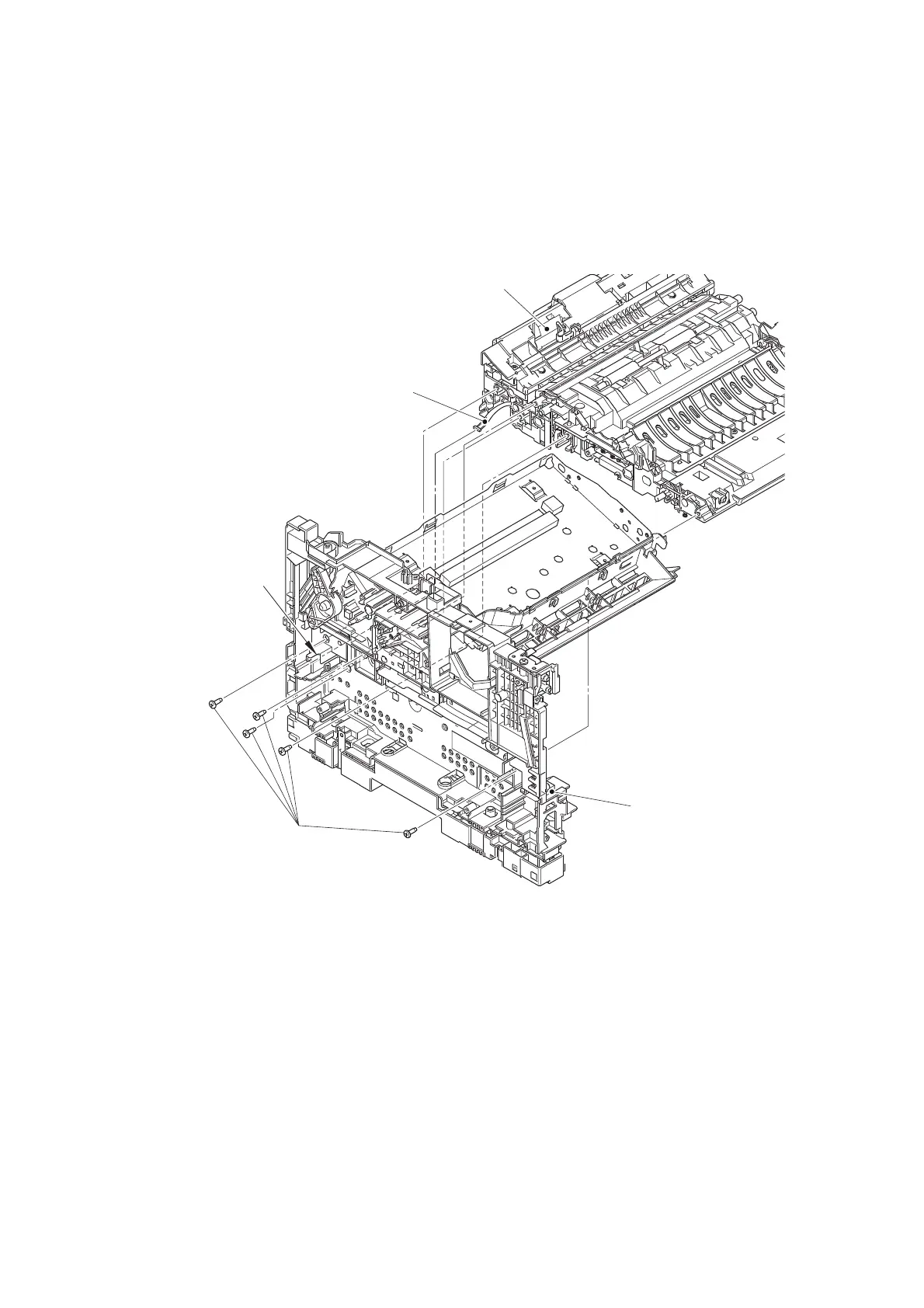

Fig. 3-116
Taptite bind B M4x12
Main frame R
Low-voltage power supply harness
Hole
Paper feed frame ASSY

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
