Brother DCP-L5652DN Service Manual

3-106
Confidential
9.37 Back cover/duplex tray sensor
(1) Release the back cover/duplex tray sensor harness from the securing fixtures.
(2) Release the two hooks, and remove the back cover/duplex tray sensor from the main
frame L ASSY.

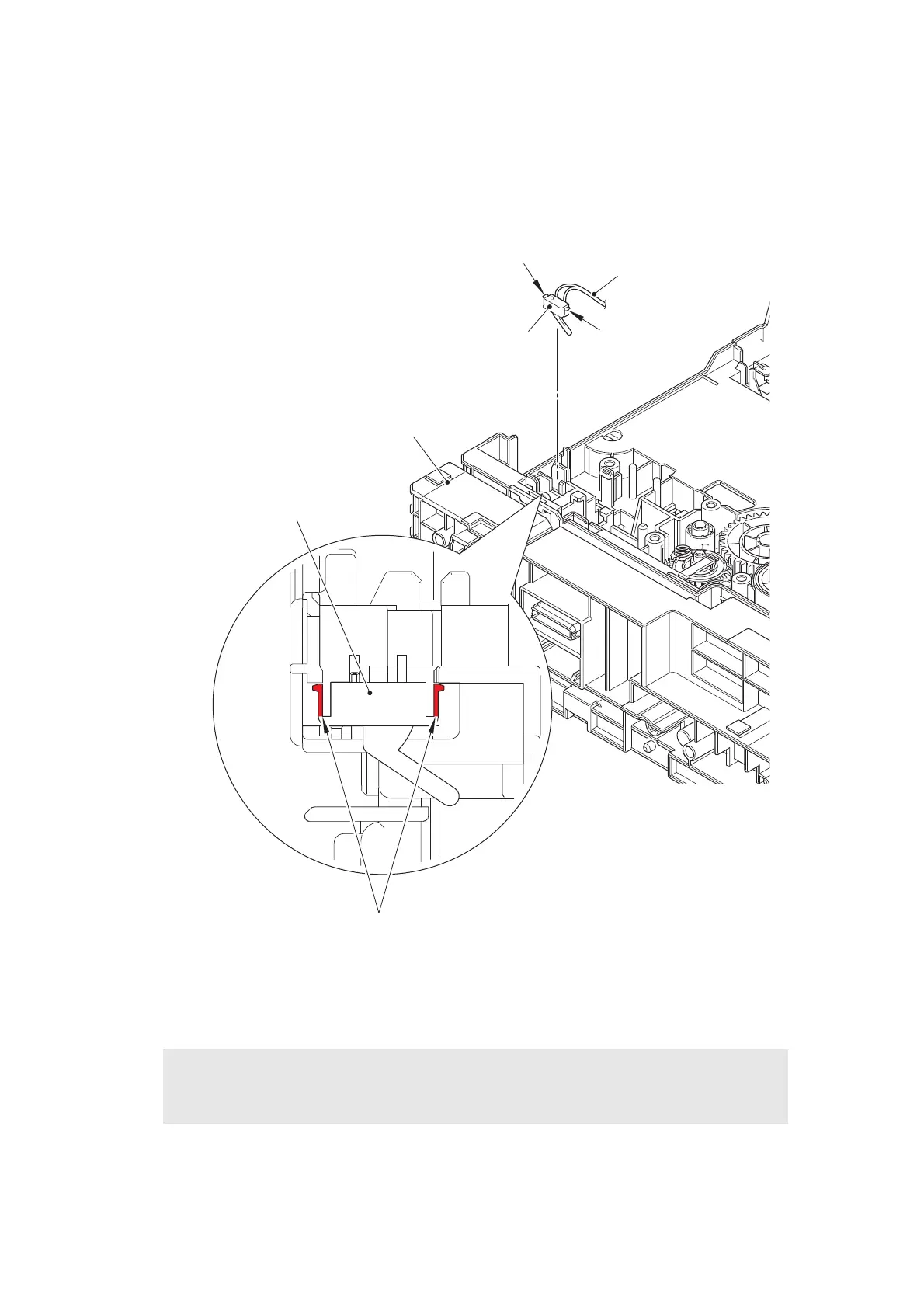

Fig. 3-106
Harness routing: Refer to “10. Left side of the machine”.
Assembling Note:
• When connecting the back cover/duplex tray sensor, insert it at an angle from the right
side.
Hook
Hook
Hooks
Back cover/duplex tray sensor
Main frame L ASSY
Back cover/duplex tray sensor
Back cover/duplex tray sensor harness

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
