Brother DCP-L5652DN Service Manual

3-91
Confidential
9.26 Relay front PCB ASSY
(1) Release the relay front harness from the securing fixtures.
(2) Release the two hooks, and remove the front cover sensor. Release the front cover
sensor harness from the securing fixtures.
(3) Release the two hooks, and remove the relay front PCB ASSY. Disconnect all harnesses
from the relay front PCB ASSY.

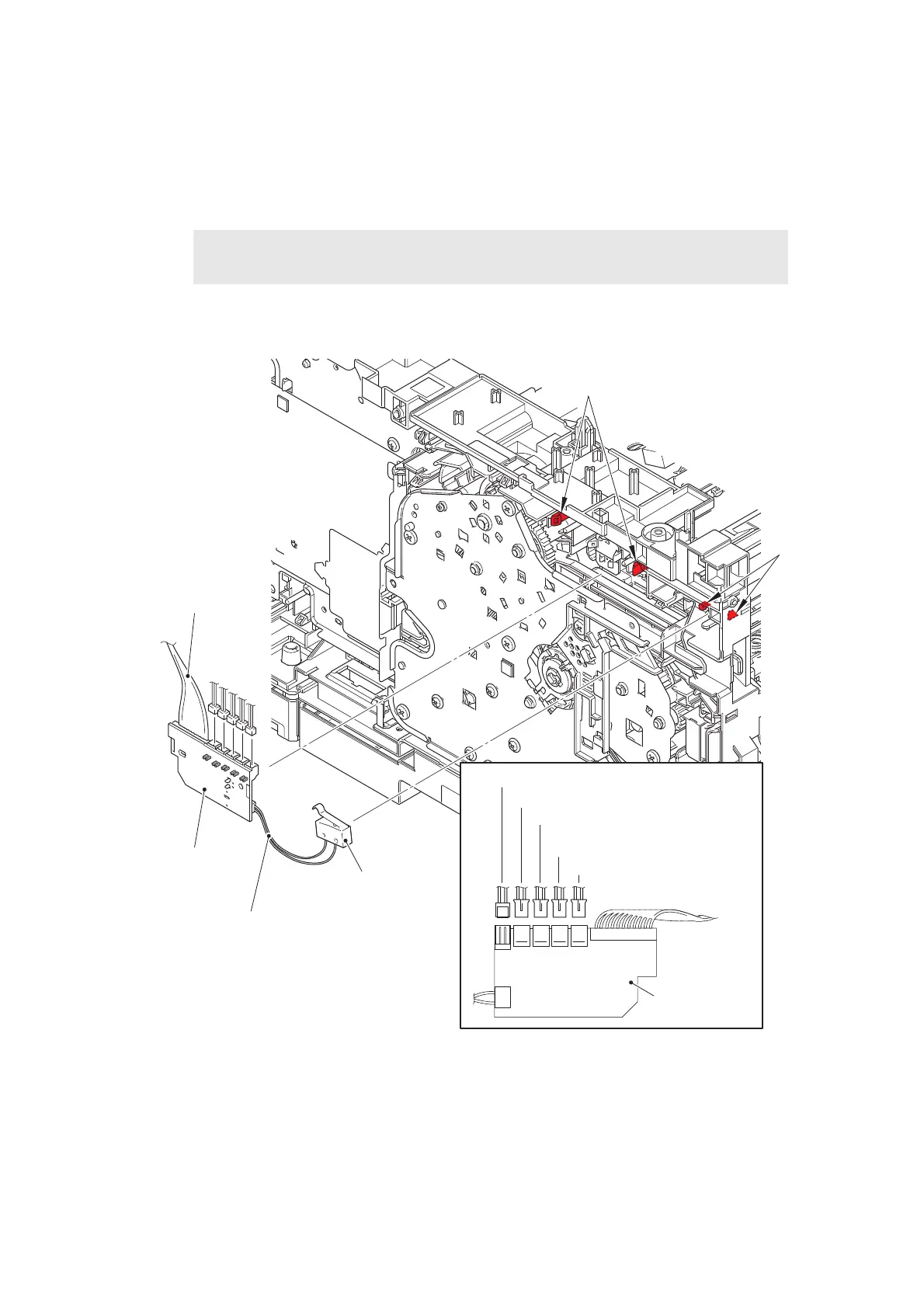

Fig. 3-91
Harness routing: Refer to “10. Left side of the machine”.
Note:
• When removing the front cover sensor, push it from the rear to remove it.
Relay front PCB ASSY
Hooks
Relay front
PCB ASSY
Hooks
Toner amount detection sensor
PCB harness (light reception)
Registration clutch harness
T1 pickup clutch harness
MP solenoid harness
Develop clutch harness
Front cover sensor
Front cover sensor harness
Relay front harness

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
