Brother DCP-L5652DN Service Manual

3-9
Confidential

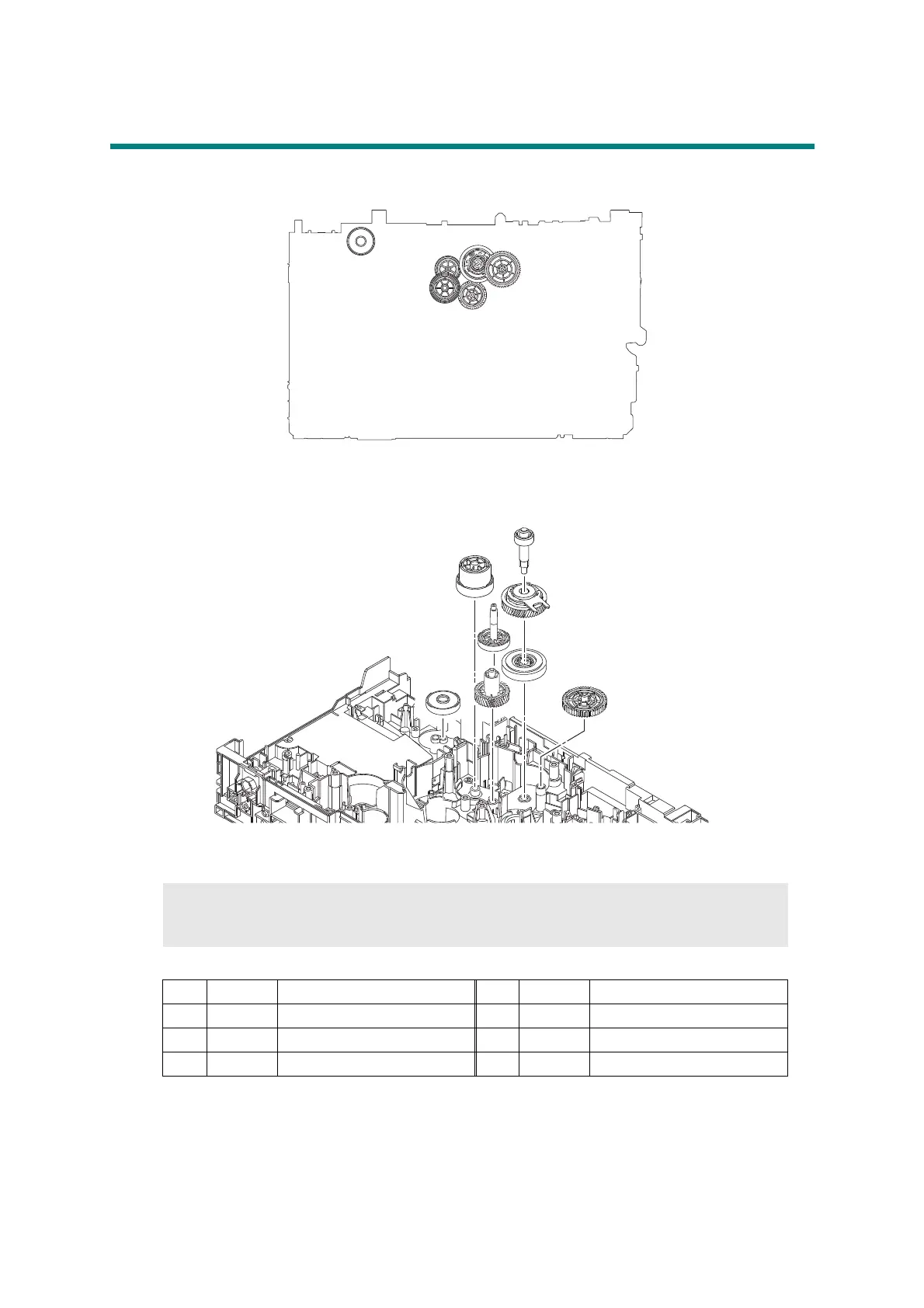

6. OVERVIEW OF GEARS
<Layout view>
Fig. 3-8
<Development view>
Fig. 3-9
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
1 LY4409
Develop one way clutch 53 5 LY4408 Develop clutch 51R
2 D001D0 Gear 38 DEV 6 LY4405 Develop idle gear 53
3 D001D2 Sun gear 50R42R18 DEV 7 LY4407 Develop shaft gear 22
4 LY4406 DEV high idle gear 39L 8 D000XL Eject gear
6
4
8
3
2
1
5
7
6
4
8
3
2
1
5
7
77
55
22
11
44
66
33
88
7
5
2
1
4
6
3
8

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
