Brother DCP-L5652DN Service Manual

2-11
Confidential

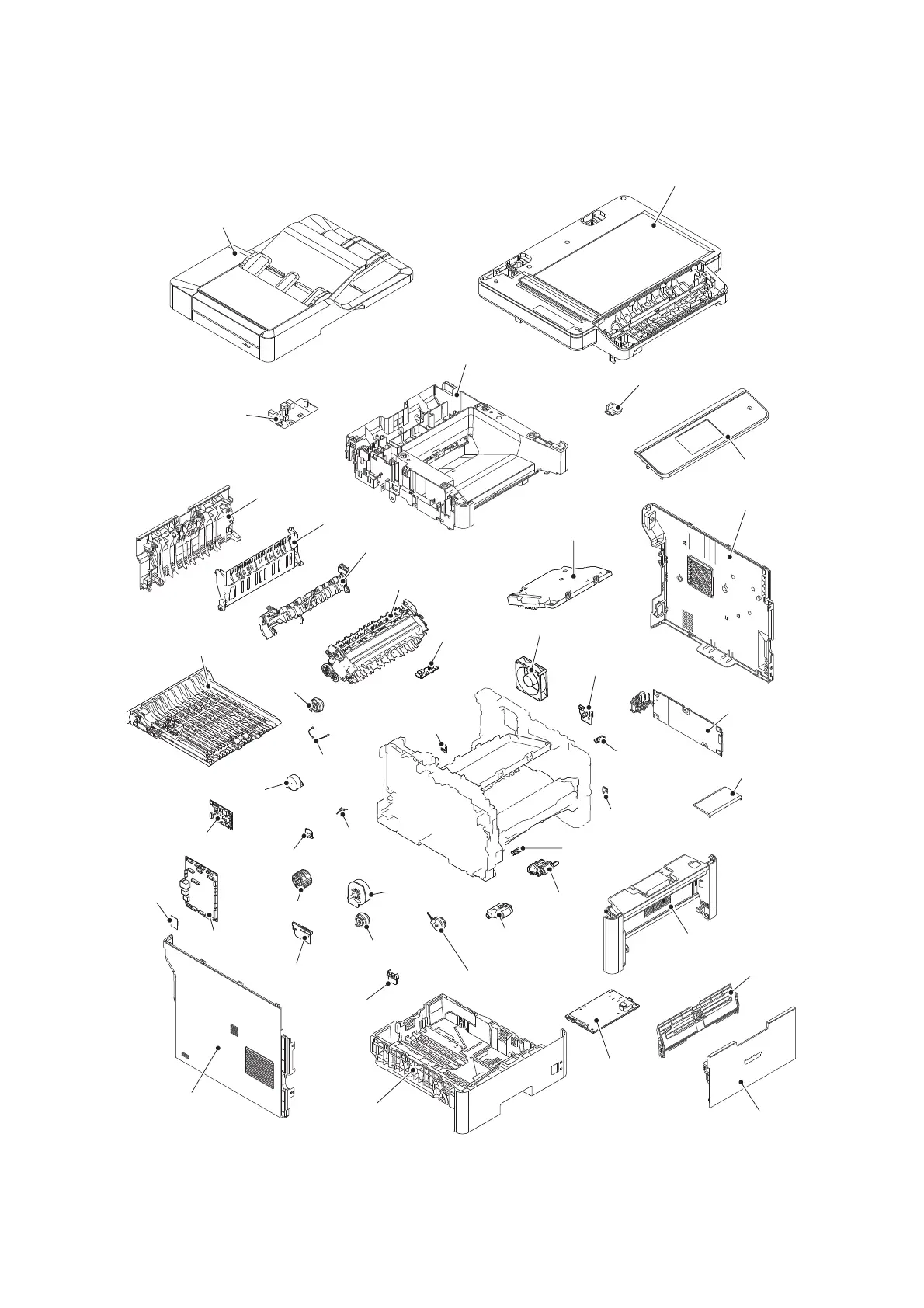

2.5 Main Components
Fig. 2-7
Back cover
Outer chute
Fuser cover
Fuser unit
Laser unit
Side cover R
Main fan
Toner amount detection
sensor PCB (light emission)
Eject sensor
PCB ASSY
MP feed frame
Side cover L
Wireless
LAN PCB
Panel PCB ASSY
Eject motor
External
temperature/
humidity
sensor
Fuser drive gear 39
Relay front PCB ASSY
Develop
clutch 51R
Duplex tray
Paper stopper
Front cover ASSY
MP cover ASSY
High-voltage power
supply PCB ASSY
PF roller
holder ASSY
MP roller
holder ASSY
T1 pickup clutch
LT/TT connector
Paper tray
Paper feed
motor
Registration clutch
Back cover/
duplex tray
sensor
Internal
temperature
sensor
Low-voltage power
supply PCB ASSY
Main PCB ASSY
T1 paper feed
sensor PCB ASSY
MP paper empty sensor
PCB ASSY
Paper empty sensor
PCB ASSY
Toner amount
detection sensor
PCB (light reception)
Document scanner unit
USB host PCB ASSY
Joint cover ASSY
ADF unit
Modem PCB ASSY
Panel unit

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
