Brother DCP-L5652DN Service Manual

3-37
Confidential

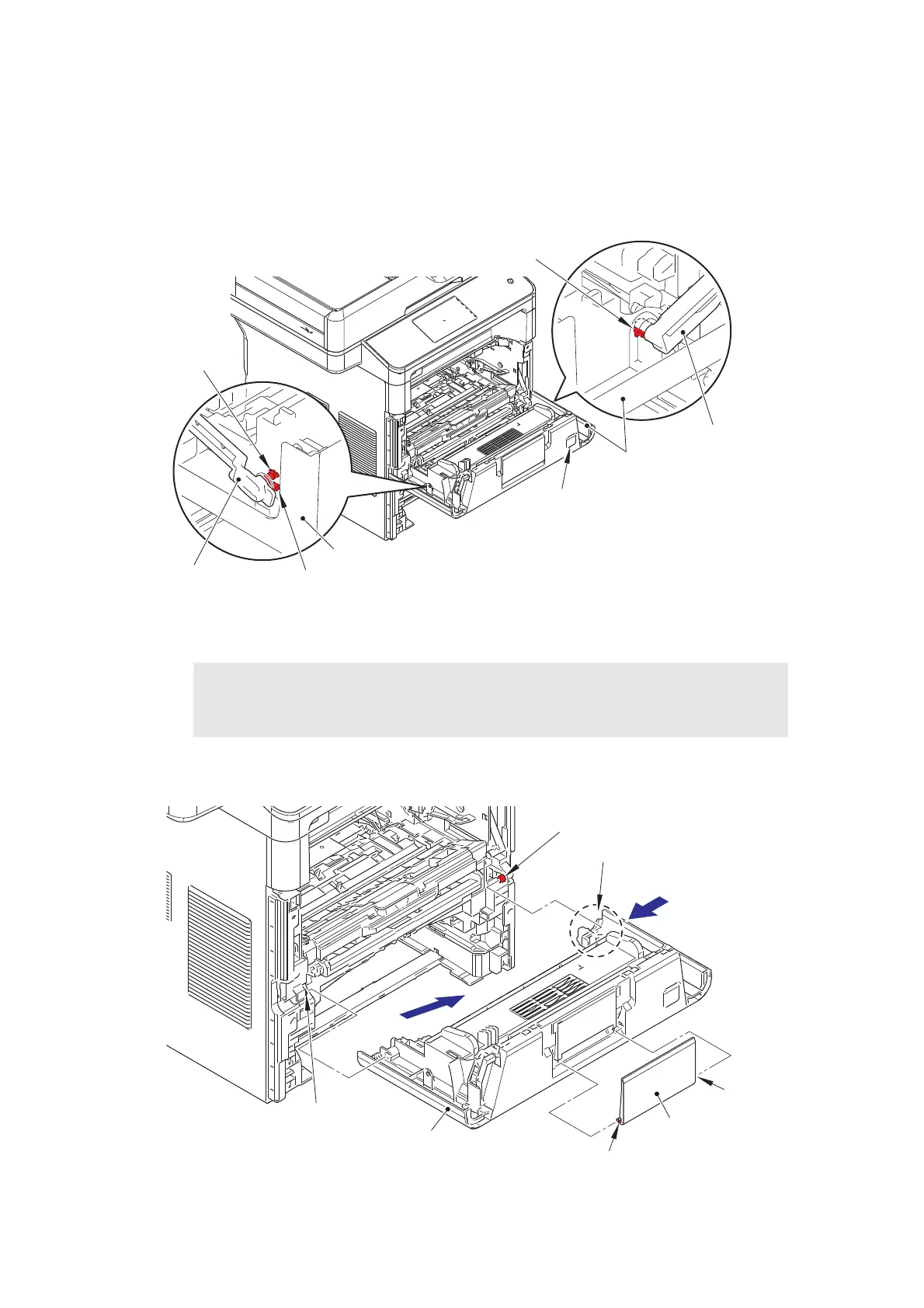

9.7 Front cover ASSY
(1) Push the front cover release button, and open the front cover.
(2) Release the two hooks, and remove the develop joint link from the front cover ASSY.
(3) Release the hook, and remove the nip release link from the front cover ASSY.
Fig. 3-26
(4) Remove the front cover ASSY from the two bosses.
(5) Remove the two bosses on the paper stopper, and remove the paper stopper from the
front cover ASSY.
Fig. 3-27
Note:
• When removing the front cover ASSY, push "A" on the front cover ASSY in the direction of
the arrow 4A, and slide the front cover ASSY in the direction of the arrow 4B to remove it.
Nip release link
Develop joint link
Front cover ASSY
Front cover
release button
Hook
Front cover ASSY
Hook
Hook
"A"
Boss
Boss
Front cover ASSY
4A
4B
Paper stopper
Boss
Boss

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
