3-119

Confidential

9.45 Registration front/rear sensor PCB ASSY

(1) Release the low-voltage power supply harness from the securing fixtures.

(2) Release the two hooks, and remove the paper feed frame from the feed chute.

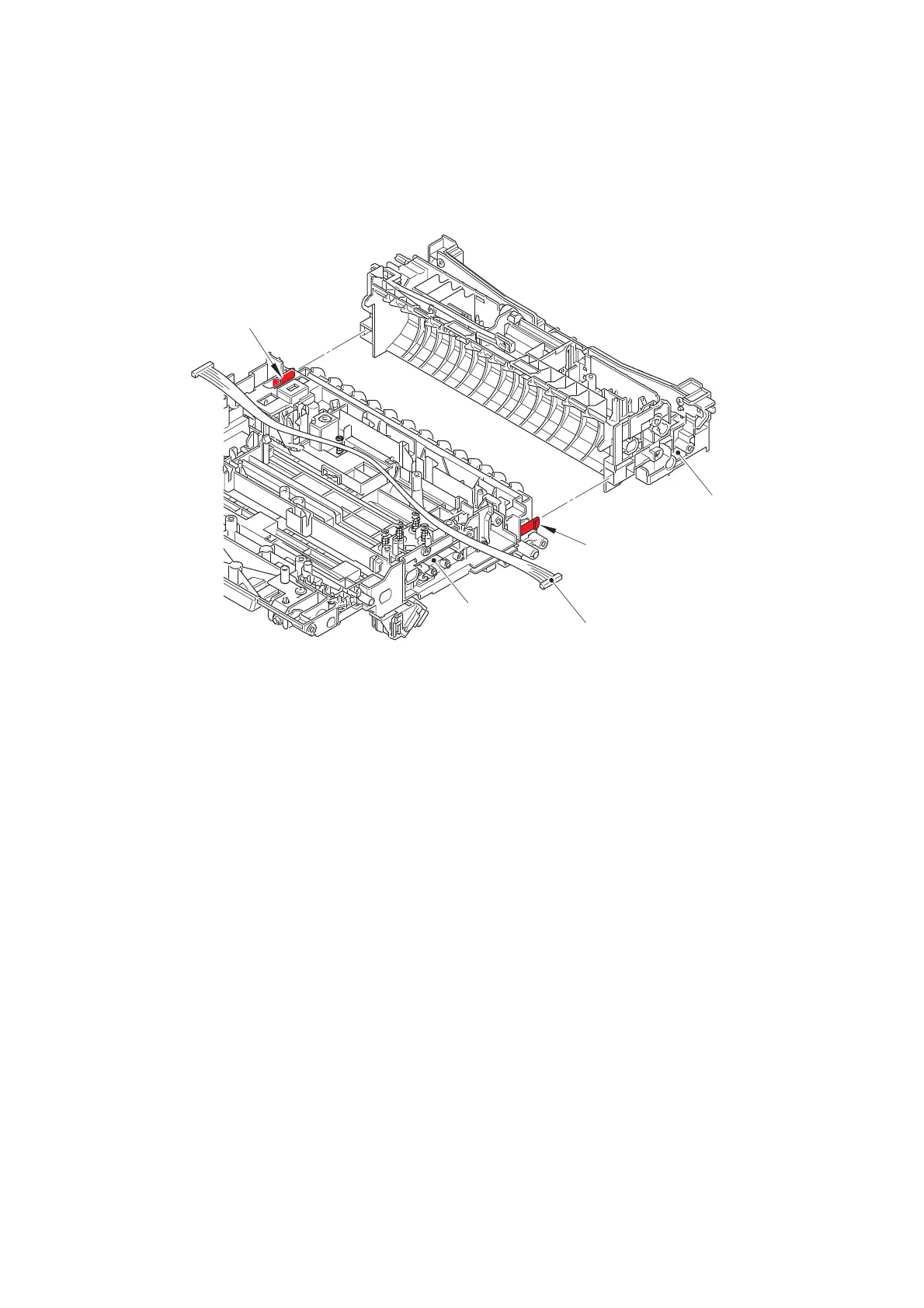

Fig. 3-120

Harness routing: Refer to “12. Bottom side of the machine”.

Paper feed frame

Hook

Low-voltage power supply harness

Feed chute

Hook
