Brother DCP-L5652DN Service Manual

3-74
Confidential
9.16 Modem PCB ASSY (Models with FAX only)
(1) Remove the two screw pan (S/P washer) M3.5X6 screws to remove the modem FG
harness L and the modem FG harness R. Release the modem FG harness L and the
modem FG harness R from the securing fixtures.
(2) Release the modem flat cable from the securing fixtures.
(3) Remove the two taptite bind B M4x12 screws, and remove the model shield plate from
the joint cover ASSY.
(4) Disconnect the modem flat cable from the modem PCB ASSY.
(5) Remove the screw pan (S/P washer) M3.5X6 screw to remove the modem shield cover
from the modem shield plate.
(6) Remove the two taptite cup S M3x6 SR screws to remove the modem PCB ASSY from
the modem shield plate.

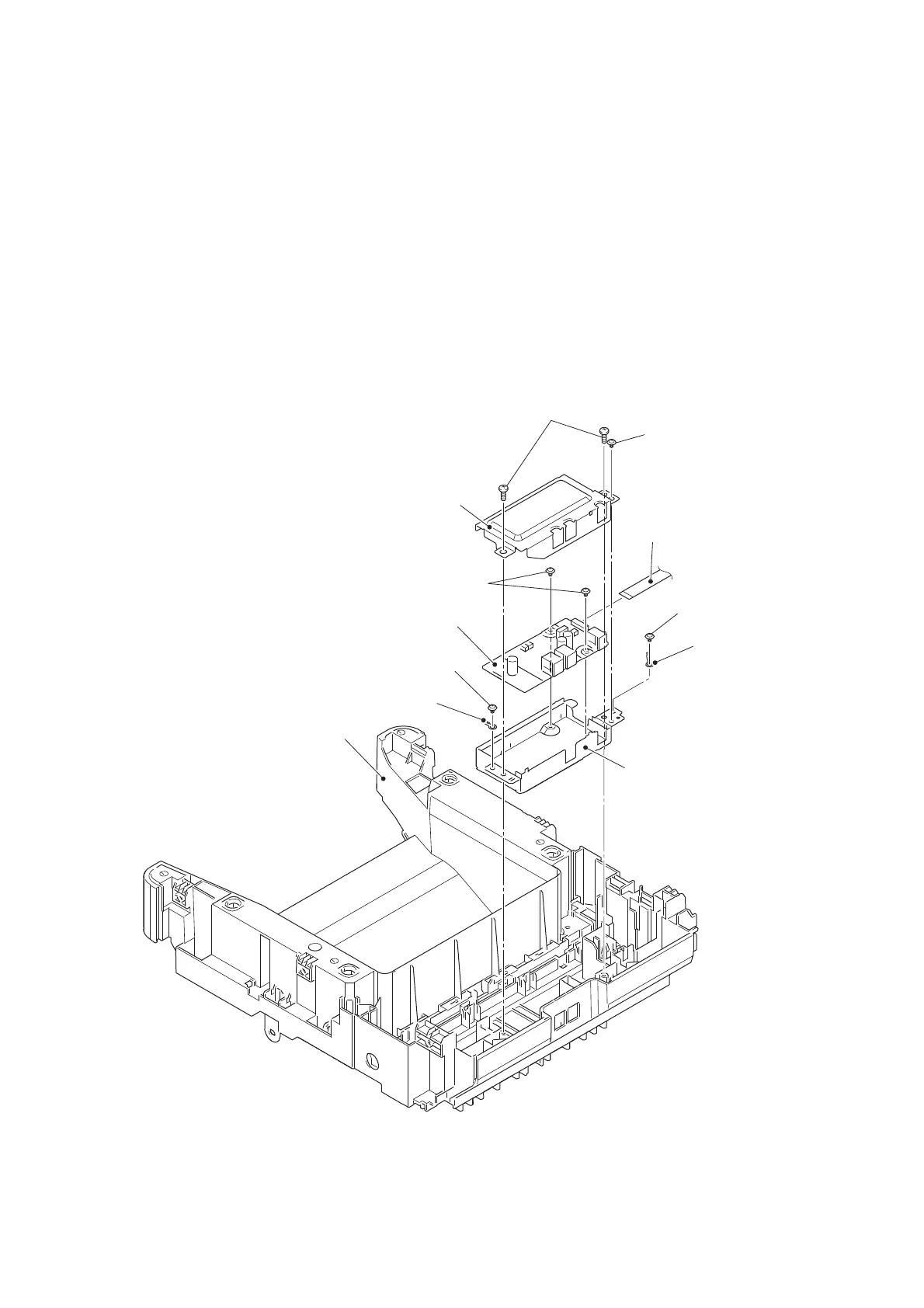

Fig. 3-72
Harness routing: Refer to “8. Speaker unit, Modem (Main PCB side)”, “9. Speaker unit,
Modem (LVPS side)”.
Joint cover ASSY
Modem shield cover
Screw pan (S/P
washer) M3.5X6
Taptite bind B M4x12
Taptite cup S M3x6 SR
Modem flat cable
Screw pan (S/P
washer) M3.5X6
Screw pan (S/P
washer) M3.5X6
Modem PCB ASSY
Modem FG harness R
Modem FG
harness L
Modem shield plate

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
