Brother DCP-L5652DN Service Manual

3-124
Confidential

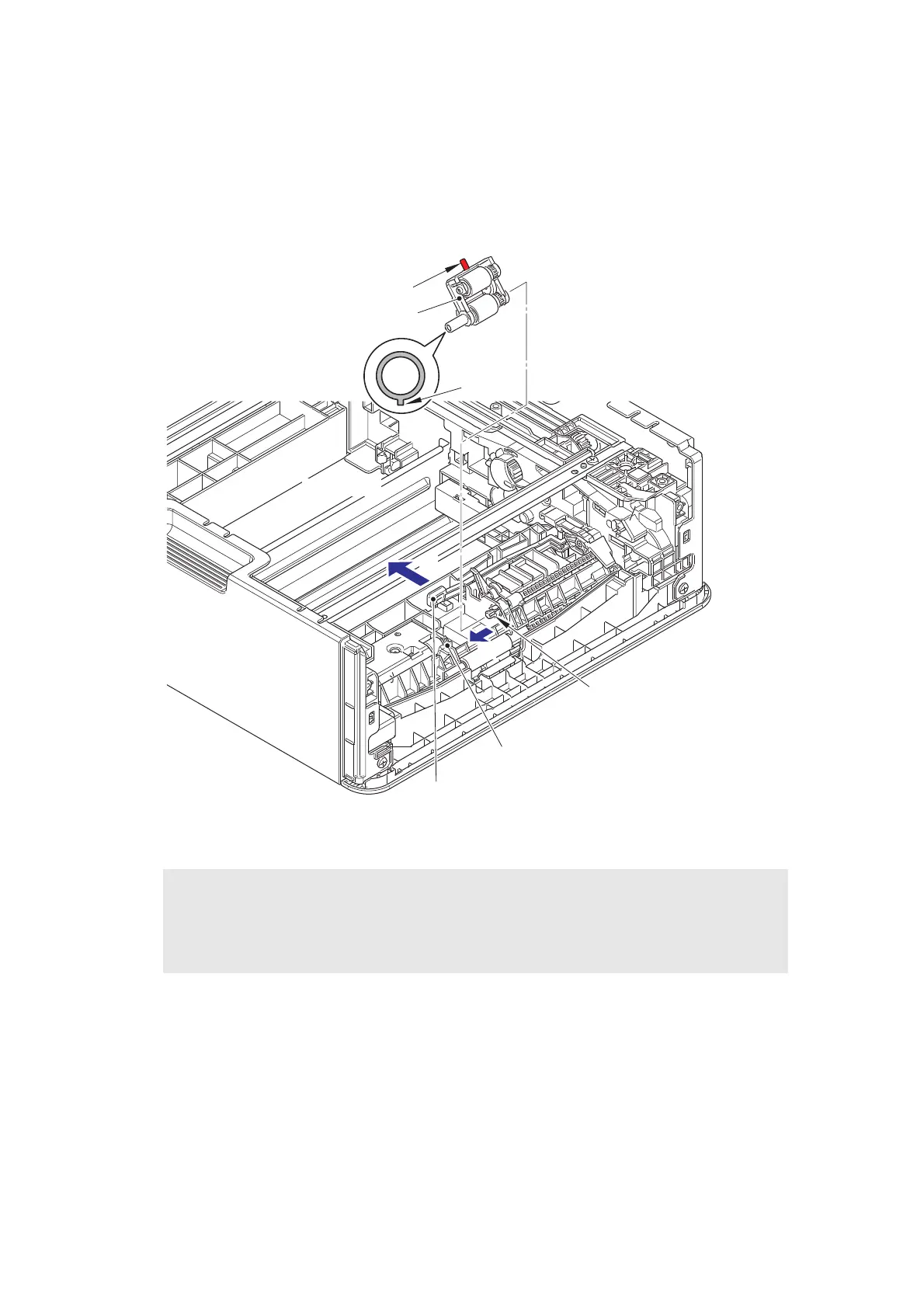

10.2 LT roller holder ASSY
(1) Push the link arm in the direction of the arrow A, and turn the LT roller holder ASSY to
remove the boss.
(2) Slide the LT roller holder ASSY in the direction of the arrow B to remove it from the shaft,
and remove the LT roller holder ASSY.
Fig. 3-125
Assembling Note:
• When attaching the LT roller holder ASSY, engage "A" on the shaft of the LT roller
holder ASSY with the hole on the LT paper feed frame ASSY, and insert the shaft into
the hole.
LT roller holder ASSY
Boss
Shaft
Link arm
A
B
<Front side>
<Back side>
"A"
LT paper feed frame ASSY

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
