Brother DCP-L5652DN Service Manual

3-86
Confidential
9.23 Toner amount detection sensor PCB ASSY
(light emission)
(1) Remove the LV shield plate ground spring from the LV shield plate and front chute.
 For models with 520-sheet T1
(2) Remove the taptite cup S M3x8 SR screw, and lift the under bar ground plate R from the
LV shield plate.
 For models with 250-sheet T1
(3) Remove the taptite cup S M3x8 SR screw, and lift the under bar front from the LV shield
plate.
 Common to all models
(4) Remove the taptite bind B M4x12 screw. Release the two hooks, and remove the LV
shield plate.

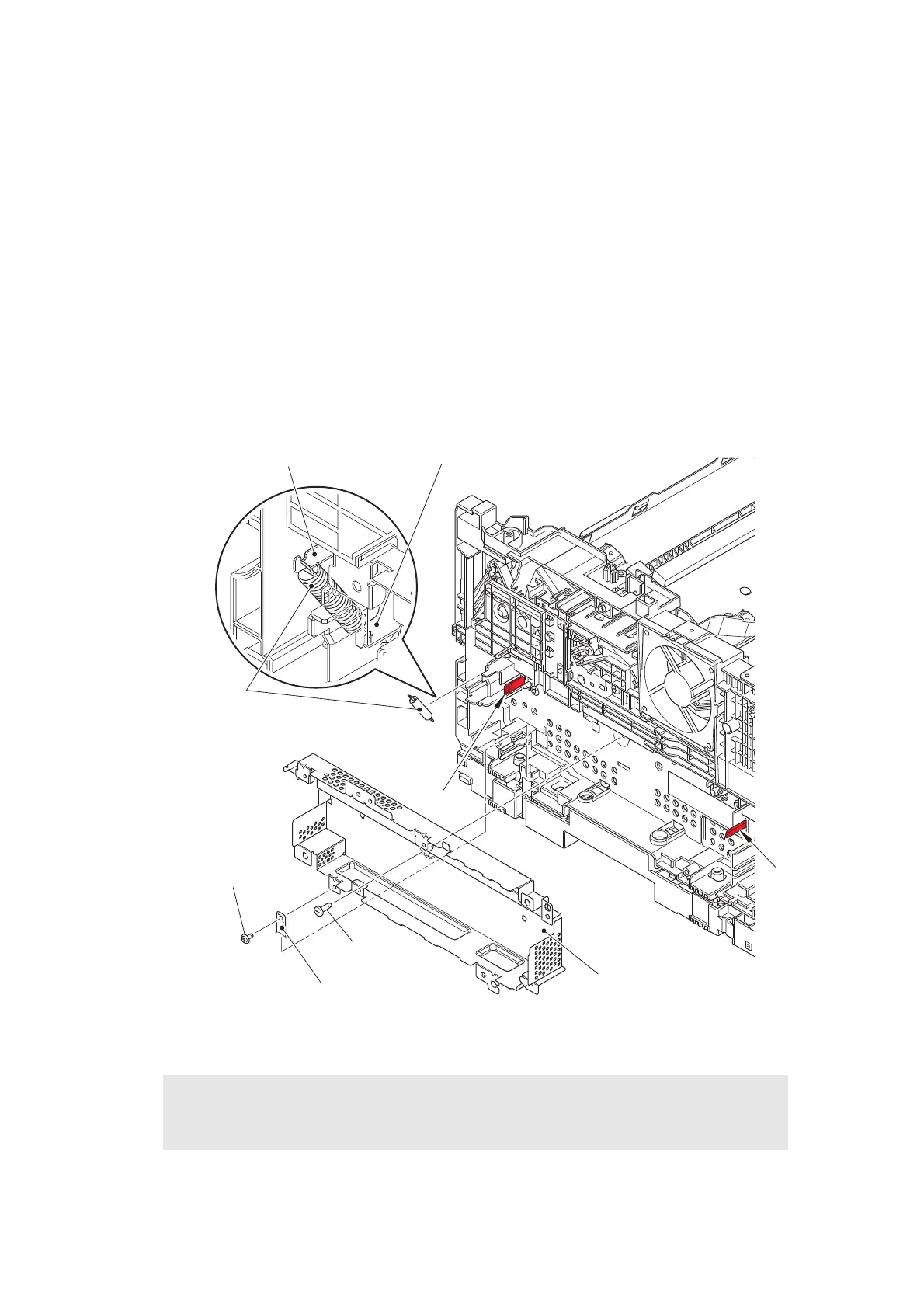

Fig. 3-86
Assembling Note:
• When attaching the LV shield plate, make sure that the under bar ground plate R or
under bar front is on the upper side of the LV shield plate.
LV shield plate
ground spring
Taptite cup S M3x8 SR
Taptite bind B
M4x12
Hook
LV shield plate
Hook
Under bar ground plate R
or Under bar front
LV shield plate
Front chute

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
