Brother DCP-L5652DN Service Manual

3-87
Confidential
(5) Remove the taptite bind B M4x12 screw. Release the hook and hold cover 1.
(6) Release the toner amount detection sensor PCB harness (light emission) from the
securing fixtures.
(7) Remove the taptite pan B M3x8 screw, and remove the pinch ground spring. Release
the hook, and remove the toner amount detection sensor PCB ASSY (light emission).
Pull out the main fan harness from the toner amount detection sensor PCB ASSY (light
emission).

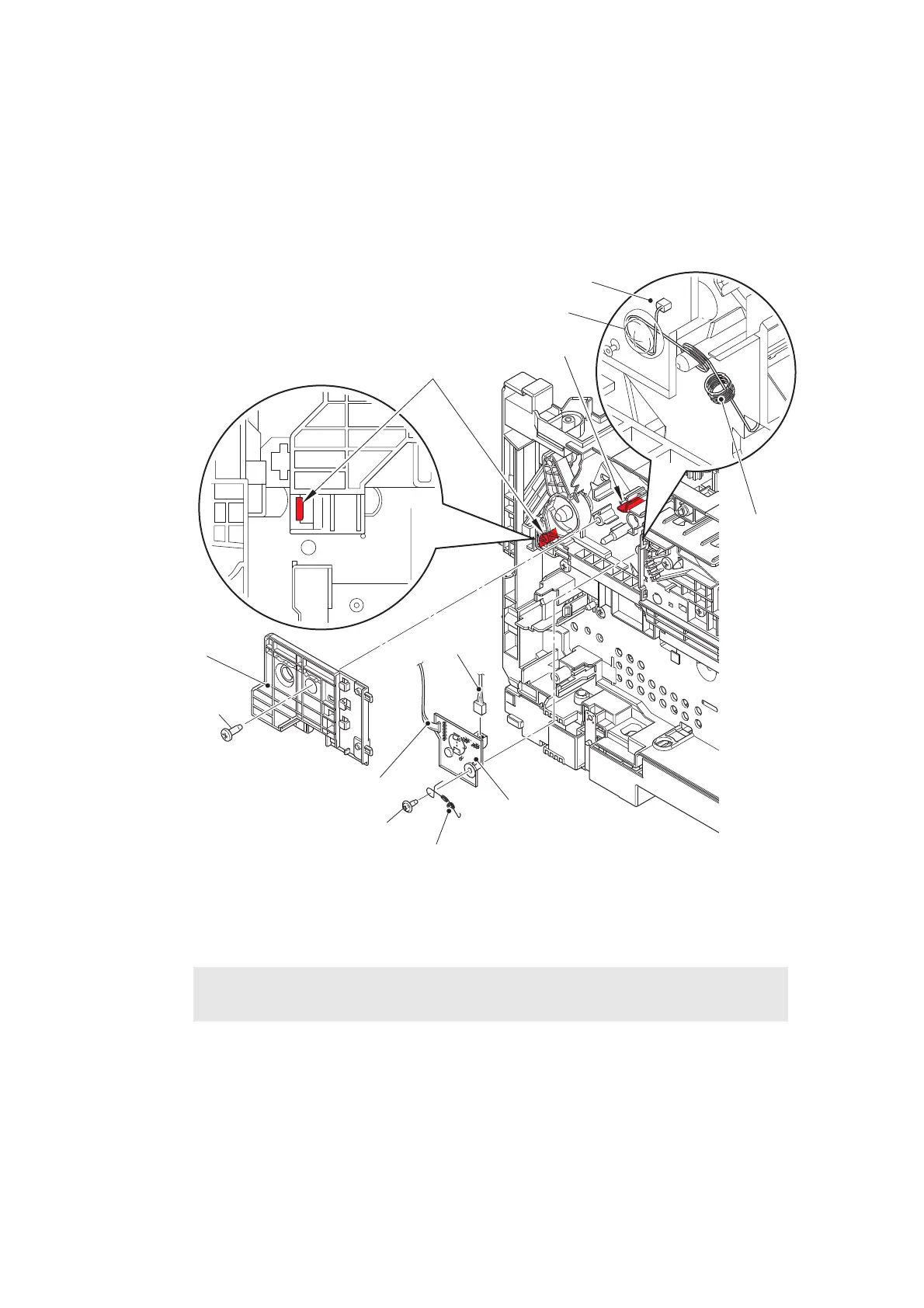

Fig. 3-87
Harness routing: Refer to “10. Left side of the machine”, “11. Rear side of the machine”.
Assembling Note:
• Hook the pinch ground spring at the position described in the figure above.
Pinch ground spring
Toner amount
detection sensor PCB
ASSY (light emission)
Hold cover 1
Taptite pan B M3x8
Hook
Taptite bind B M4x12
Main fan
harness
Toner amount detection sensor
PCB harness (light emission)
Hook
Toner amount detection sensor PCB ASSY (light emission)
Pinch ground
spring
Taptite pan B M3x8

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
