Brother DCP-L5652DN Service Manual

3-21
Confidential
11

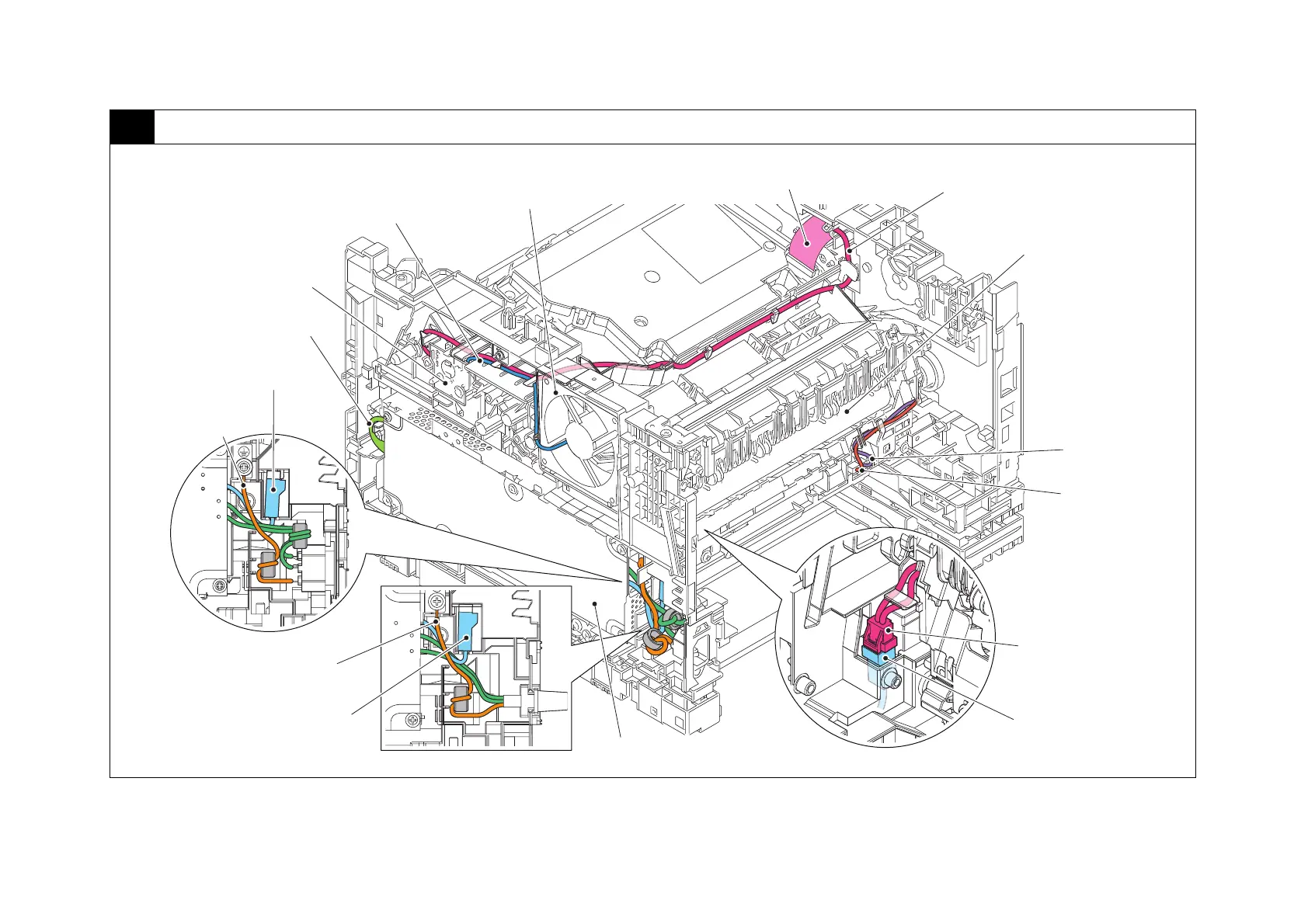

Rear side of the machine
Harness colors are subject to change for some reason.
Main fan harness (GY, BK, RD)
Main fan
Laser unit flat cable
Toner amount detection sensor PCB harness
(light emission) (BK, WH, GR, RD)
Fuser unit
Center thermistor
harness (BK)
Side thermistor
harness (WH)
Low-voltage heater harness
(WH, BK)
Heater harness (WH or BL)
Low-voltage power supply PCB ASSY
Ground harness
(Outside) (GR, YW)
Low-voltage heater harness
(Inside) (WH, BK)
Toner amount detection sensor
PCB ASSY (light emission)
Low-voltage power supply harness
(WH, BK)
Ground harness
(Outside) (GR, YW)
Low-voltage heater harness
(Inside) (WH, BK)
<For models with China>

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
