Brother DCP-L5652DN Service Manual

7-18
Confidential
2.5 PF kit 1
(1) Release the two hooks on the T1 separation pad ASSY from paper tray.
(2) Push both arms on the T1 separation pad ASSY inwards to remove both pins, and
remove the T1 separation pad ASSY from the paper tray.
(3) Remove the T1 separation pad spring from the T1 separation pad ASSY.

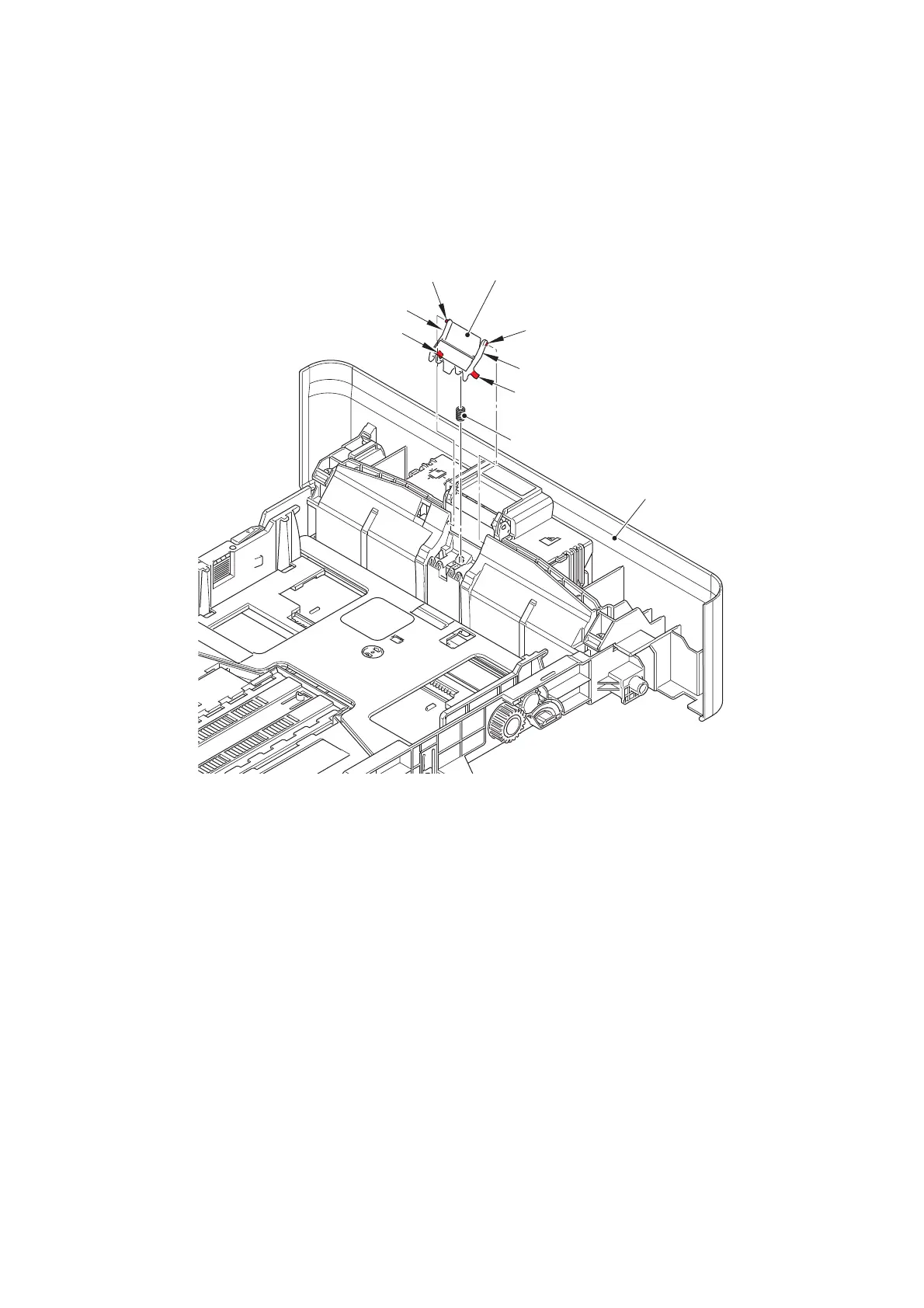

Fig. 7-21
T1 separation pad ASSY
Hook
Arm
T1 separation pad spring
Paper tray
Pin
Hook
Arm
Pin

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
